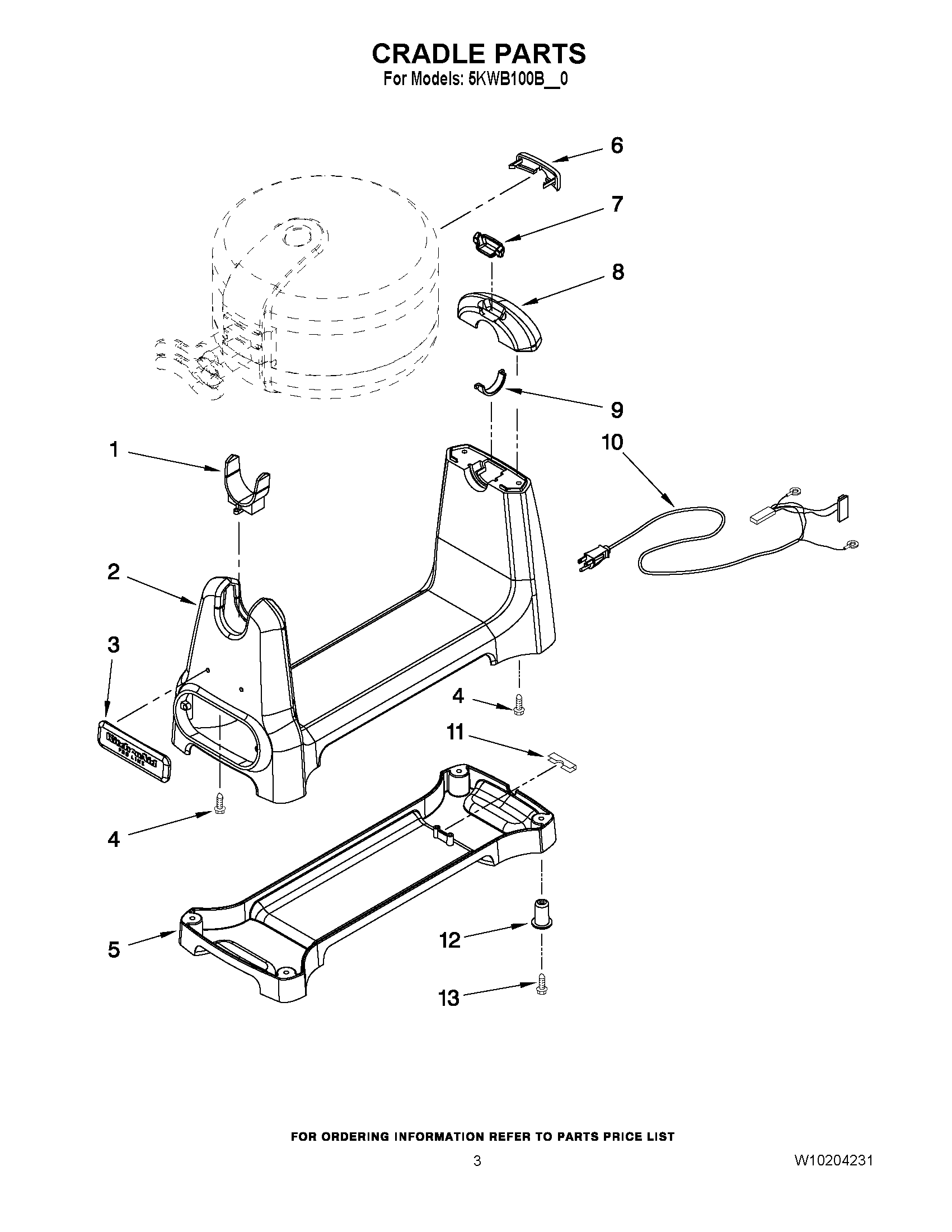

5KWB100BPM0 02 – CRADLE PARTS

Products

Position	Product
1	8211494 Whirlpool Bracket
2	Base (Pearl Metallic)
2	BASE (EMPIRE RED)
2	BASE (ALMOND CREME)
2	BASE (ONYX BLACK)
3	Nameplate, Artisan
4	SCREW
5	W10240856 Whirlpool Cover
6	COVER, SPRING
7	CLAMP
8	Cap (Pearl Metallic)
8	CAP (EMPIRE RED)
8	CAP (ALMOND CREME)
8	CAP (ONYX BLACK)
9	Holder, Axle
10	Cord, Power (Incl. Mov Board and PCB)
11	CLAMP, CORD
12	8211501 Whirlpool Foot Assembly
13	SCREW
