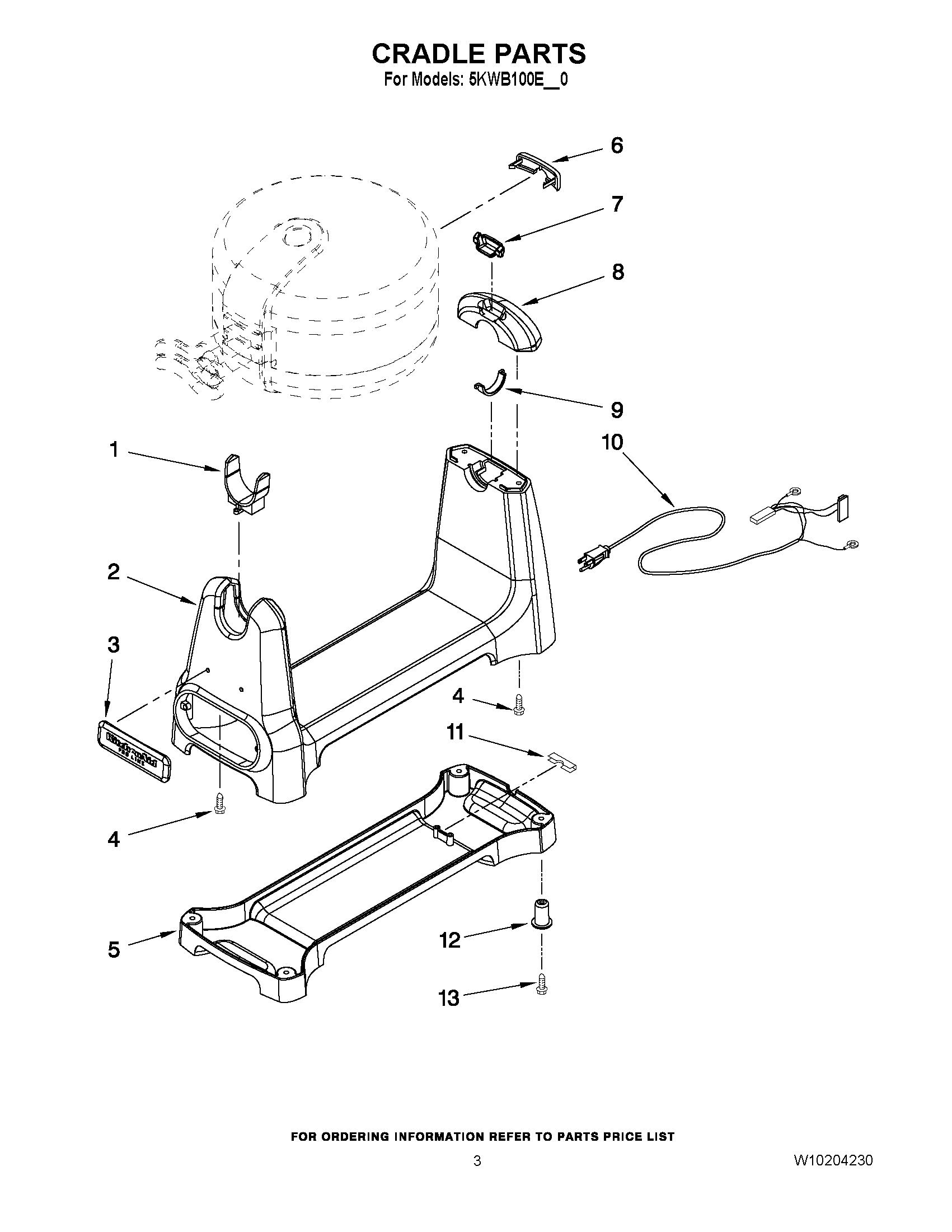

5KWB100EPM0 02 – CRADLE PARTS

Products

PositionProduct
18211494 Whirlpool Bracket
2Base (Pearl Metallic)
2BASE (EMPIRE RED)
2BASE (ALMOND CREME)
2BASE (ONYX BLACK)
3Nameplate, Artisan
4SCREW
5W10240856 Whirlpool Cover
6COVER, SPRING
7CLAMP
8Cap (Pearl Metallic)
8CAP (EMPIRE RED)
8CAP (ALMOND CREME)
8CAP (ONYX BLACK)
9Holder, Axle
10CORD, POWER (INCLUDES MOV BOARD AND PCB) (230V – EURPEAN)
11CLAMP, CORD
128211501 Whirlpool Foot Assembly
13SCREW
