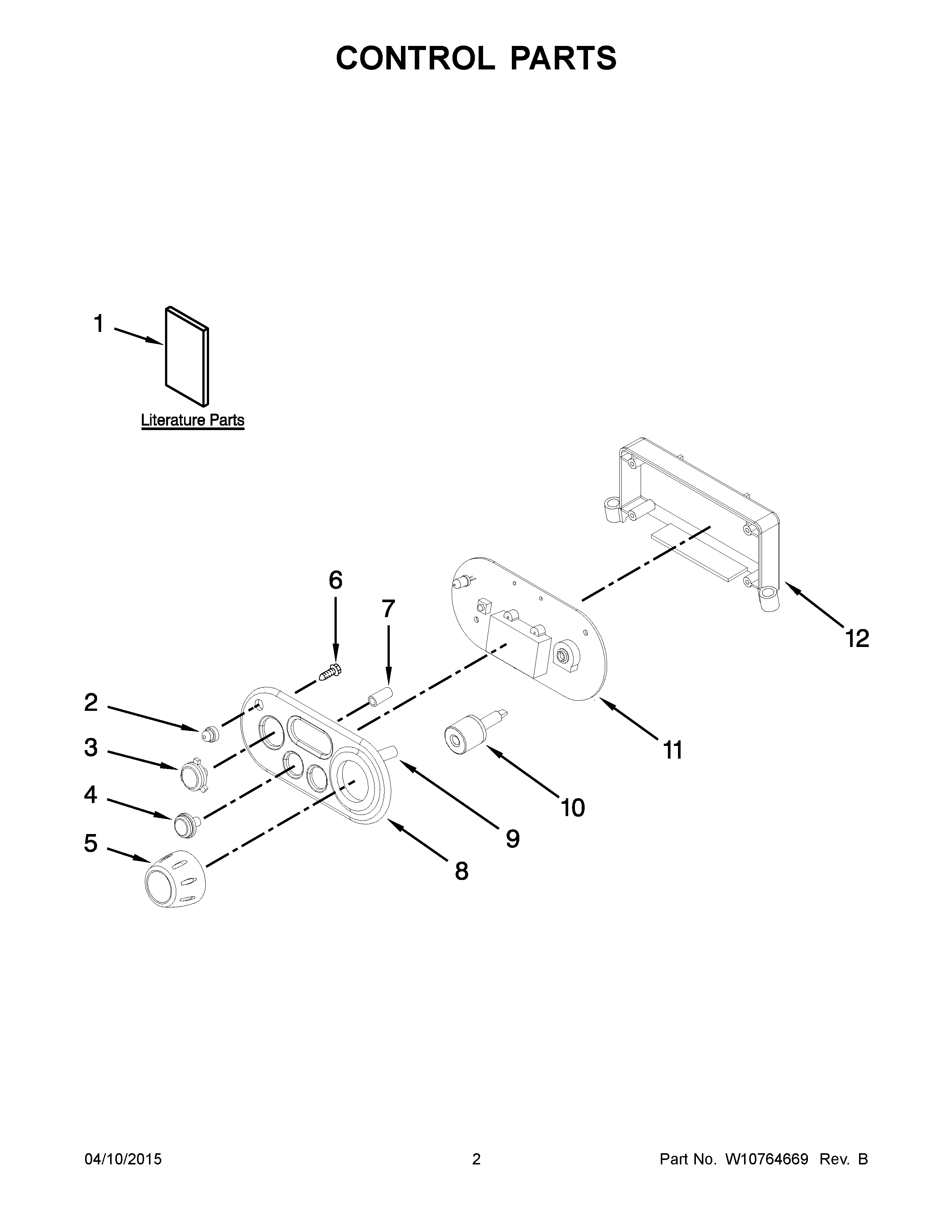

5KWB110EER0 02 – CONTROL PARTS

Products

PositionProduct
1GUIDE, USE & CARE
2LENS, LED
38211487 Whirlpool Button
3ABUTTON, POWER (EUROPEAN)
4BUTTON, START (US)
4ABUTTON, START (EUROPEAN)
5KNOB
6SCREW
78211508 Whirlpool Cover
88211488 Whirlpool Bezel
9SPRING
10BRACKET, KNOB
11MCU PCB ASSEMBLY (120V – US)
11AMCU PCB ASSEMBLY (230V – EUROPEAN)
12HOLDER, PCB
