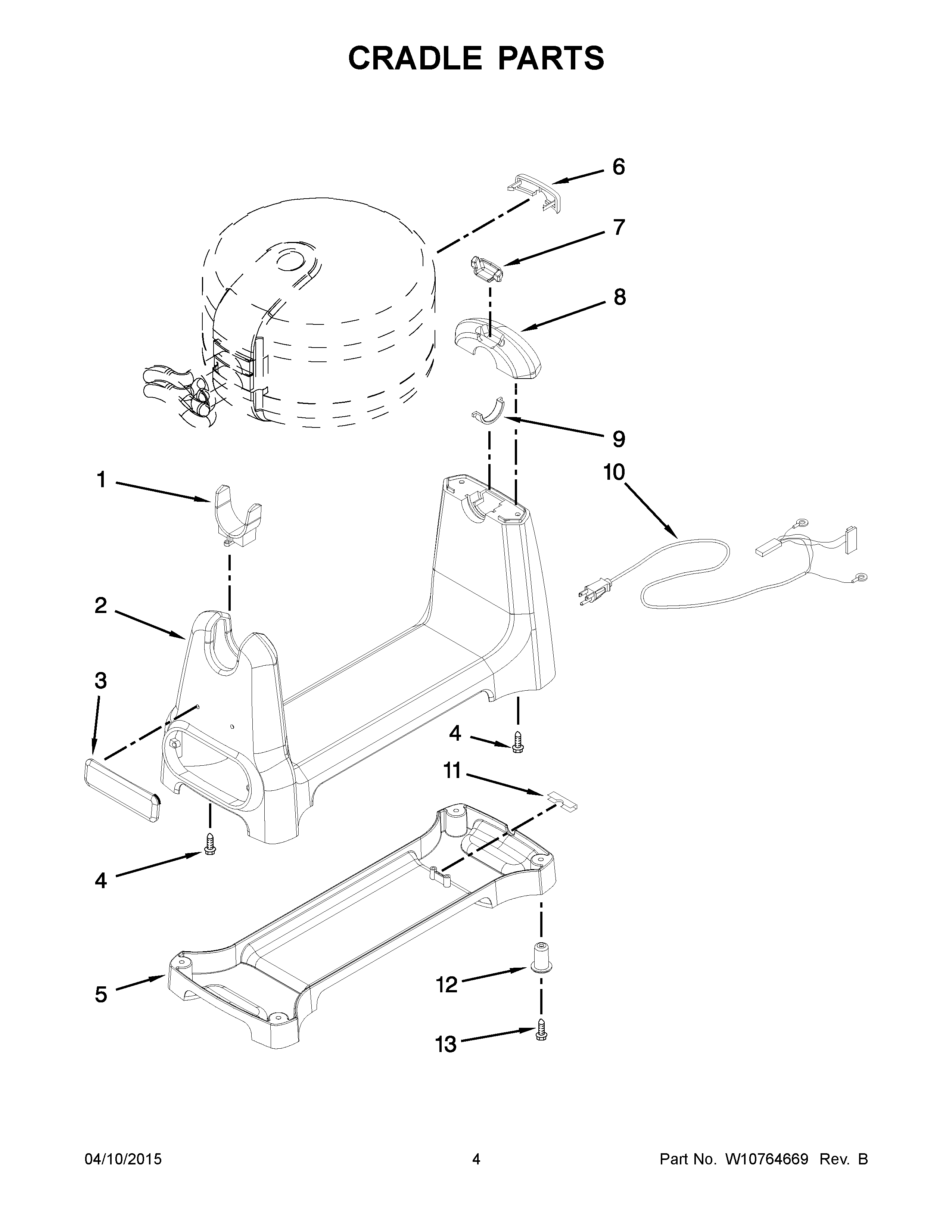

5KWB110EMS0 03 – CRADLE PARTS

5KWB110EMS0 03 – CRADLE PARTS

Written by

in

5KWB110EMS0 03 – CRADLE PARTS

Products

PositionProduct
18211494 Whirlpool Bracket
2BASE (ONYX BLACK)
2ABASE (ALMOND CREME)
2BBASE (EMPIRE RED)
2CBASE (MEDALLION SILVER)
3NAMEPLATE
4SCREW
5W10240856 Whirlpool Cover
6COVER, SPRING
7CLAMP
8CCAP (MEDALLION SILVER)
8BCAP (EMPIRE RED)
8ACAP (ALMOND CREME)
8CAP (ONYX BLACK)
9HOLDER, AXLE
10CORD, POWER (INCLUDES MOV BOARD AND PCB) (120V – US)
10ACORD, POWER (INCLUDES MOV BOARD AND PCB) (230V – EURPEAN)
11CLAMP, CORD
128211501 Whirlpool Foot Assembly
13SCREW
