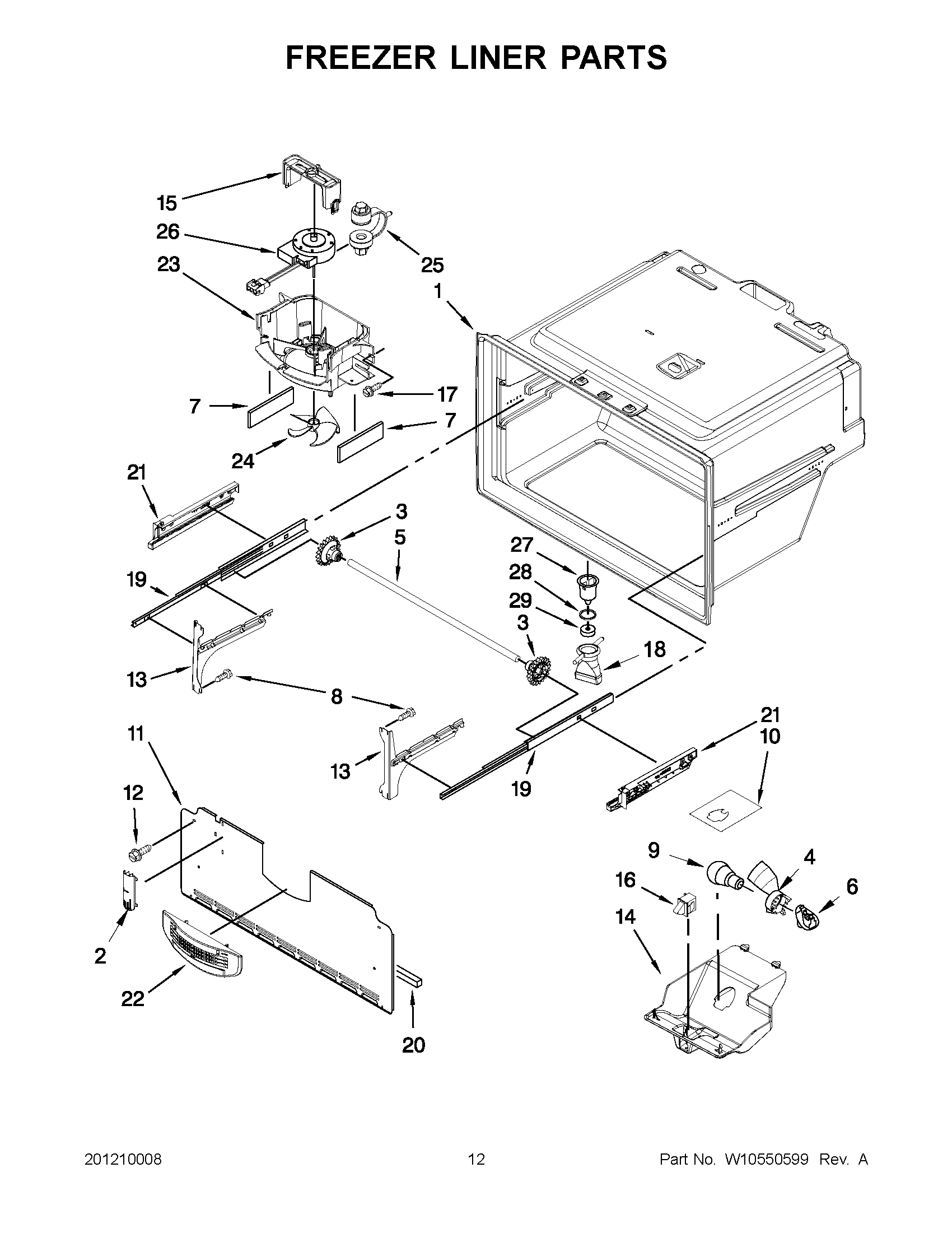

5MFI267AA000 06 – FREEZER LINER PARTS

5MFI267AA000 06 – FREEZER LINER PARTS

Written by

in

5MFI267AA000 06 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 12815301
312002497 Whirlpool Refrigerator Drawer Gear Kit
4SHROUD-LGHT SOCKET
5SHAFT
6MAY W10134764
7Gasket, Bottom
8Screw (8)
9MAY A0282808
10FOIL-FZ LIGHT
11COVER, EVAP
12SCREW (10)
13MAY W10330991
13MAY W10330993
14MODULE, FREEZER LIGHT
15MAY 12956601
16MAY 12466115SP
17MAY 12990504
18MAY W10309238
19SLIDE, DRAWER (2)
20Gasket, Bottom
21MAY W10284683
21MAY W10284682
22MAY 12959901
23Shroud, Evap Fan
24Blade, Fan (Evaporator)
25Grommet, Fan Motor (2)
26MAY W10459645
27MAY D7753903
28MAY M0500703
29Gasket
