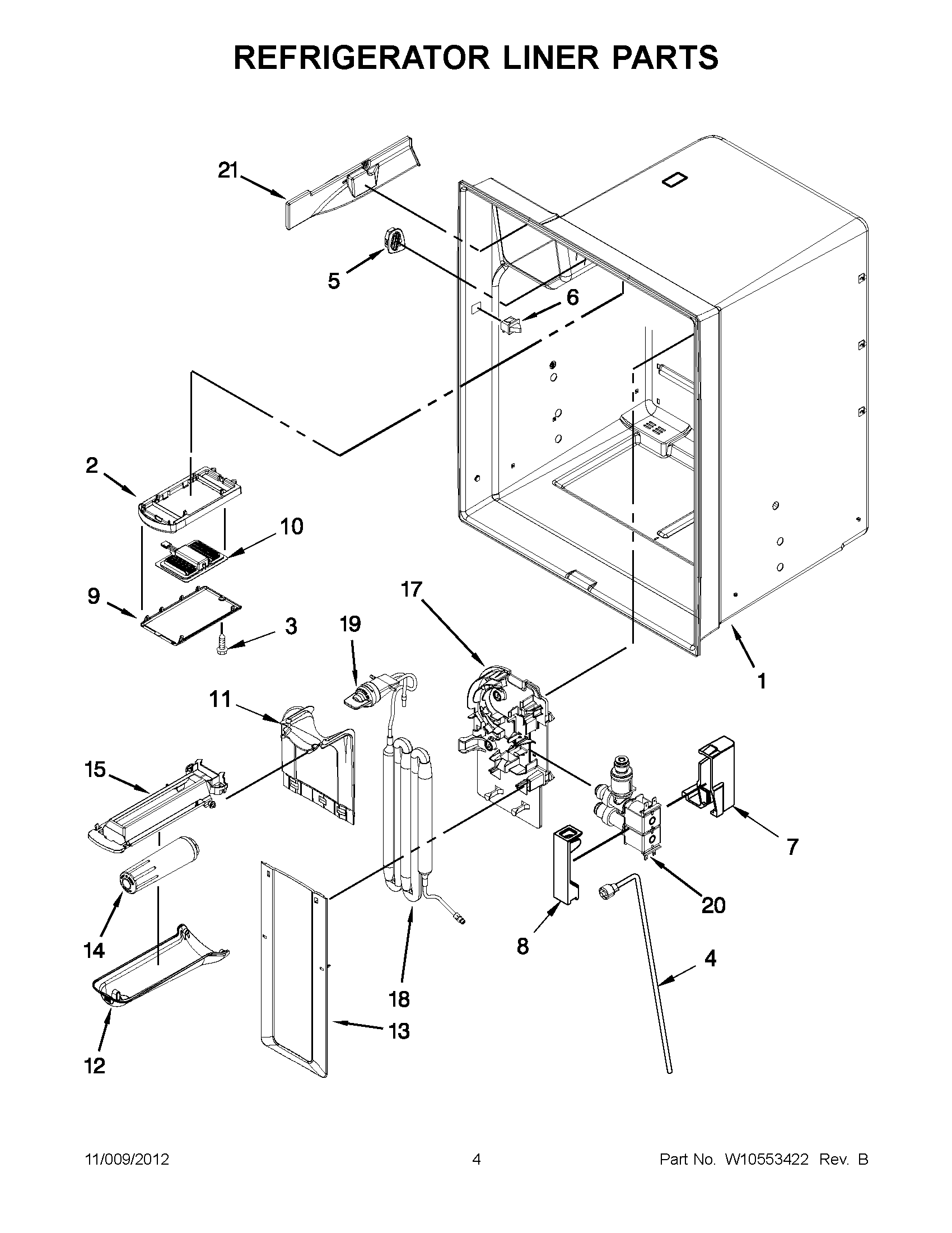

5MFX257AA000 02 – REFRIGERATOR LINER PARTS

5MFX257AA000 02 – REFRIGERATOR LINER PARTS

Written by

in

5MFX257AA000 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	HOUSING-RC-LED
3	SCREW (STAINLESS)
4	MAY W10444033
5	MAY W10396902
6	MAY 12466114
7	MAY W10118193
8	MAY W10118194
9	LENS, RC LED
10	MODULE, MAIN LED
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY 4396395
15	MAY 12955901
17	BRACKET, WATER TANK AND VALVE
18	MAY W10418477
19	MAY 12664501SP
20	MAY W10464773
21	MAY W10309869
