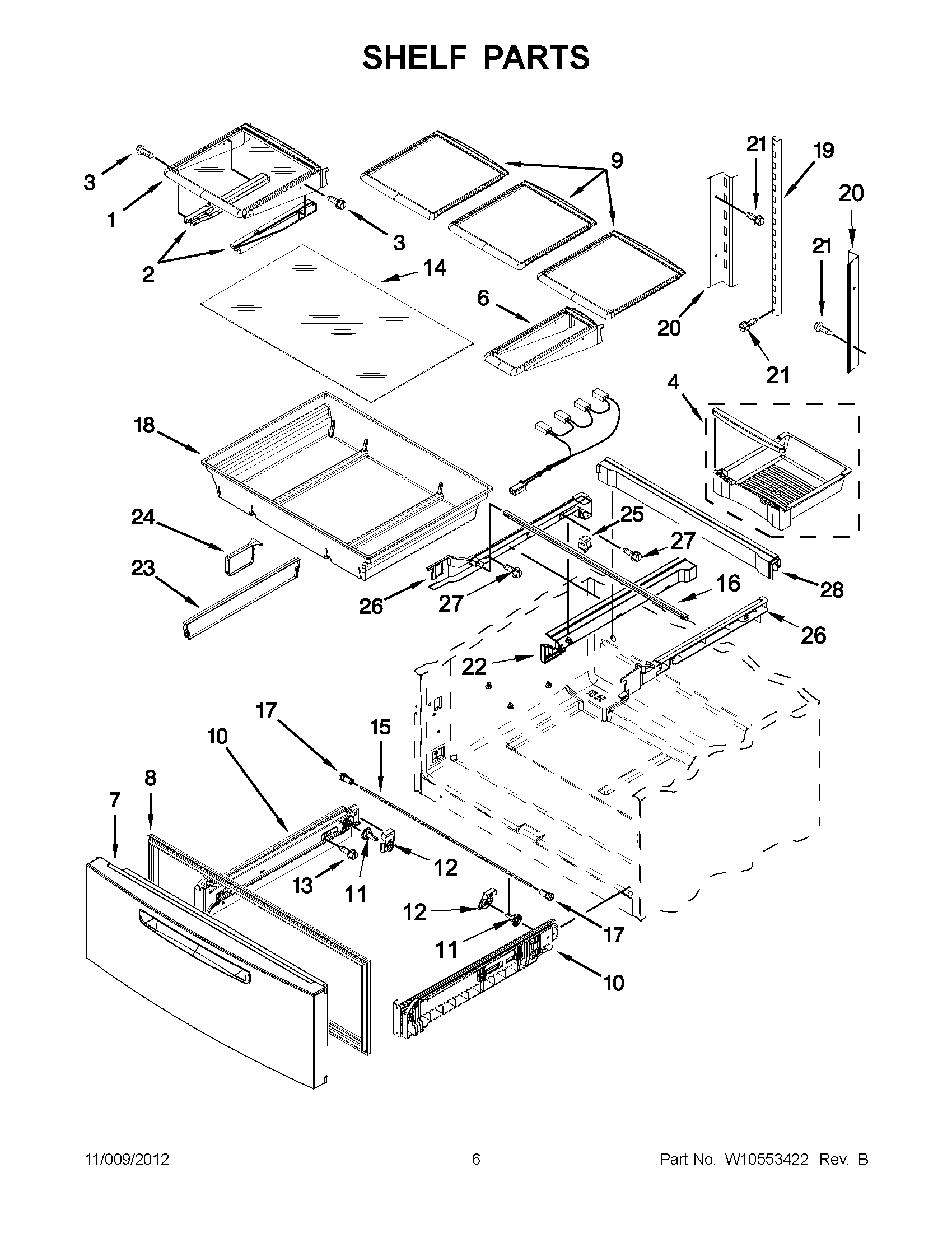

5MFX257AA000 03 – SHELF PARTS

5MFX257AA000 03 – SHELF PARTS

Written by

in

5MFX257AA000 03 – SHELF PARTS

Products

PositionProduct
1SHELF-GLIDE
2GLIDE SNACK PAN-RH
2GLIDE SNACK PAN-LH
3SCREW
4PAN, SNACK
5HARNESS, RC-LED
6SHELF-MINI
7MAY 13107114F
8GASKET-PANTRY (GREY)
9SHELF, GLIDE
10ADAPTER-PANTRY (LEFT)
10ADAPTER-PANTRY (RIGHT)
11GEAR, SPUR
12COVER, GEAR (LEFT HAND)
12COVER, GEAR (RIGHT HAND)
13SCREW
14GLASS, PANTRY SHELF
15SHAFT, RACK
16MAY 12227305WD
17COLLAR, GEAR
18PAN-PANTRY-PO
19MAY W10273464
20LADDER, SIDE RH
20MAY W10251968
21MAY 12990513
22COVER, PANTRY RAIL (LEFT HAND)
23DIVIDER-PANTRY-LRG
24GRIPPER, PANTRY
25SWITCH, LIGHT
26RAIL, PANTRY (RIGHT HAND)
26RAIL, PANTRY (LEFT HAND)
27Screw (8)
28RAIL, REAR PANTRY
