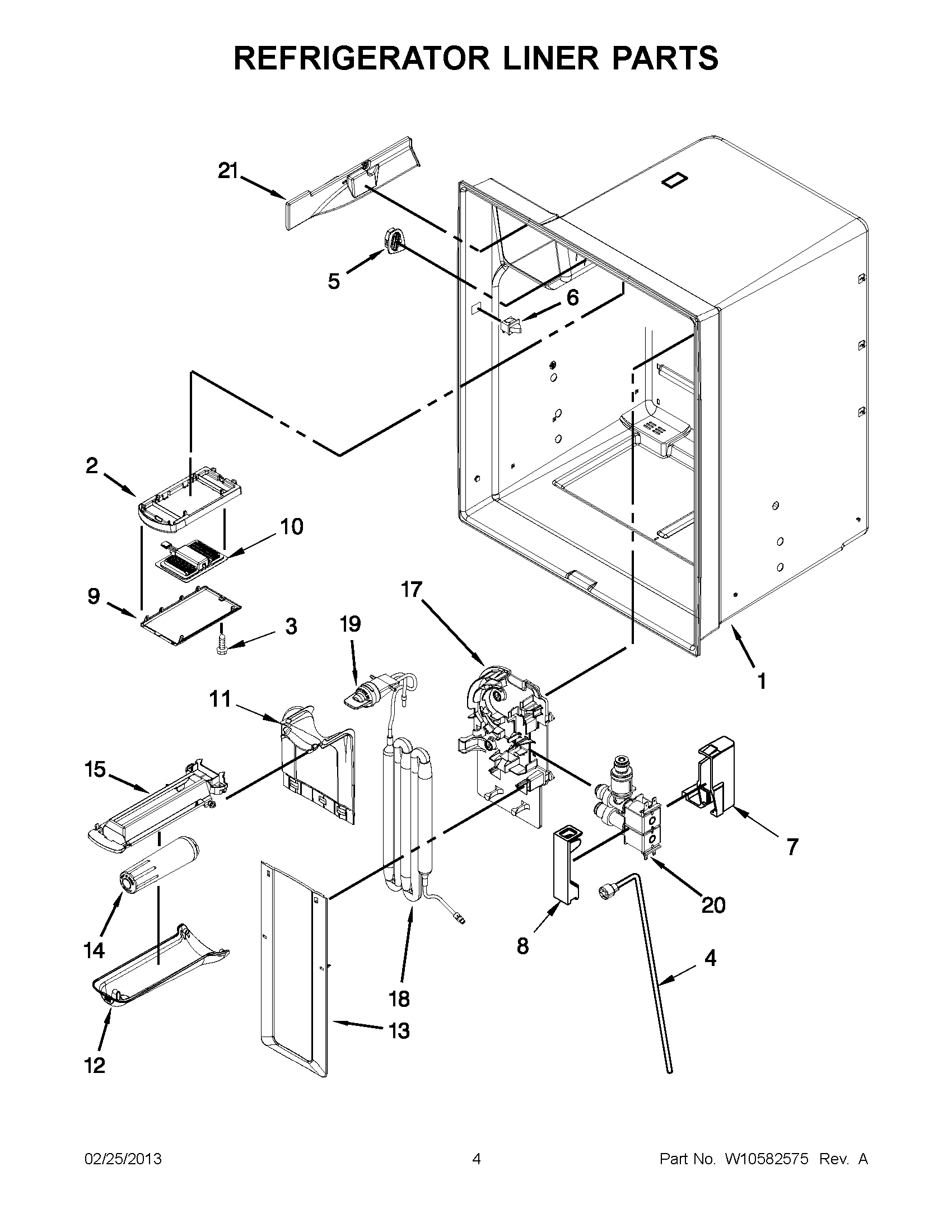

5MFX257AA001 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2HOUSING-RC-LED
3SCREW (STAINLESS)
4MAY W10444033
5ASSEMBLY, AIR GRILLE
6MAY 12466114
7MAY W10118193
8MAY W10118194
9LENS, RC LED
10MODULE, MAIN LED
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY 13040214
15MAY 12955901
17BRACKET, WATER TANK AND VALVE
18MAY W10418477
19MAY 12664501SP
20MAY W10464773
21MAY W10309869
