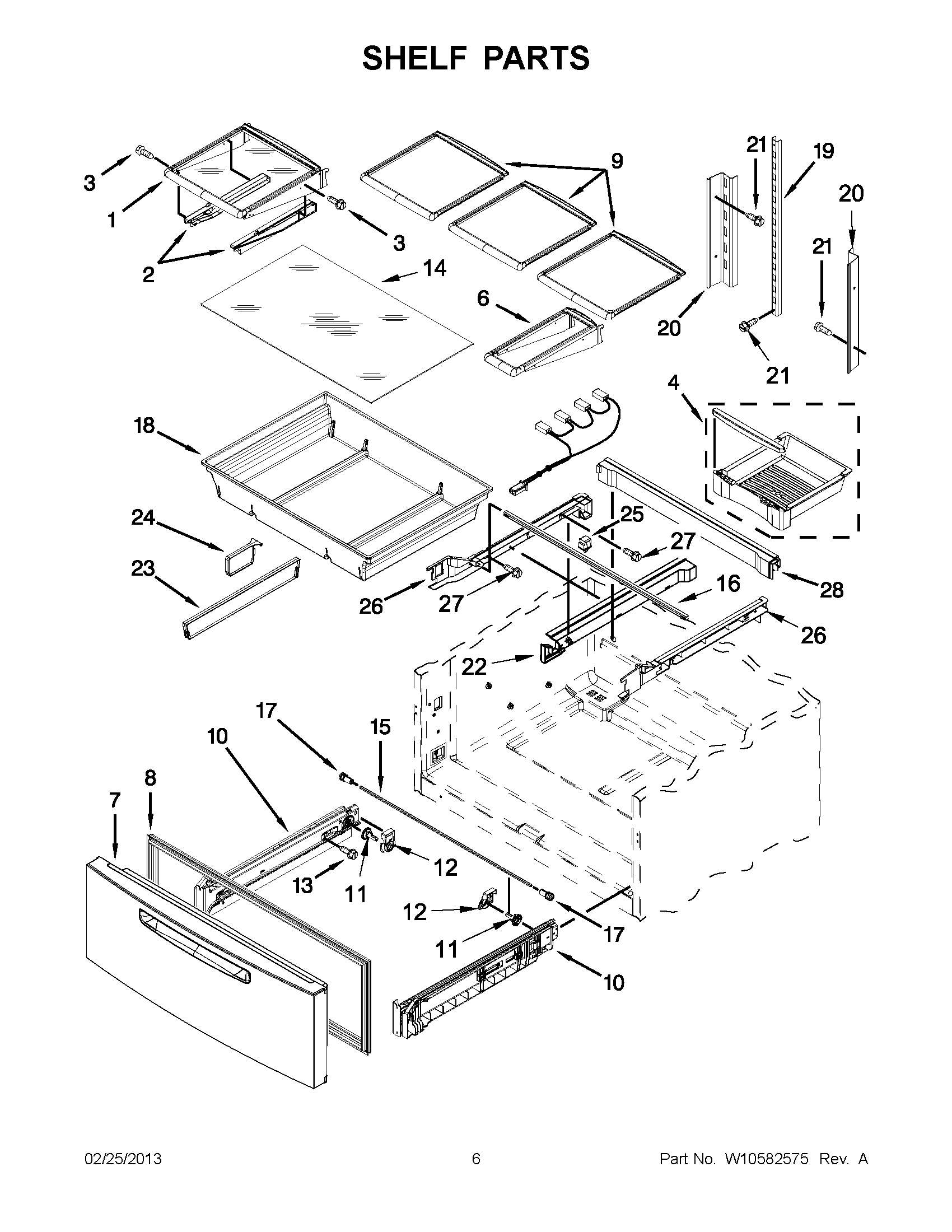

5MFX257AA001 03 – SHELF PARTS

5MFX257AA001 03 – SHELF PARTS

Written by

in

5MFX257AA001 03 – SHELF PARTS

Products

PositionProduct
1SHELF-GLIDE
2GLIDE SNACK PAN-RH
2GLIDE SNACK PAN-LH
3SCREW
4PAN, SNACK
5HARNESS, RC-LED
6SHELF-MINI
7MAY 13107114F
8GASKET-PANTRY (GREY)
9SHELF, GLIDE
10ADAPTER, PANTRY (LEFT HAND)
10ADAPTER, PANTRY (RIGHT HAND)
11GEAR, SPUR
12COVER, GEAR (RIGHT HAND)
12COVER, GEAR (LEFT HAND)
13SCREW
14GLASS, PANTRY SHELF
15SHAFT, RACK
16MAY 12227305WD
17COLLAR, GEAR
18MAY W10563110
19MAY W10273464
20MAY W10251968
20LADDER, SIDE RH
21MAY 12990513
22COVER, PANTRY RAIL (LEFT HAND)
23DIVIDER-PANTRY-LRG
24GRIPPER, PANTRY
25SWITCH, LIGHT
26RAIL, PANTRY (RIGHT HAND)
26RAIL, PANTRY (LEFT HAND)
27Screw (8)
28RAIL, REAR PANTRY
