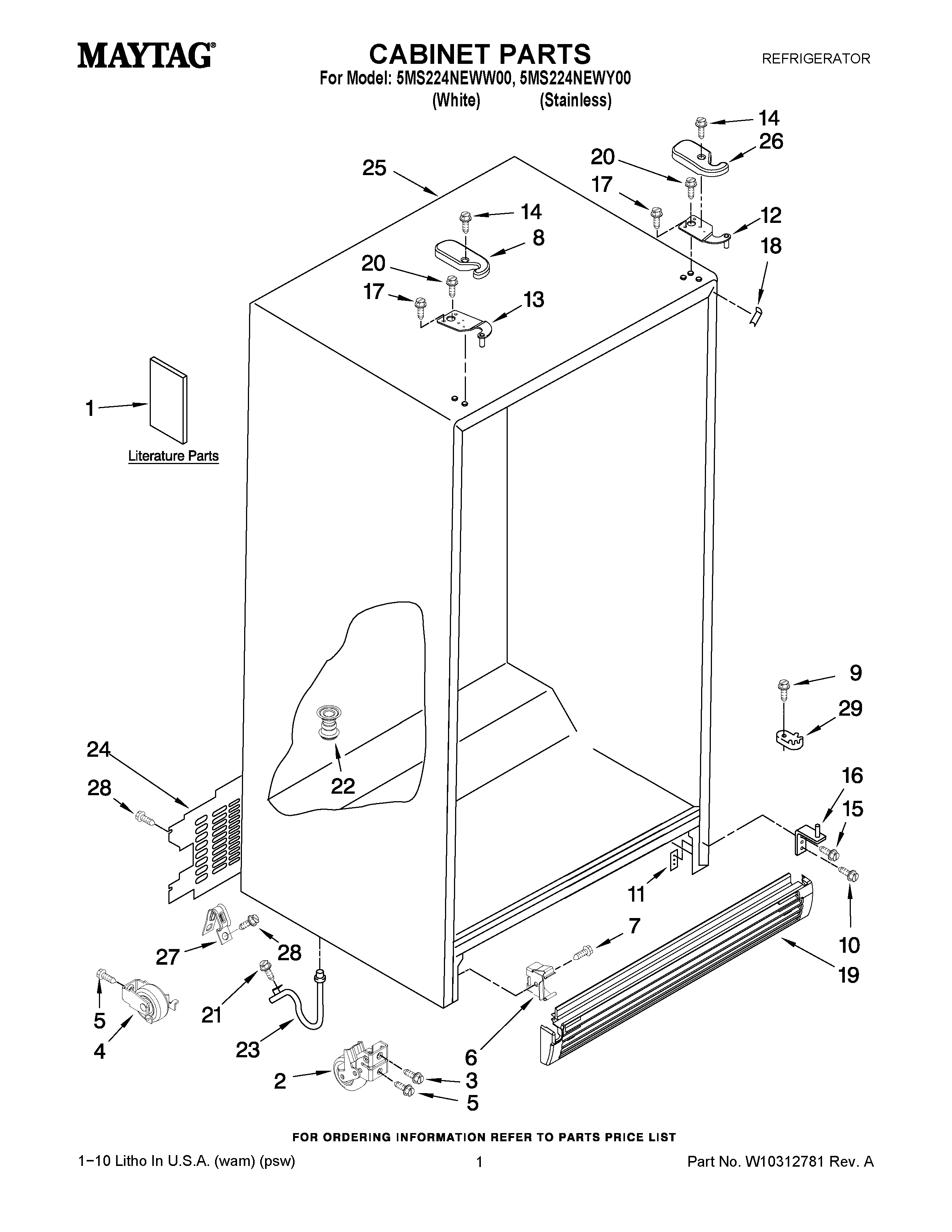

5MS224NEWW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10217561
1	MAY W10167125
1	MAY W10142192
2	MAY 2174748
3	MAY 3400517
4	MAY W10250570
5	MAY 489427
6	MAY 2155013
7	MAY 488500
8	Hinge Cover (RC) (White)
8	COVER, HINGE (FREEZER) (GREY)
9	MAY 489483
10	MAY 3400103
11	MAY 2304249
12	HINGE TOP RC
13	HINGE TOP, FC
14	MAY 8281227
15	Screw (4)
16	HINGE BOTTOM (2)
17	MAY 3400858
18	CORNER FILLER (WHITE)
18	FILLER, CORNER (GREY)
19	GRILLE
19	MAY W10283945
20	MAY 489497
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	COVER-UNIT
25	LINER (NOT A SERVICEABLE PART)
26	COVER, HINGE (REFRIGERATOR) (GREY)
26	Hinge Cover (FC) (White)
27	MAY 489348
28	MAY 489084
29	MAY 2155311
