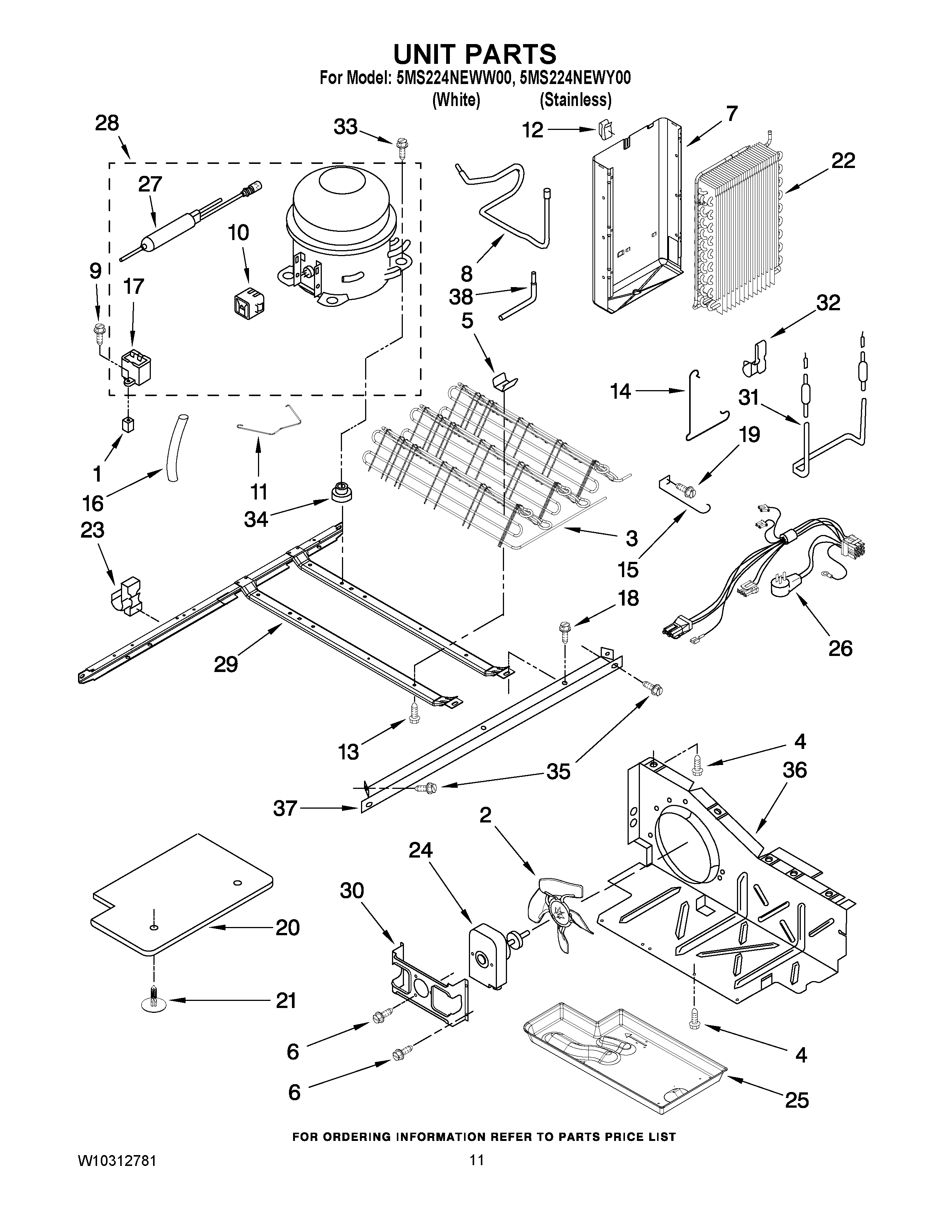

5MS224NEWW00 08 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 509812
2	MAY 2225834
3	Condenser Assembly (Also Order 1)
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
8	Tube Suction
9	MAY 488687
10	START DEVICE
11	STRAP, BALE
12	MAY 2155547
13	MAY 8281232
15	GUARD-FAN
16	Sleeve, Pressure Switch Hose
17	CAPACITOR
17	MAY 2254217
18	MAY 489427
19	MAY 489478
20	UNIT COVER BOTTOM
21	MAY 489396
22	MAY 2188822
23	Clip, Wire
24	MOTOR, CONDENSER
25	MAY 1105523
26	MAY W10129772
27	Drier
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	Frame, Unit Mounting
30	MAY 2181929
31	MAY W10123612
32	Clip
33	MAY 489373
34	Grommet (Production)
35	MAY 489340
36	MAY W10163483
37	MAY W10196323
