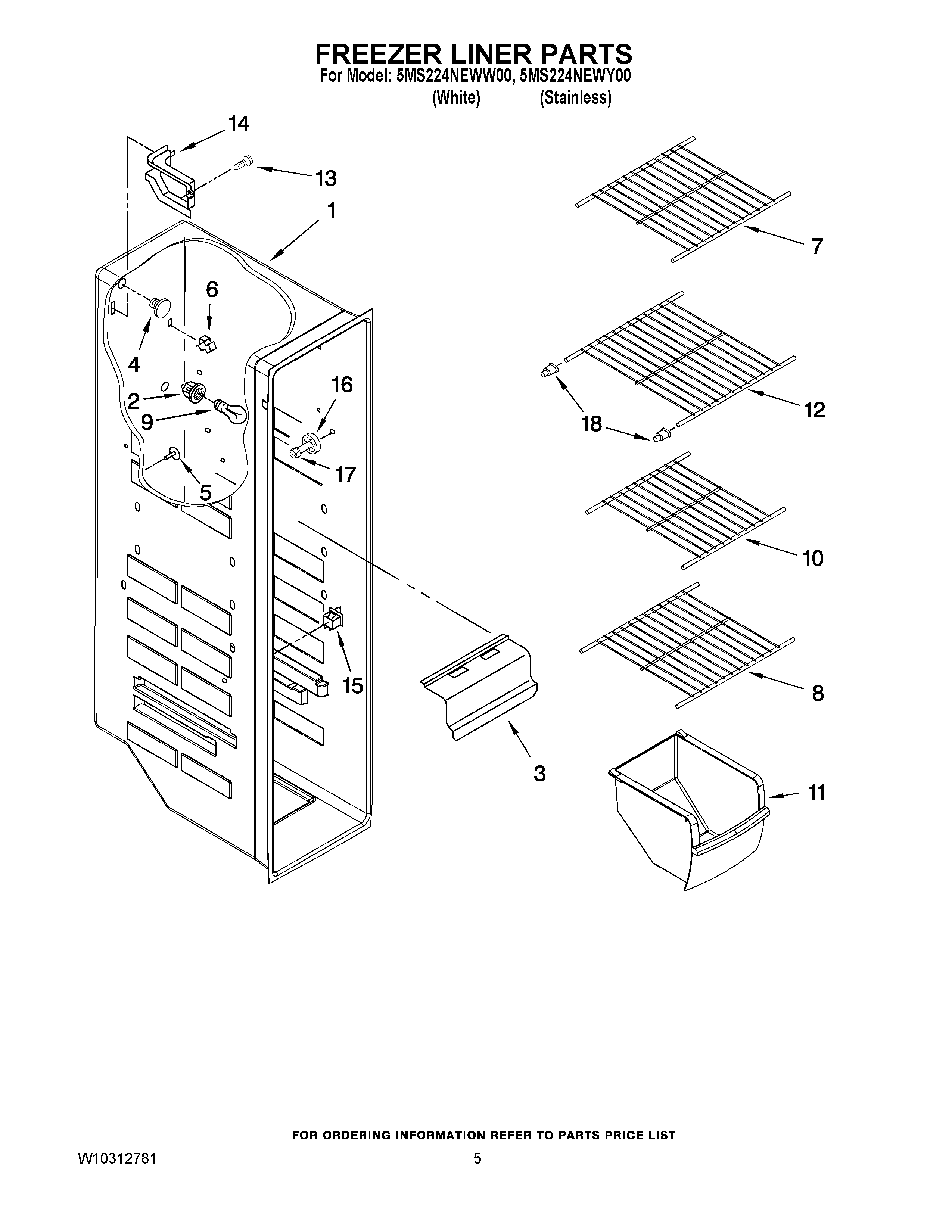

5MS224NEWY00 04 – FREEZER LINER PARTS

5MS224NEWY00 04 – FREEZER LINER PARTS

Written by

in

5MS224NEWY00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10134764
3	MAY 2155595
4	MAY 2223173
5	MAY 941839
6	Clip, Air Duct (2)
7	SHELF-WIRE
8	MAY W10276764
9	BULB, LIGHT
10	MAY W10276769
11	MAY 2309758
12	SHELF-WIRE
13	MAY 489478
14	MAY 2160912
15	MAY 2321286
16	ASSEMBLY, SHELF STUD
17	MAY W10191952
18	Cup, Shelf Mount
