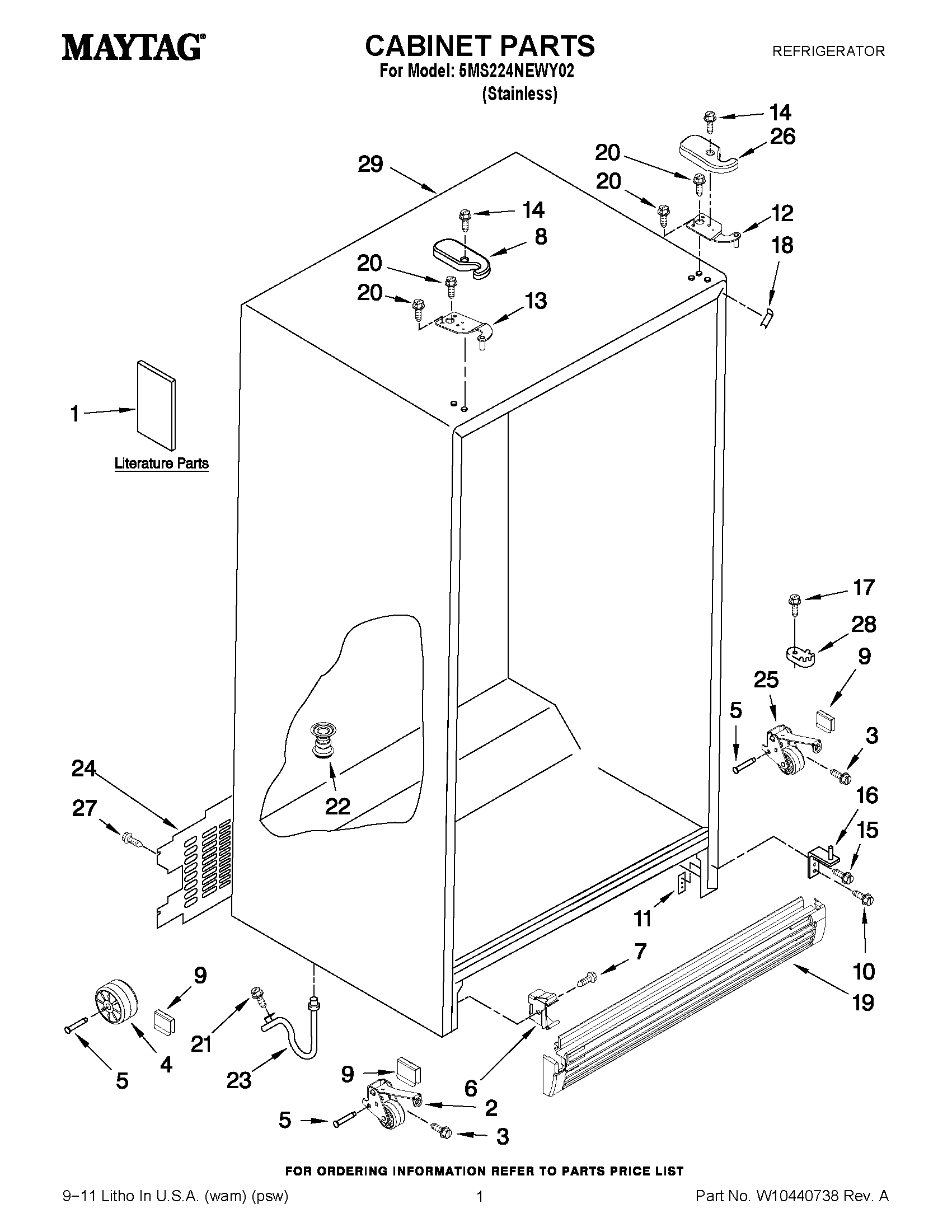

5MS224NEWY02 01 – CABINET PARTS

5MS224NEWY02 01 – CABINET PARTS

Written by

in

5MS224NEWY02 01 – CABINET PARTS

Products

PositionProduct
1MAY W10142192
1MAY W10266784
2ROLLER, FRONT (LEFT)
3MAY 2152958
4Roller
5AXLE, ROLLER
6MAY 2155013
7MAY 488500
8COVER, HINGE (FREEZER) (GREY)
9CLIP, ROLLER
10MAY 3400103
11MAY 2304249
12HINGE, TOP RC
13HINGE TOP FC
14MAY 8281227
15Screw (4)
16HINGE BOTTOM (2)
17MAY 489483
18FILLER, CORNER (GREY)
19GRILLE
20MAY 489497
21Screw (3)
22MAY 2304888
23MAY W10153550
24COVER-UNIT
25ROLLER, FRONT (RIGHT)
26COVER, HINGE (REFRIGERATOR) (GREY)
27MAY 489084
28MAY 2155311
29LINER (NOT A SERVICEABLE PART)
