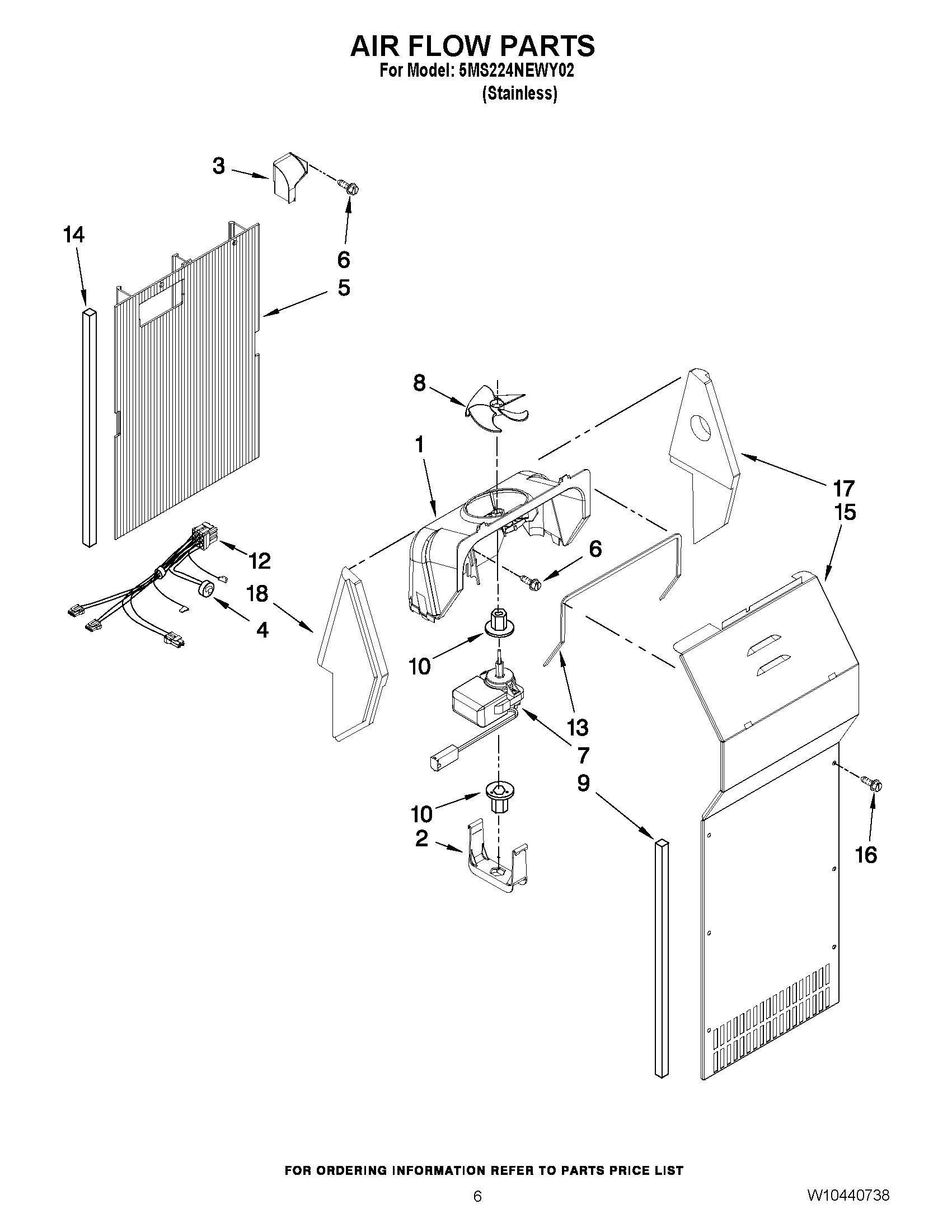

5MS224NEWY02 05 – AIR FLOW PARTS

Written by

Products

Position	Product
1	SCROLL, FAN
2	MAY 2155590
3	MAY 2161229
4	MAY W10129958
5	MAY 2203592
6	MAY 489478
7	MOTOR, FAN
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
12	MAY W10242395
13	GASKET, SCROLL ASSEMBLY
14	MAY 2203875
15	Cover, Evaporator (Includes 9)
16	MAY 8281159
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
