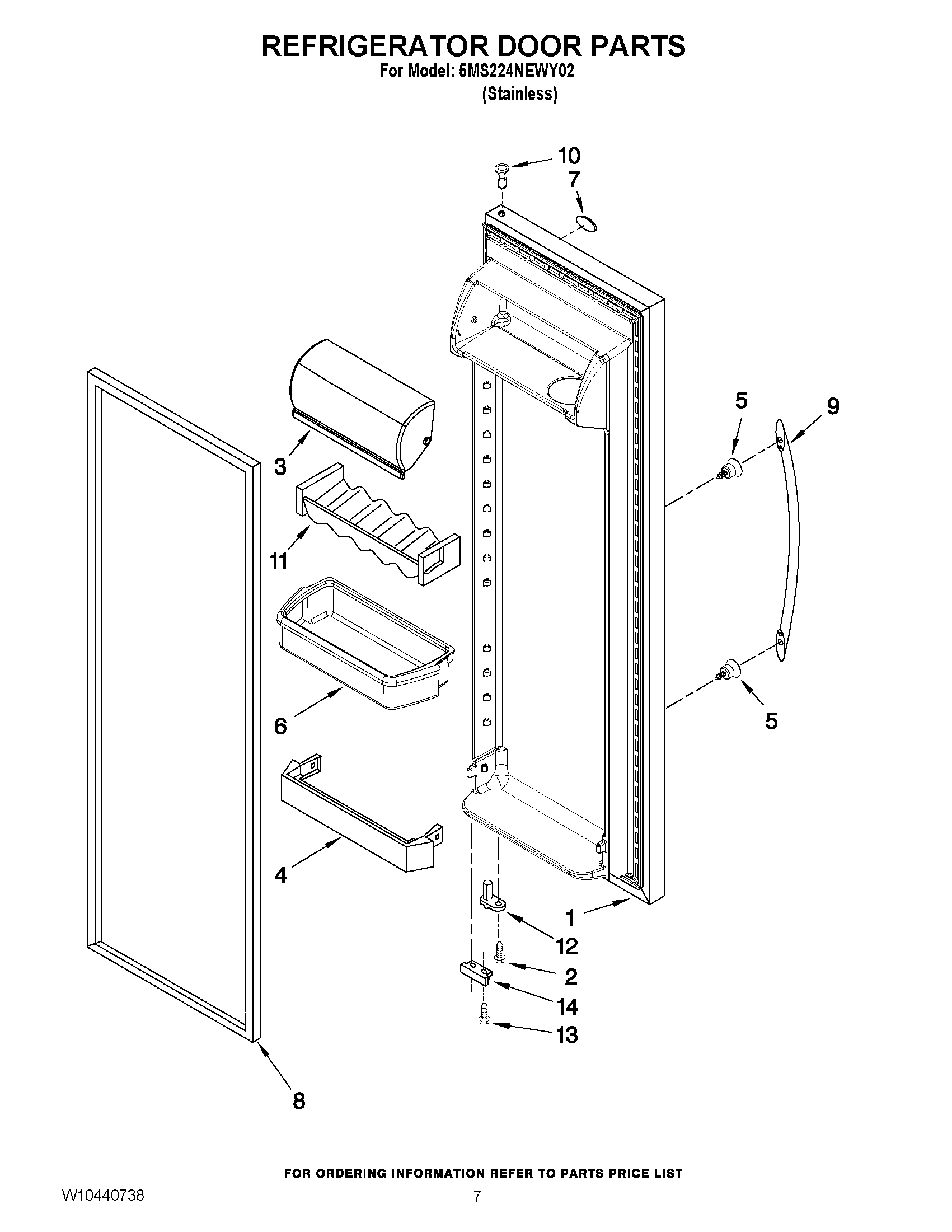

5MS224NEWY02 06 – REFRIGERATOR DOOR PARTS

5MS224NEWY02 06 – REFRIGERATOR DOOR PARTS

Written by

in

5MS224NEWY02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10365648
2MAY 3400012
3Door, Compartment
4Trivet
5STUD SCREW
6SHELF BIN
7Nameplate
8Door Gasket, Magnetic (Grey)
9W11690159 Whirlpool Handle
10MAY 2308091
11MAY 2223883
12DOOR CLOSER
13MAY 489420
14BRACKET, DOOR STOP (ZINC)
