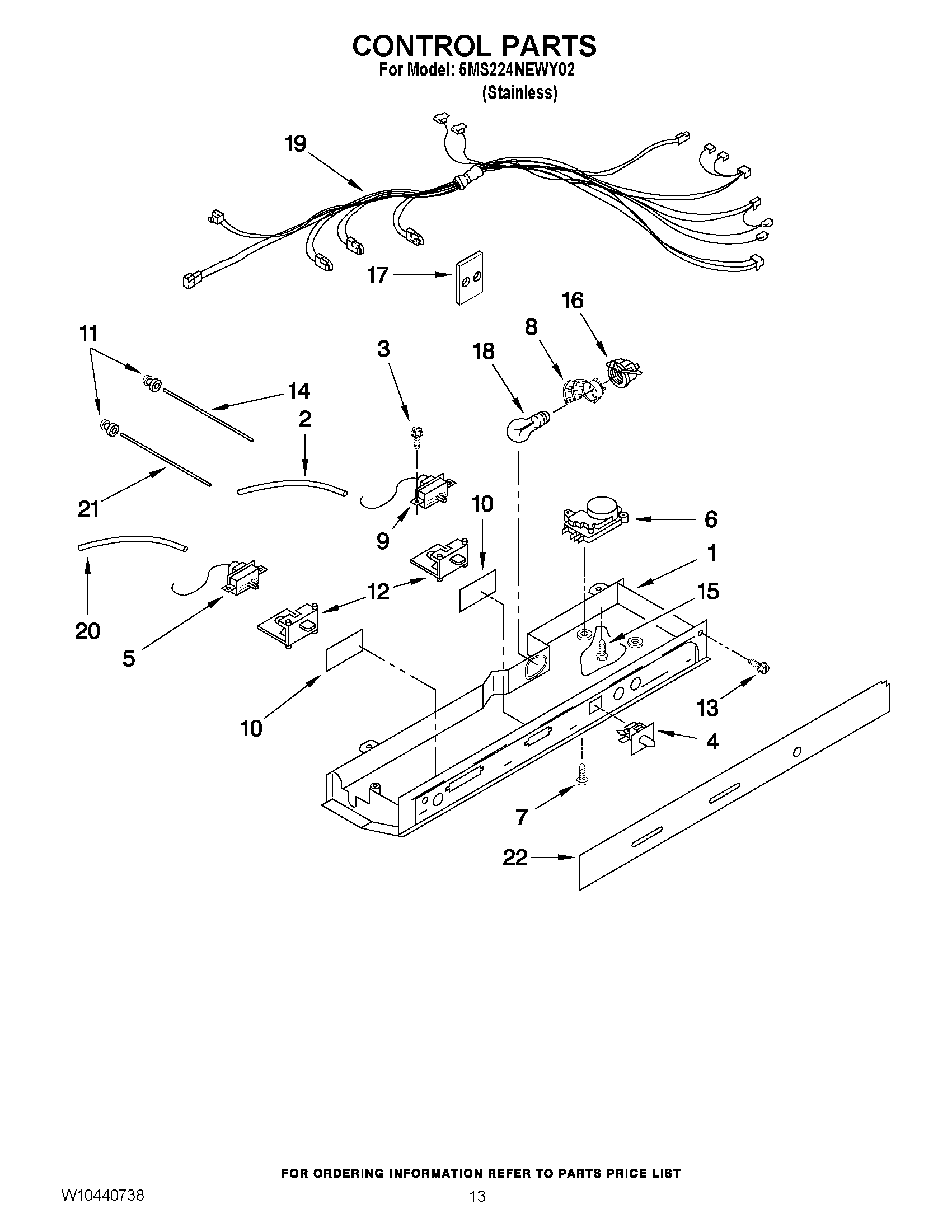

5MS224NEWY02 09 – CONTROL PARTS

5MS224NEWY02 09 – CONTROL PARTS

Written by

in

5MS224NEWY02 09 – CONTROL PARTS

Products

PositionProduct
1MAY 2200135
2TUBE, THERMOSTAT BARRIER
3Screw (2)
4SWITCH, LIGHT
5THERMOSTAT (FREEZER)
6TIMER, DEFROST
7Screw
8SHROUD-LGHT SOCKET
9MAY 2321305
10MAY 2172940
11Grommet, Light Bar (4)
12MAY 2161466
13MAY 489084
14MAY 2179920
15SCREW
16MAY W10134764
17MAY W10173095
18BULB, LIGHT
19MAY W10129766
20TUBE, BARRIER THERMOSTAT (FC)
21LIGHT BAR FC
22MAY W10239827
