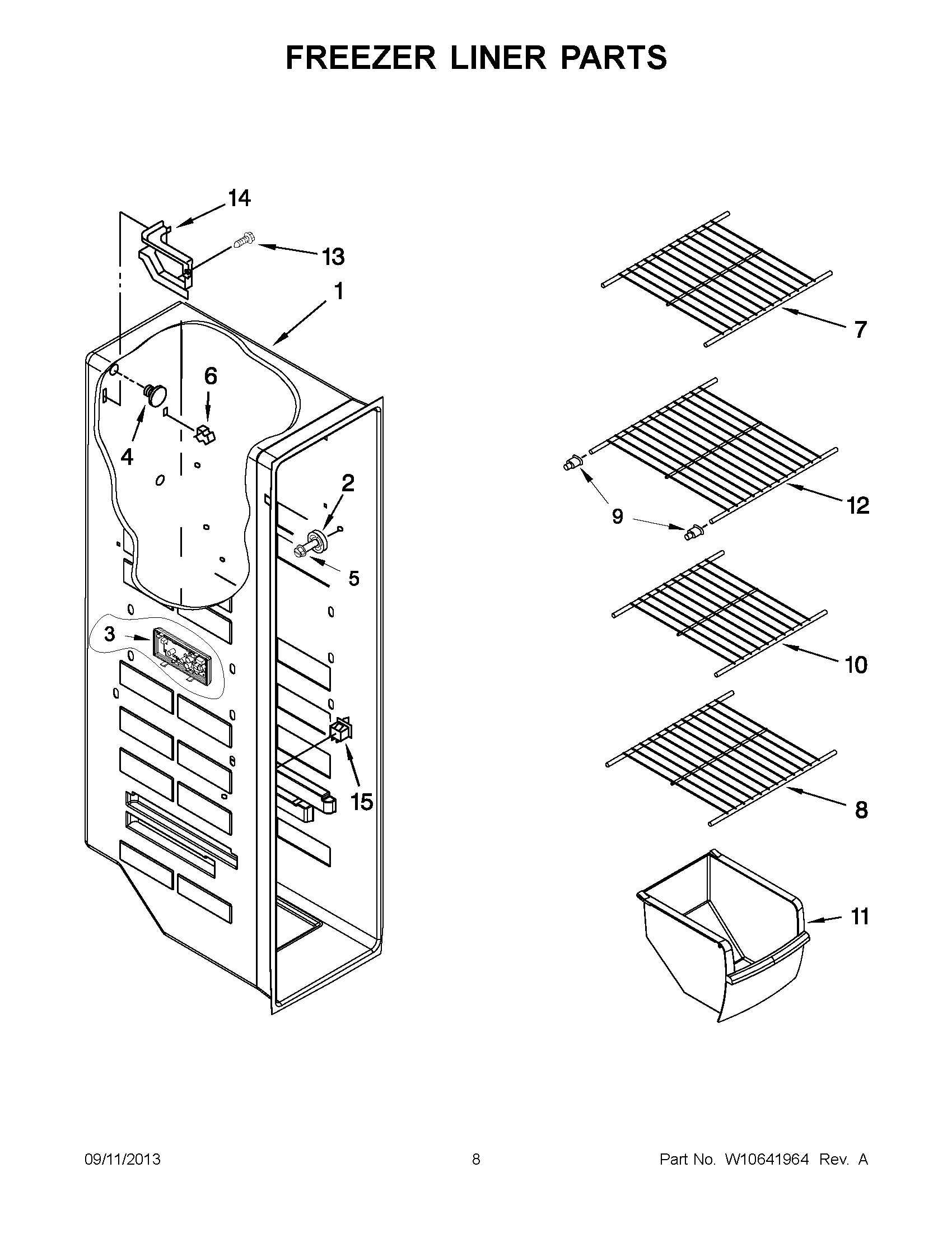

5MSF25N4BA00 05 – FREEZER LINER PARTS

5MSF25N4BA00 05 – FREEZER LINER PARTS

Written by

in

5MSF25N4BA00 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, SHELF STUD
3MAY W10623514
4MAY 2223173
5MAY W10191952
6MAY 2315163
7MAY W10318945
8MAY W10318947
9Cup, Shelf Mount
10MAY W10318961
11Freezer Bin
12MAY W10318948
13MAY 489478
14MAY 2160912
15MAY 2321286
