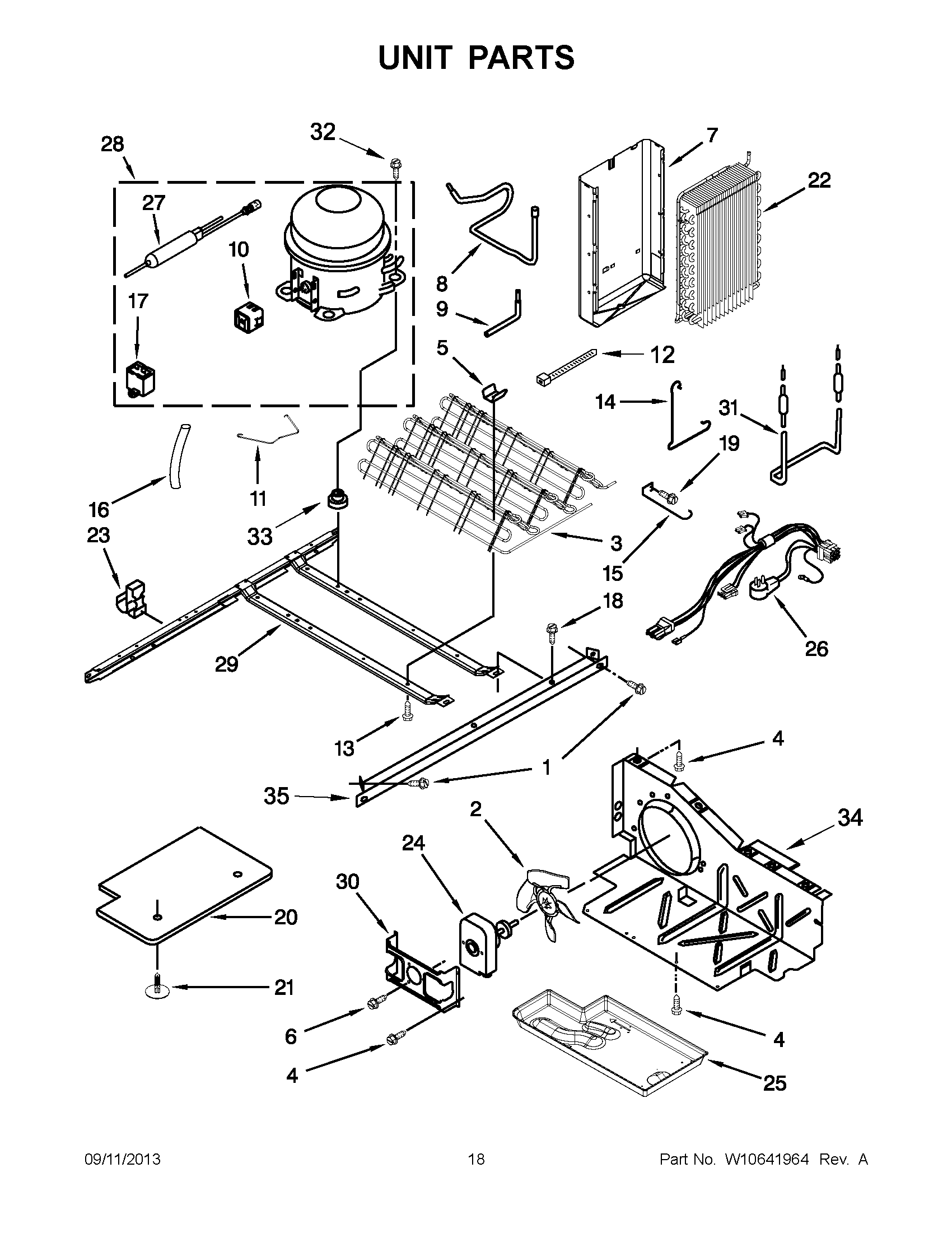

5MSF25N4BA00 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10476821
NI	MAY W10476817
NI	MAY W10476819
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
NI	10A CORD LOCK
1	MAY 489340
2	Fan, Blade
3	MAY 2324712
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	Heat Shield
8	MAY 2205765
9	MAY 2325479
10	START DEVICE
11	MAY W10174384
12	MAY 2263990
13	MAY 8281232
14	Clip
15	MAY 1110663
16	Sleeve, Pressure Switch Hose
17	CAPACITOR
18	MAY 489427
19	MAY 489478
20	ASSEMBLY, UNIT COVER (BOTTOM)
21	MAY 489396
22	Evaporator
23	MAY 2326941
24	MAY W10293680
25	MAY 1105523
26	MAY W10554745
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	Unit Mounting Frame
30	MAY 2181929
31	MAY W10123653
32	MAY W10476309
33	GROMMET
34	MAY W10332806
35	Unit Mounting Rail
