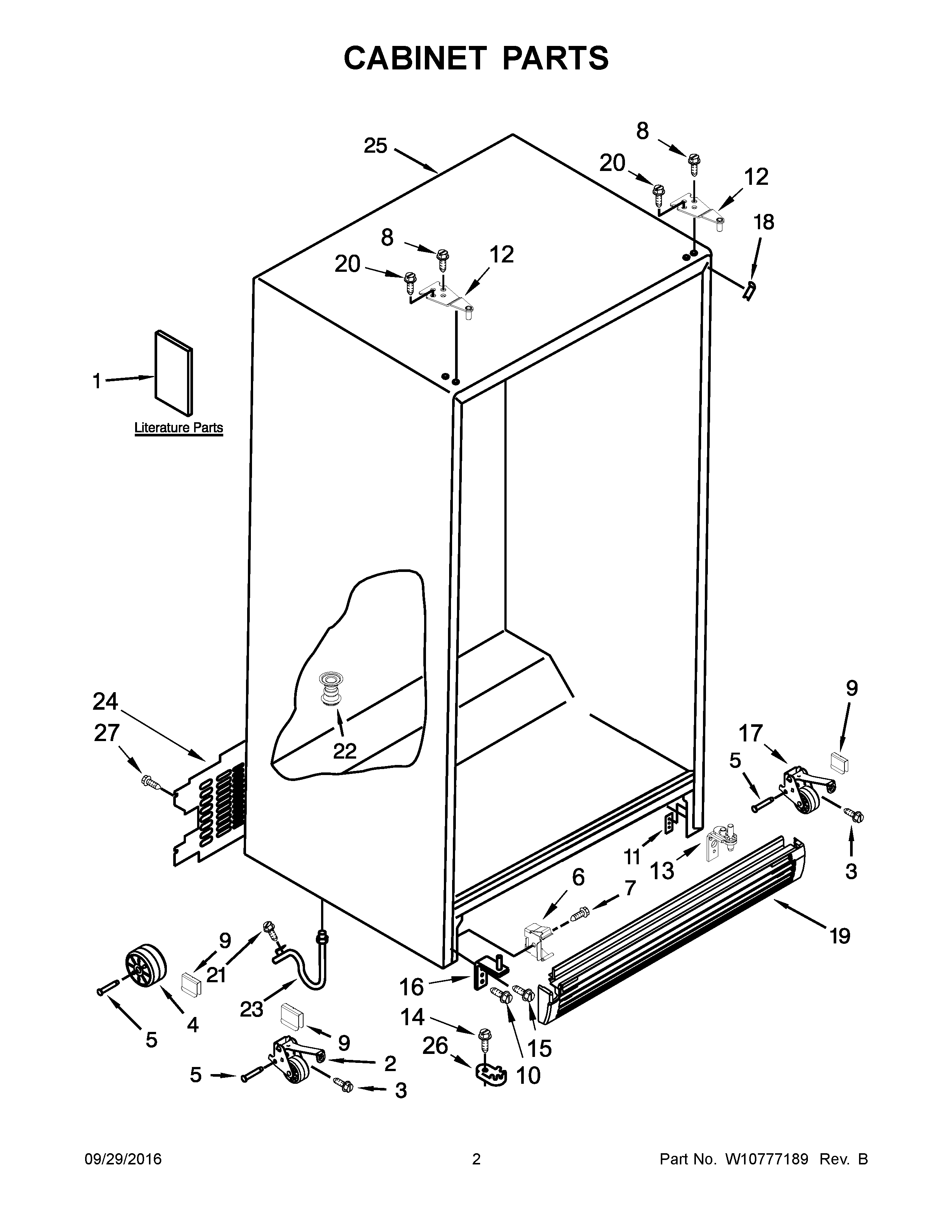

5MSF25N4BA02 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	MAY W10668583
2	ROLLER, FRONT (LEFT)
3	MAY 489427
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 488500
8	SCREW
9	MAY W10876799
10	MAY 3400103
11	MAY 2304249
12	DOOR HINGE ASSEMBLY (GREY)
13	MAY W10714071
14	MAY W10142234
15	Screw (4)
16	MAY W10414753
17	ROLLER, FRONT (RIGHT)
18	FILLER, CORNER (GREY)
19	MAY W10449700
20	SCREW (BLACK)
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2214574
25	LINER (NOT A SERVICEABLE PART)
26	MAY W10846218
27	MAY W10141645
