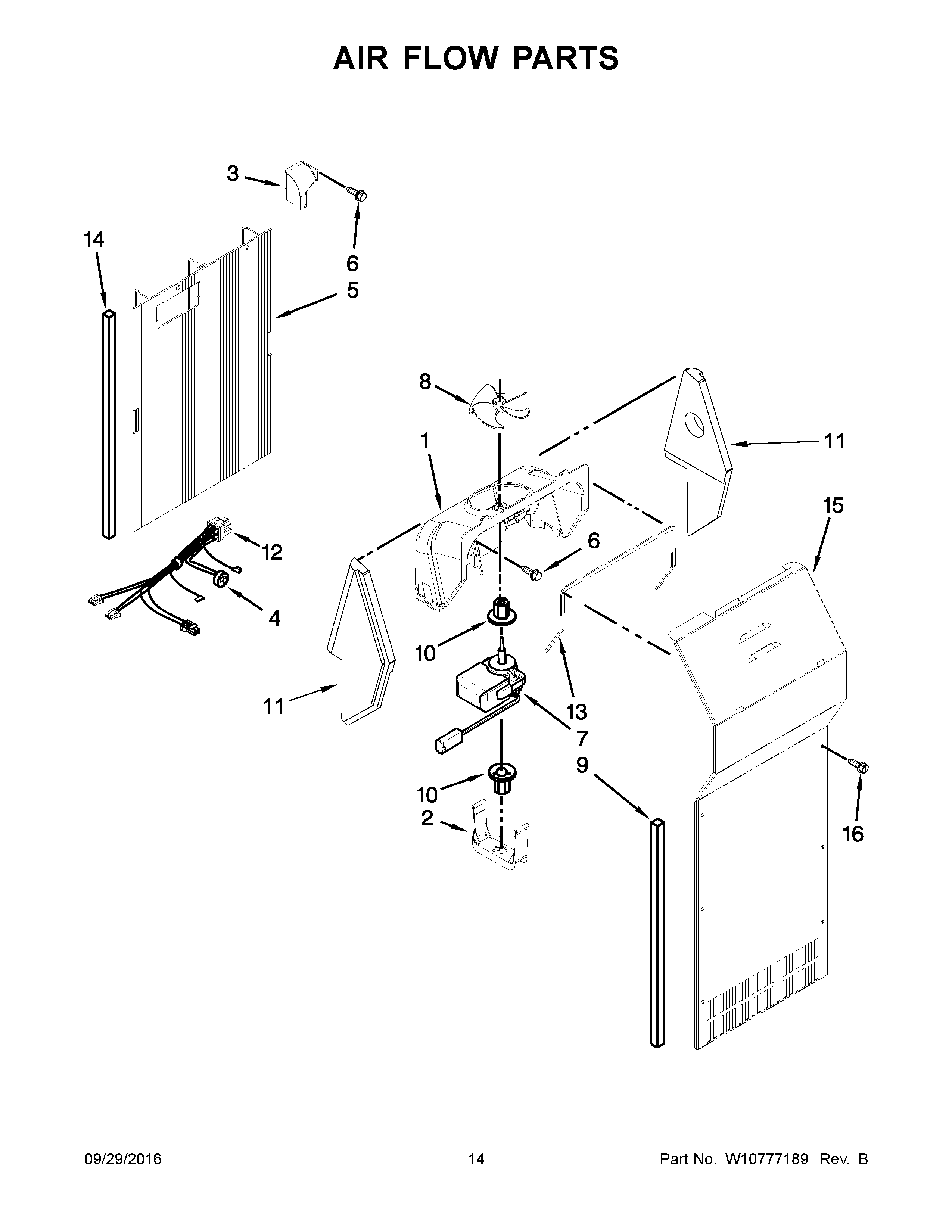

5MSF25N4BA02 08 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 2161229
4	MAY W10129958
5	DUCT, FREEZER AIR
6	MAY 489478
7	MOTOR, FAN
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	SUPPORT, FAN SCROLL (LEFT HAND)
11A	SUPPORT, FAN SCROLL (RIGHT HAND)
12	MAY W10242394
13	Gasket, Fan Scroll
14	MAY 2203876
15	MAY W10463013
16	SCREW
