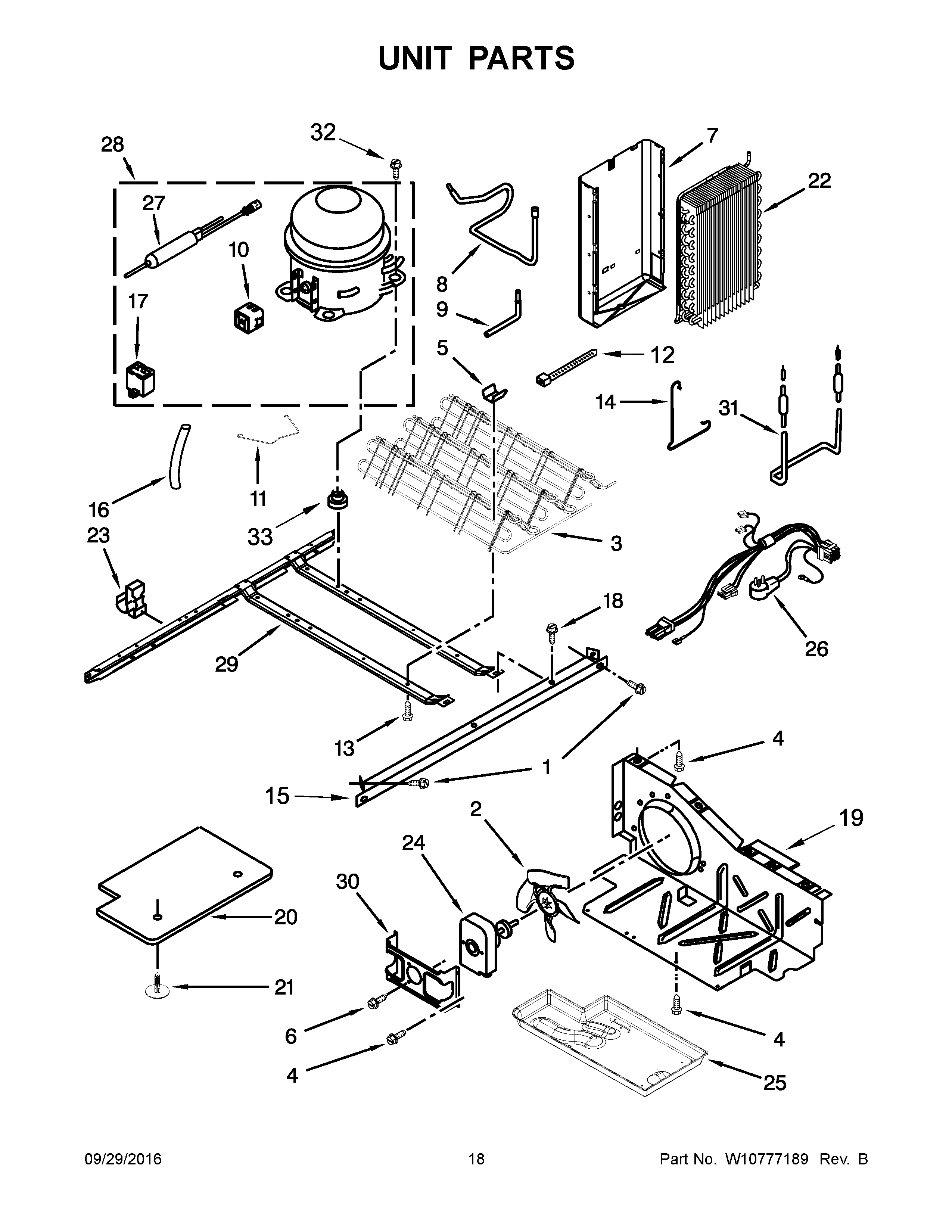

5MSF25N4BA02 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	MAY W10476821
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	MAY W10476817
NI	MAY W10476819
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 489340
2	Fan, Blade
3	MAY 2324712
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	Heat Shield
8	TUBE, SUCTION
9	MAY 2325479
10	START DEVICE
11	STRAP, BALE
12	MAY 2263990
13	MAY 8281232
14	Clip
15	Unit Mounting Rail
16	Sleeve, Pressure Switch Hose
17	CAPACITOR
18	MAY 489427
19	MAY W10332806
20	ASSEMBLY, UNIT COVER (BOTTOM)
21	MAY 489396
22	Evaporator
23	MAY 2326941
24	MAY W10293680
25	MAY W10614158
26	MAY W10554745
27	MAY W10771114
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	Unit Mounting Frame
30	MAY 2181929
31	MAY W10123653
32	MAY W10476309
33	GROMMET
