5MSF25N4BW00 02 – CABINET PARTS – Aparts

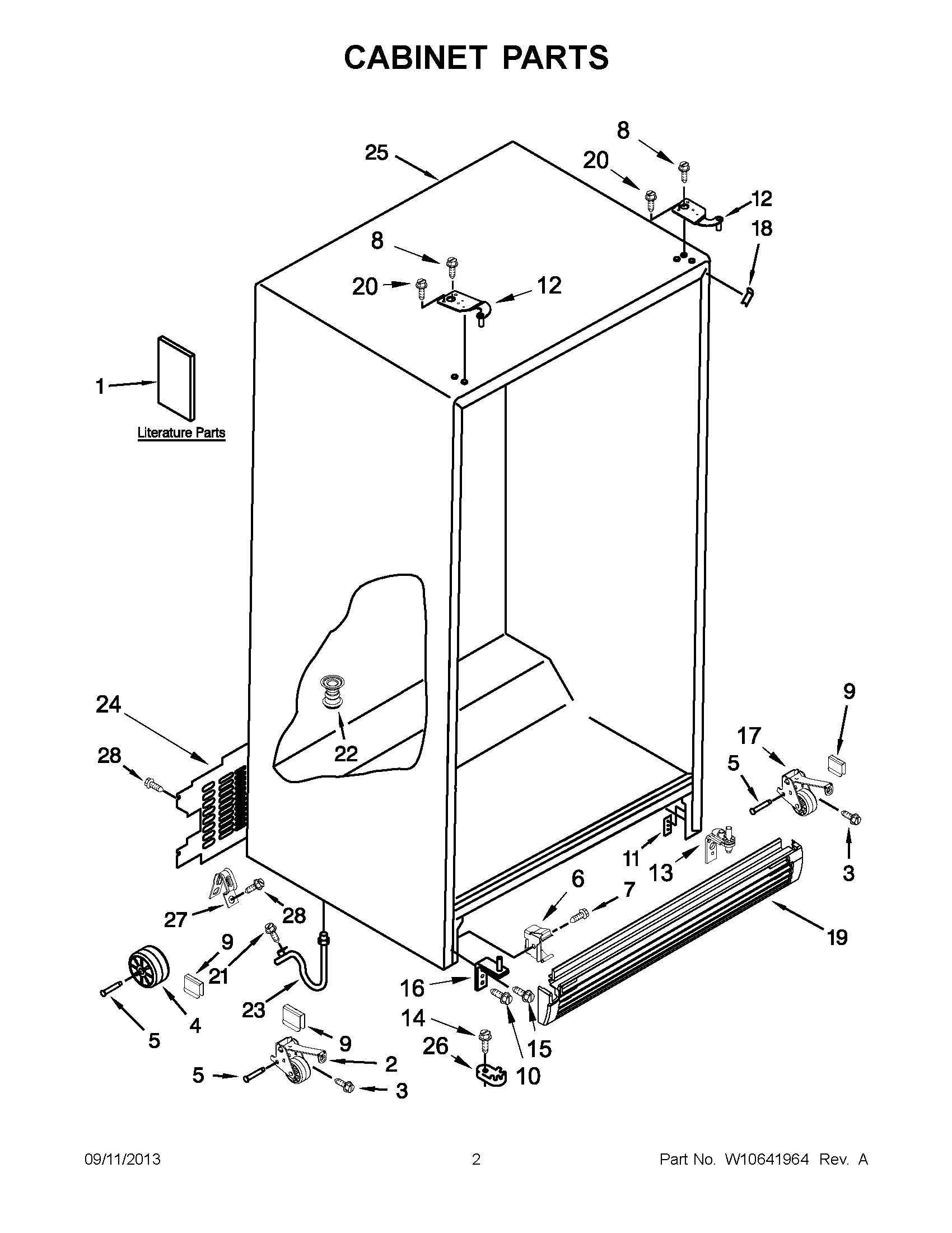

5MSF25N4BW00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10595224
1	USE & CARE GUIDE
2	ROLLER, FRONT (LEFT)
3	MAY 489427
4	MAY W10475495
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 488500
8	SCREW
9	CLIP, ROLLER
10	MAY 3400103
11	MAY 2304249
12	HINGE, TOP (WHITE)
12	HINGE TOP (FC) (GREY)
13	MAY W10409481
14	MAY W10142234
15	Screw (4)
16	MAY W10414753
17	ROLLER, FRONT (RIGHT)
18	CORNER FILLER (WHITE)
18	FILLER, CORNER (GREY)
19	MAY W10449700
19	MAY W10449698
20	SCREW (BLACK)
20	SCREW (WHITE)
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2214574
25	LINER (NOT A SERVICEABLE PART)
26	CLOSER, FREEZER DOOR
27	MAY 549193
28	MAY 489084
