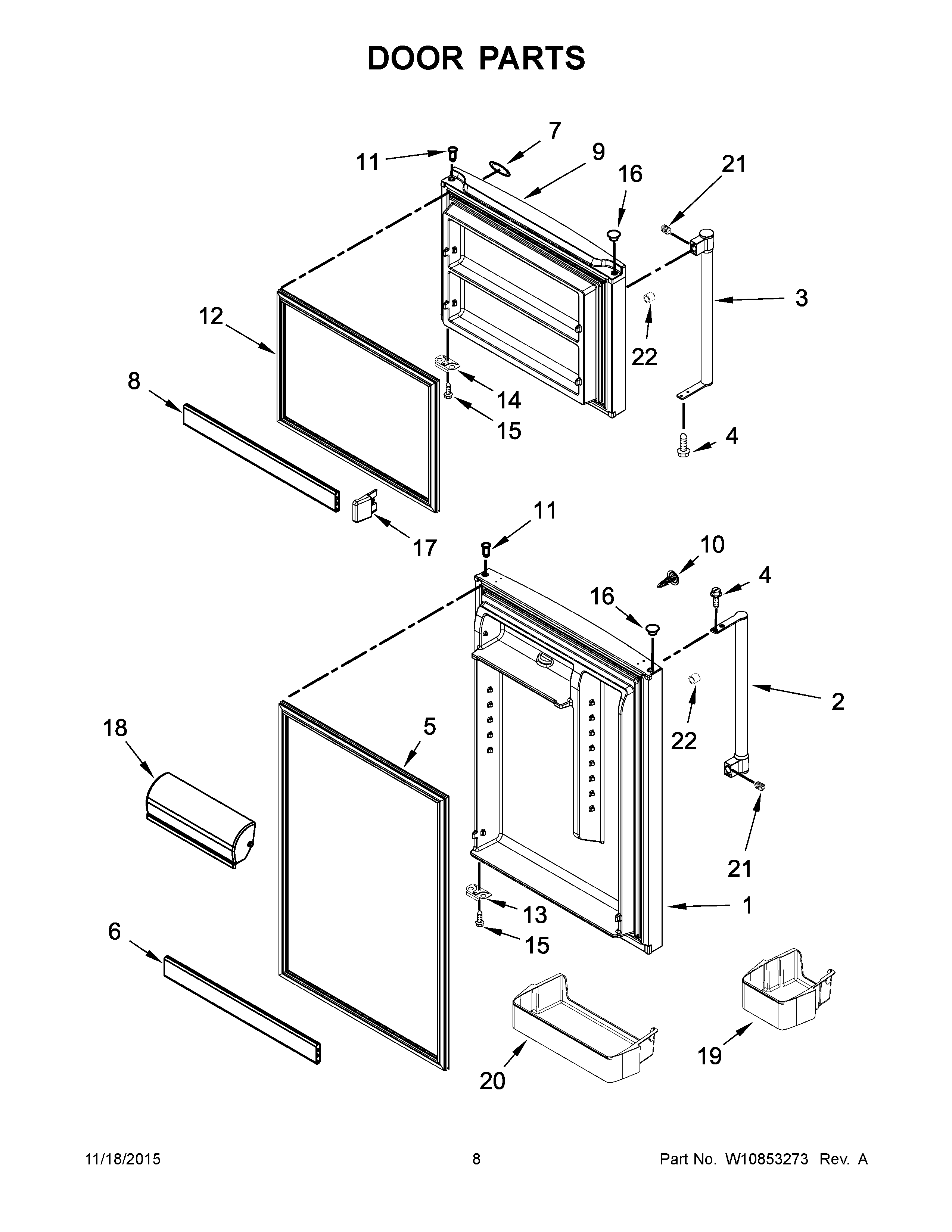

5MT519SFEH00 05 – DOOR PARTS

Products

Position	Product
1A	MAY W10818792
1	MAY W10636232
2	HANDLE, REFRIGERATOR (NEPTUNE FROST)
3	HANDLE, FREEZER (NEPTUNE FROST)
4	MAY 489357
5A	MAY W10638687
5	GASKET, DOOR (WHITE)
6	MAY W10592149
7	BADGE
8	MAY W10592151
9A	MAY W10818787
9	MAY W10636404
10	MAY W10663736
10A	MAY W10663739
11A	MAY W10492022
11	MAY W10492018
12A	MAY W10638686
12	GASKET, DOOR (WHITE)
13	BRACKET, DOOR STOP
14	MAY 2189202
15	MAY 8533904
16	MAY 2212648
16A	PLUG, HOLE (GREY)
17	MAY W10592153
18	MAY W10601425
19	BIN SHORT
20	BIN, LARGE DOOR
21	SET SCREW (SILVER)
22	STUD SCREW
