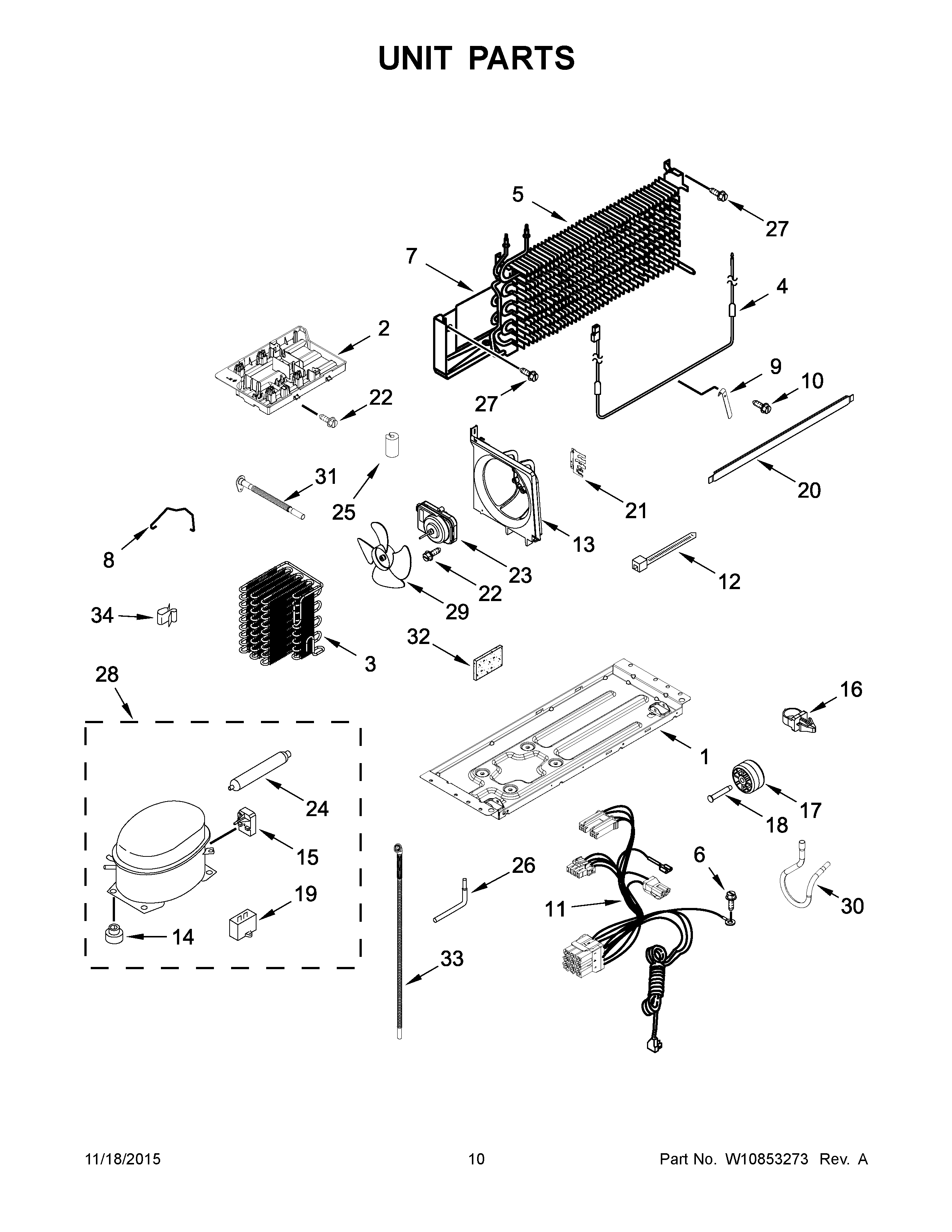

5MT519SFEH00 06 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	SUPPORT PLATE, COMPRESSOR
2	TRAY, EVAPORATOR
3	CONDENSER
4	MAY W10405108
5	ASSEMBLY, EVAPORATOR
6	MAY 488500
7	MAY W10314195
8	MAY W10801781
9	MAY 2258429
10	MAY 489478
11	MAY W10797920
12	MAY 2263990
13	BRACKET, FAN
14	GROMMET
15	START DEVICE
16	Clip, Harness (1)
17	MAY W10475495
18	MAY 2179826
19	MAY W10801770
20	MAY W10300902
21	BRACKET, EVAPORATOR
22	MAY W10622701
23	MAY W10527160
24	DRIER
25	GROMMET, CONDENSER
26	MAY W10831950
27	MAY 489442
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY W10139483
30	MAY W10756329
31	EXTENSION, DRAIN TUBE
32	MAY 2215468
33	TUBE, DRAIN
34	MAY 2326941
