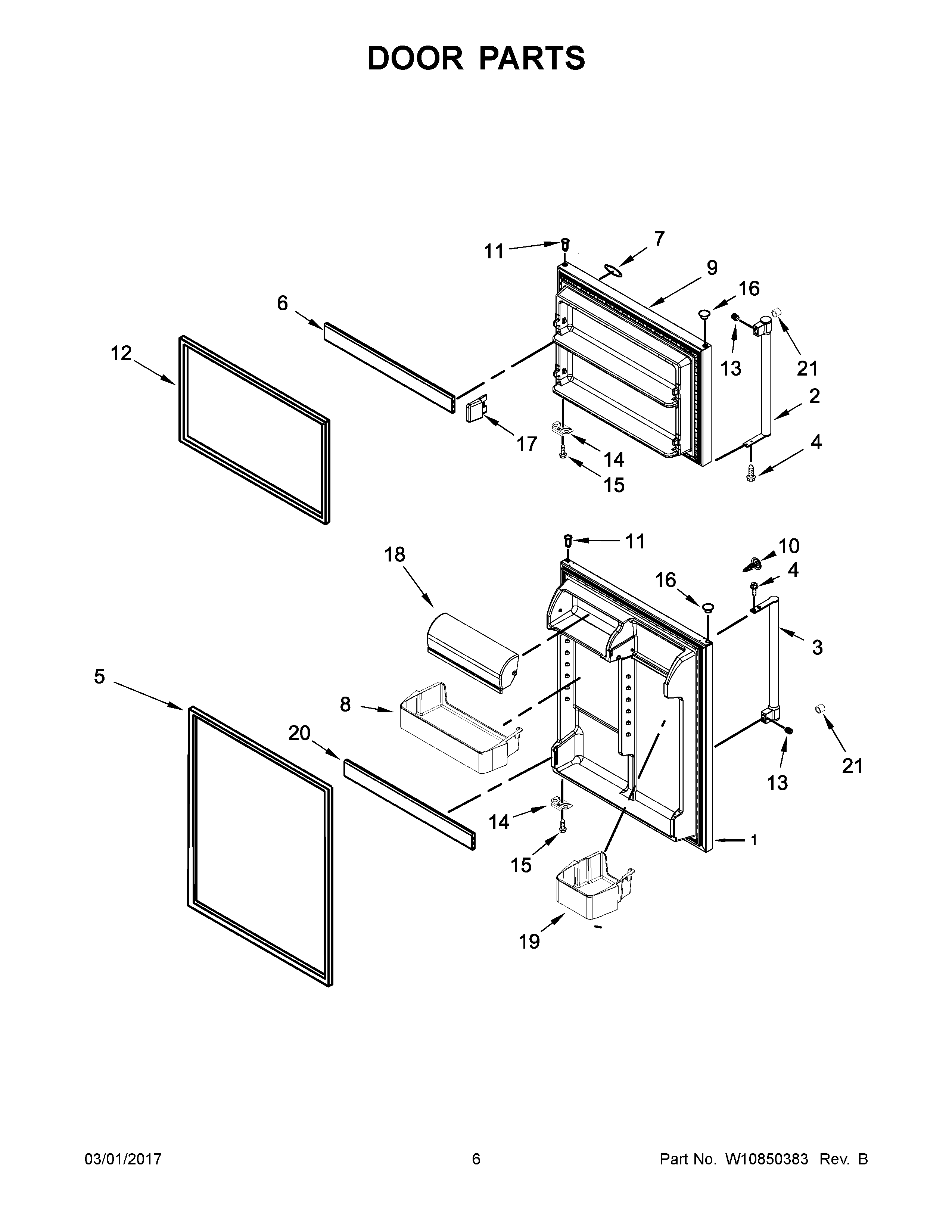

5MT711BFEG00 04 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUSTRATION 5) (STAINLESS)
2HANDLE, FREEZER (NEPTUNE FROST)
3HANDLE, REFRIGERATOR (NEPTUNE FROST)
4SCREW
5GASKET, DOOR (GREY)
6MAY W10592150
7BADGE
8BIN, LARGE DOOR
9FREEZER DOOR (INCLUDES ILLUSTRATION 12) (STAINLESS)
10MAY W10663739
11MAY W10334042
12GASKET, DOOR (GREY)
13SET SCREW (SILVER)
14MAY 2189202
15MAY 489276
16PLUG, HOLE (GREY)
17MAY W10592153
18MAY W10601425
19BIN, MEDIUM
20MAY W10592148
21MAY W10511911
