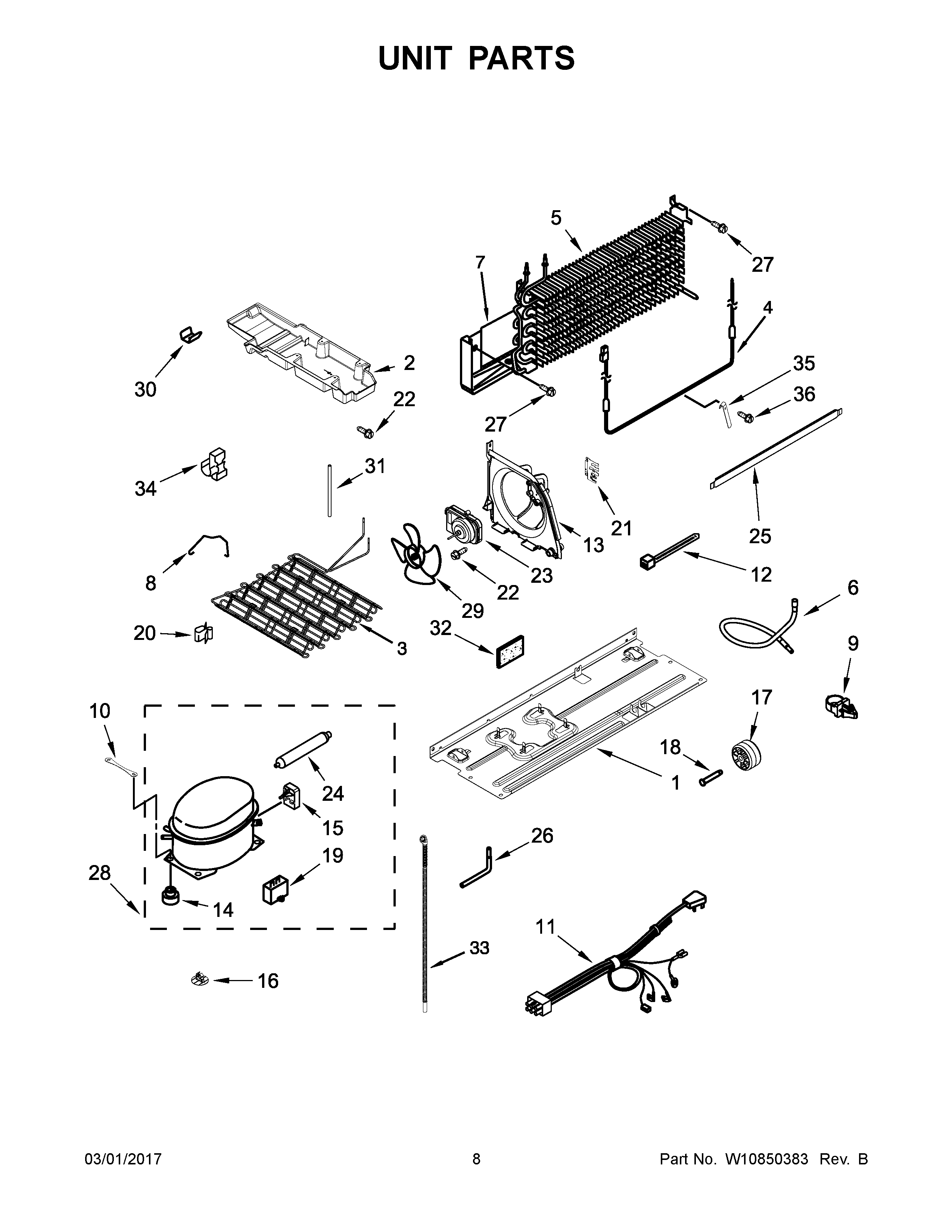

5MT711BFEG00 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	PLATE, UNIT MOUNTING
2	TRAY, DRAIN
3	MAY W10609393
4	MAY W10405108
5	ASSEMBLY, EVAPORATOR
6	MAY W10466682
7	MAY W10314195
8	MAY W10801781
9	Clip, Harness (1)
10	MAY W10236396
11	MAY W10797923
12	MAY 2263990
13	MAY W10609392
14	Grommet (4)
15	START DEVICE
16	MAY W10815861
17	MAY W10475495
18	MAY 2179826
19	MAY W10801770
20	MAY 939054
21	BRACKET, EVAPORATOR
22	MAY W10622701
23	MAY W10527160
24	DRIER
25	MAY W10300902
26	MAY VS20001
27	MAY 489442
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY W10817071
30	CLIP, CONDENSER
31	VALVE, DRAIN
32	MAY 2215468
33	MAY W10475011
34	MAY 2326941
35	MAY 2258429
36	MAY 489478
