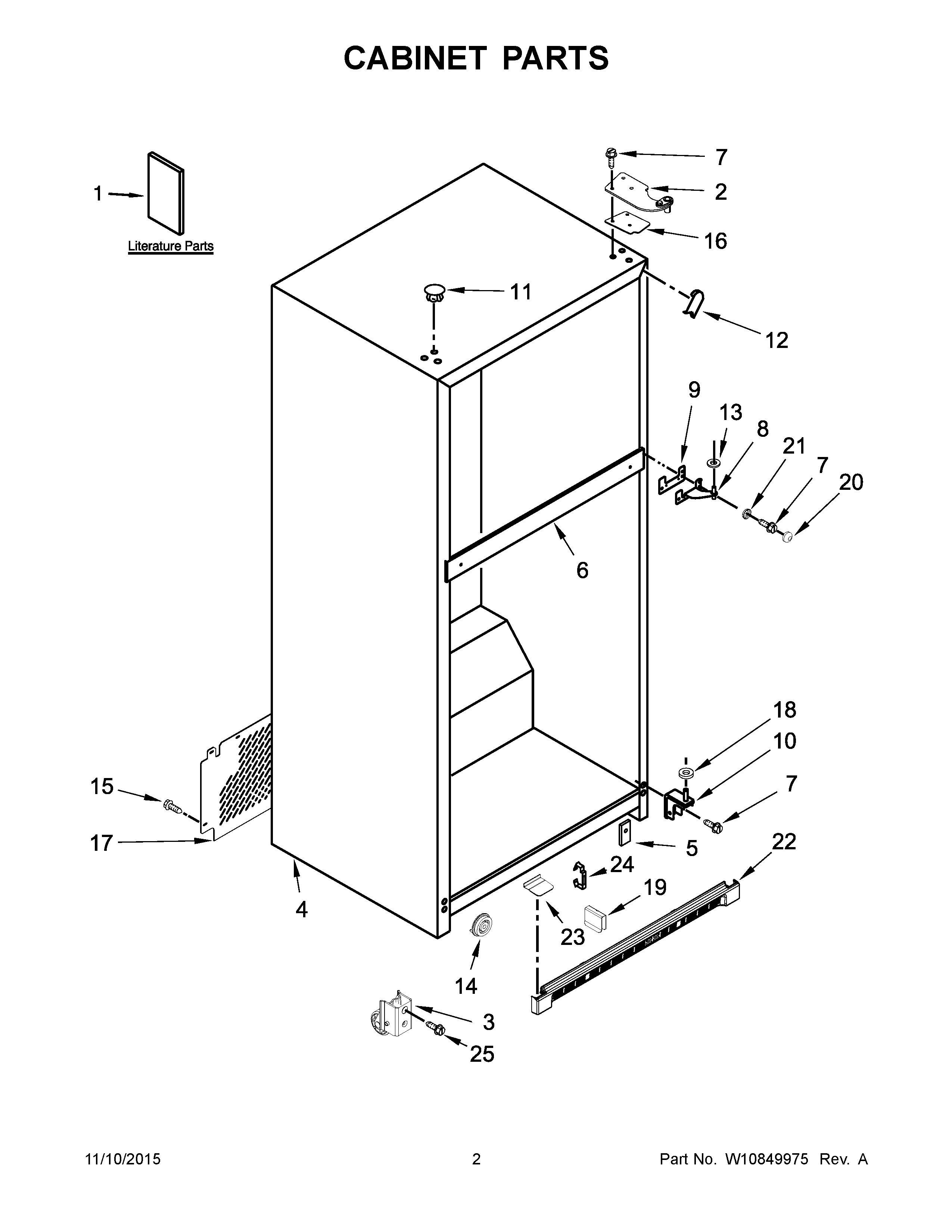

5MT711BFEH00 02 – CABINET PARTS

5MT711BFEH00 02 – CABINET PARTS

Written by

in

5MT711BFEH00 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10834951
1MAY W10804649
2HINGE (TOP)
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
5MAY W10474788
6LINER (NOT A SERVICEABLE PART)
7MAY 489497
8MAY 2254618
9MAY 2183852
10MAY 2254473
11MAY W10520304
12CORNER FILLER (WHITE)
13WASHER, PLASTIC
14DRUM, TOE GRILLE
15MAY 2262176
16MAY W10338247
17MAY W10609390
18Washer (1/16)
19CLIP, ROLLER
20CAP, DOME (WHITE)
21CAP, WASHER DOME
22MAY W10326387
23ENDCAP, GRILLE (WHITE)
24MAY 2254385
25MAY W10142287
