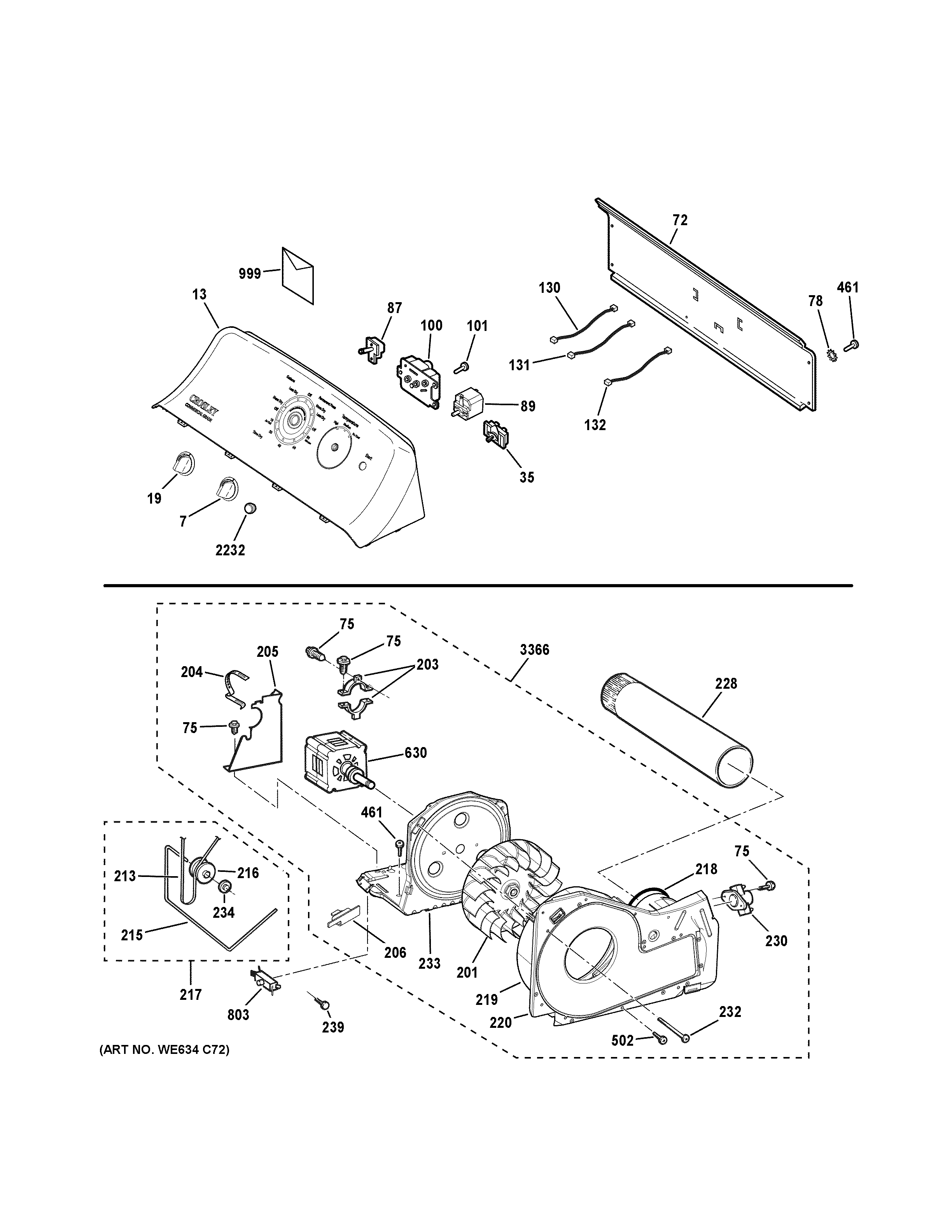

5TX62G9ST0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

5TX62G9ST0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

5TX62G9ST0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
7DRYER CYCLE SELECT KNOB
13CONTROL PANEL TL DRYER CROSLEY COMMERCIA
19DRYER OPTIONS KNOB
35PUSH TO START SWITCH
72WE20X24556 GE Back Panel
75WE01X25535 GE Screw
78WE01X26154 GE Washer
87WE02X25283 GE Rotary Switch
89WE4M318 GE Buzzer Assembly
100TIMER
101WE01X24720 GE Screw 30 x 20 IA PP
130WE15X25206 GE Jumper Harness Red
131WIRE GROUP ASM
132WE15X25208 GE Jumper Harness Black
201WH16X34317 GE Blower Wheel
203WE13X30697 GE Washer Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206BRACKET IDLER
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
217WE03X27417 GE Idler Arm Assembly
218WE09X27636 GE Exhaust Blower Gasket
219HOUSING BLOWER
220WE13X29444 GE Blower Plate
228WE01X23892 GE Exhaust Duct
230WE04X26215 GE Thermostat
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234GEN WE2M96?
239WE2X21854 GE Screw
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
803WD21X10261 GE Dishwasher Interlock Switch
999PM INSTALLATION INSTRUCTION USA ELEC Y G
999PM MINI MANUAL AND WIRING
999PM QUICK OWNERS MANUAL
2232BUTTON START ASM
3366WE17X24535 GE Motor and Blower Assembly
