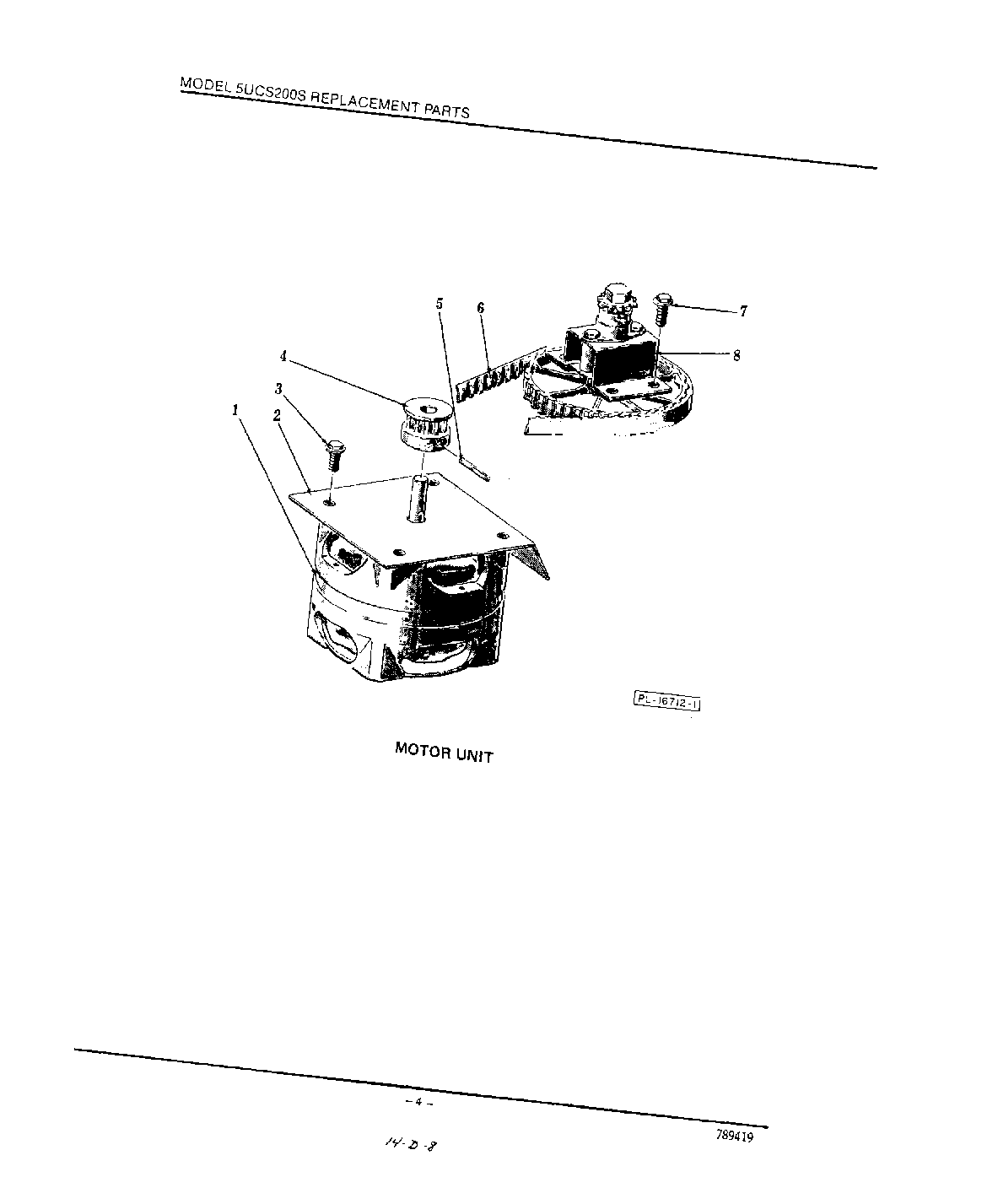

5UCS200S 03 – MOTOR

Products

Position	Product
1	Motor Assy. (Incls. items No.2, 3, 4 & 5)
2	Deflector - Debris
4	Pulley - Gear Belt
5	Spiral Pin-3/16`` Dia. x 1-1/2`` Lg
6	Belt - Drive
7	Mach. Screw - 5/16``-18 x 1/2`` Hex Flange Hd. ``Whiz- Lock``
8	Ram Drive Sprocket Mount Assy
