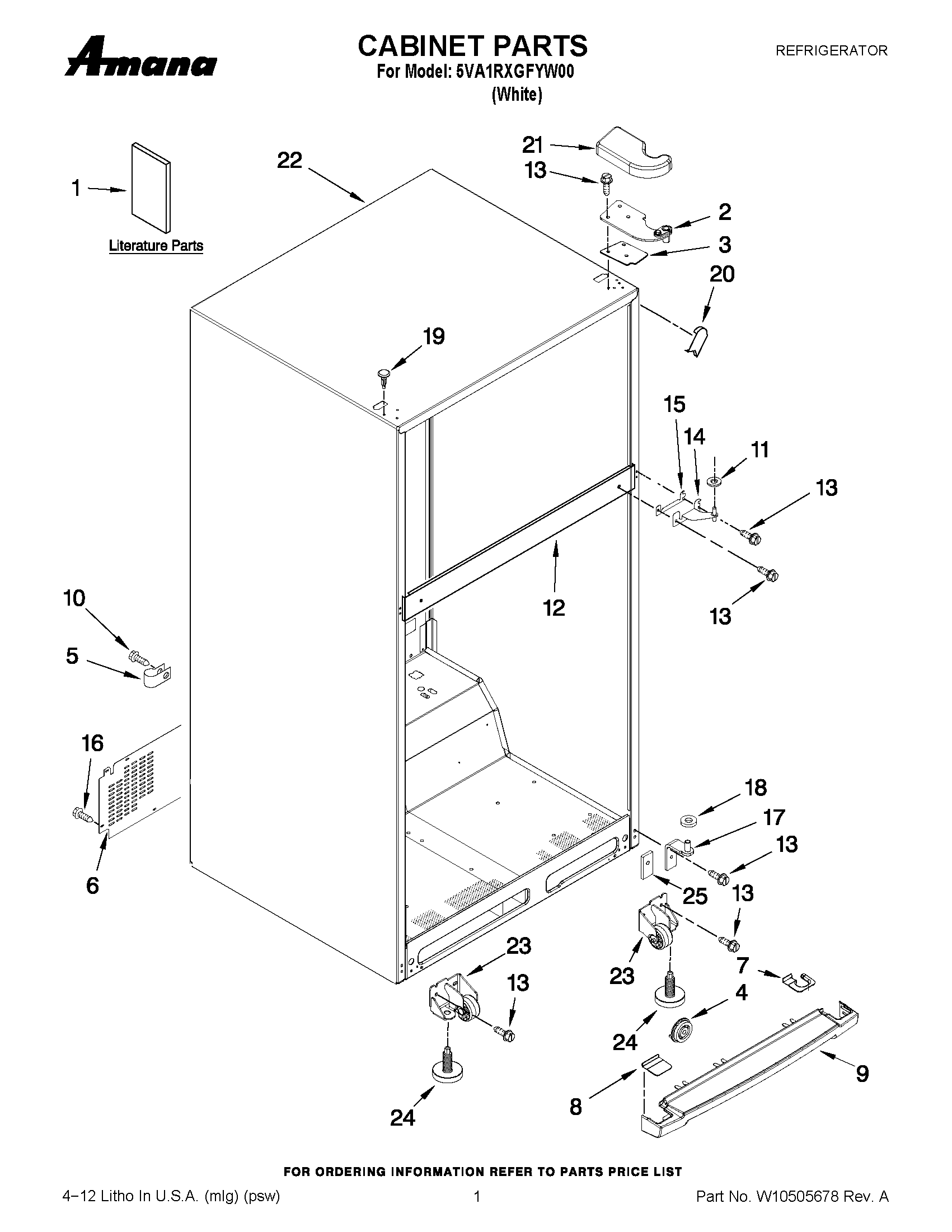

5VA1RXGFYW00 01 – CABINET PARTS

5VA1RXGFYW00 01 – CABINET PARTS

Written by

in

5VA1RXGFYW00 01 – CABINET PARTS

Products

PositionProduct
1WIRING SHEET ARABIAN
1MAY W10469939
1MAY W10462267
2MAY W10337503
2HINGE (TOP)
3MAY W10338247
4DRUM, TOE GRILLE
5CLAMP, TUBE
6MAY W10425028
7ENDCAP, GRILLE HINGE (WHITE)
8ENDCAP, GRILLE (WHITE)
9GRILLE (INCLUDES ILLUS. 20) (WHITE)
10MAY 2262176
11WASHER, PLASTIC
13MAY 489497
14MAY 2254618
15MAY 2183852
16MAY 8281265
17MAY 2254473
18Washer (1/16)
19HOLE PLUG
20CORNER FILLER (WHITE)
21COVER, HINGE (WHITE, RS)
21COVER, HINGE (WHITE, LS)
22LINER (NOT A SERVICEABLE PART)
23ROLLER, FRONT (LEFT HAND)
23ROLLER, FRONT (RIGHT HAND)
24Brake, Foot
25MAY W10474788
