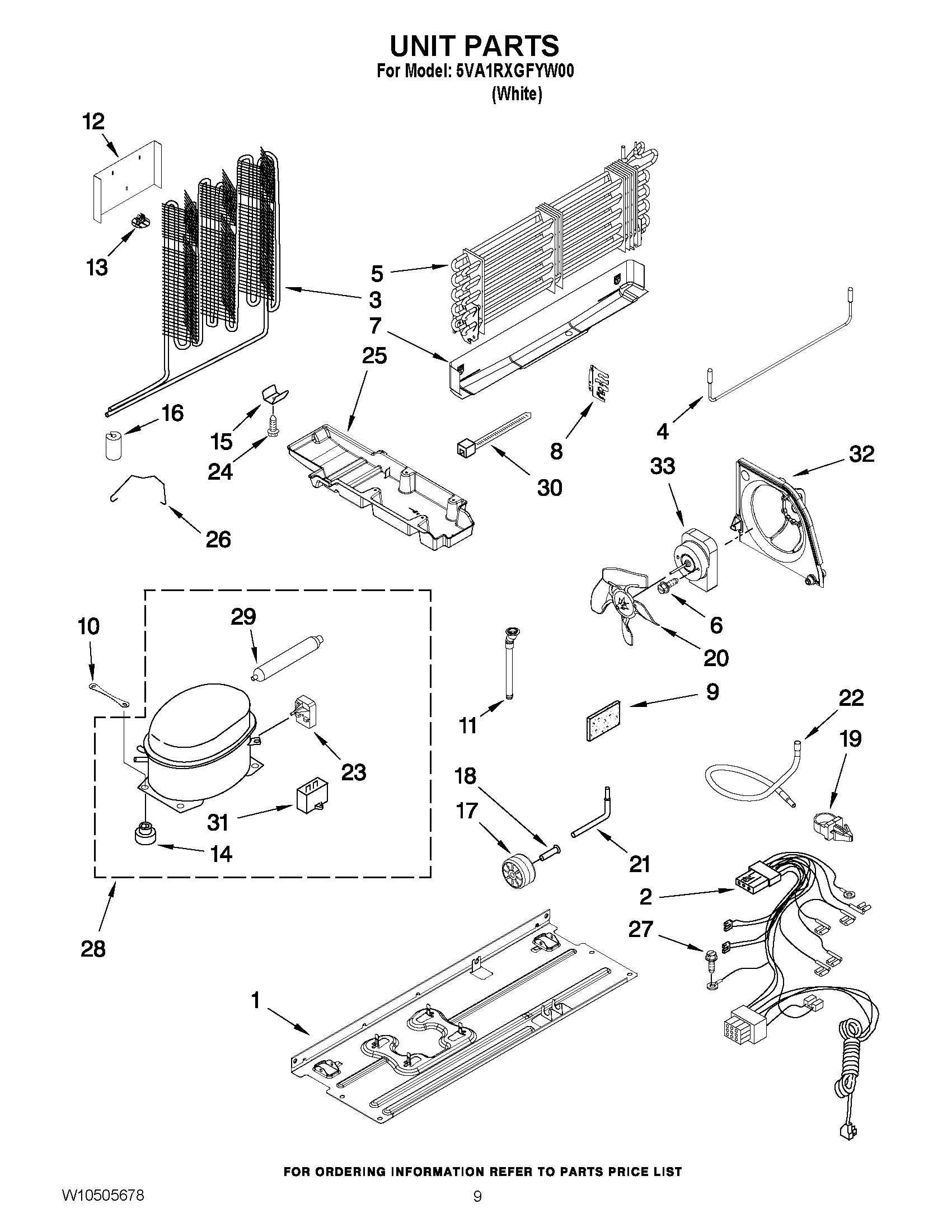

5VA1RXGFYW00 06 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	PLATE, UNIT MOUNTING
2	MAY W10402413
3	CONDENSER
4	MAY W10405108
5	EVAPORATOR ASSY.
6	MAY 8533961
7	MAY W10314195
8	BRACKET, EVAPORATOR
9	MAY 2215468
10	MAY W10236396
11	VALVE, DRAIN
12	MAY W10349515
13	CLIP, BOTTOM COVER
14	GROMMET
15	CLIP, CONDENSER
16	GROMMET, CONDENSER
17	Roller
18	MAY 2179826
19	Clip, Harness (1)
20	MAY W10139483
21	MAY 2154109
22	MAY W10466682
23	START DEVICE
24	MAY 8281232
25	MAY W10466213
26	STRAP, BALE
27	MAY 488500
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	Drier
30	MAY 2263990
31	CAPACITOR
32	MAY 2315541
33	MOTOR, CONDENSER
