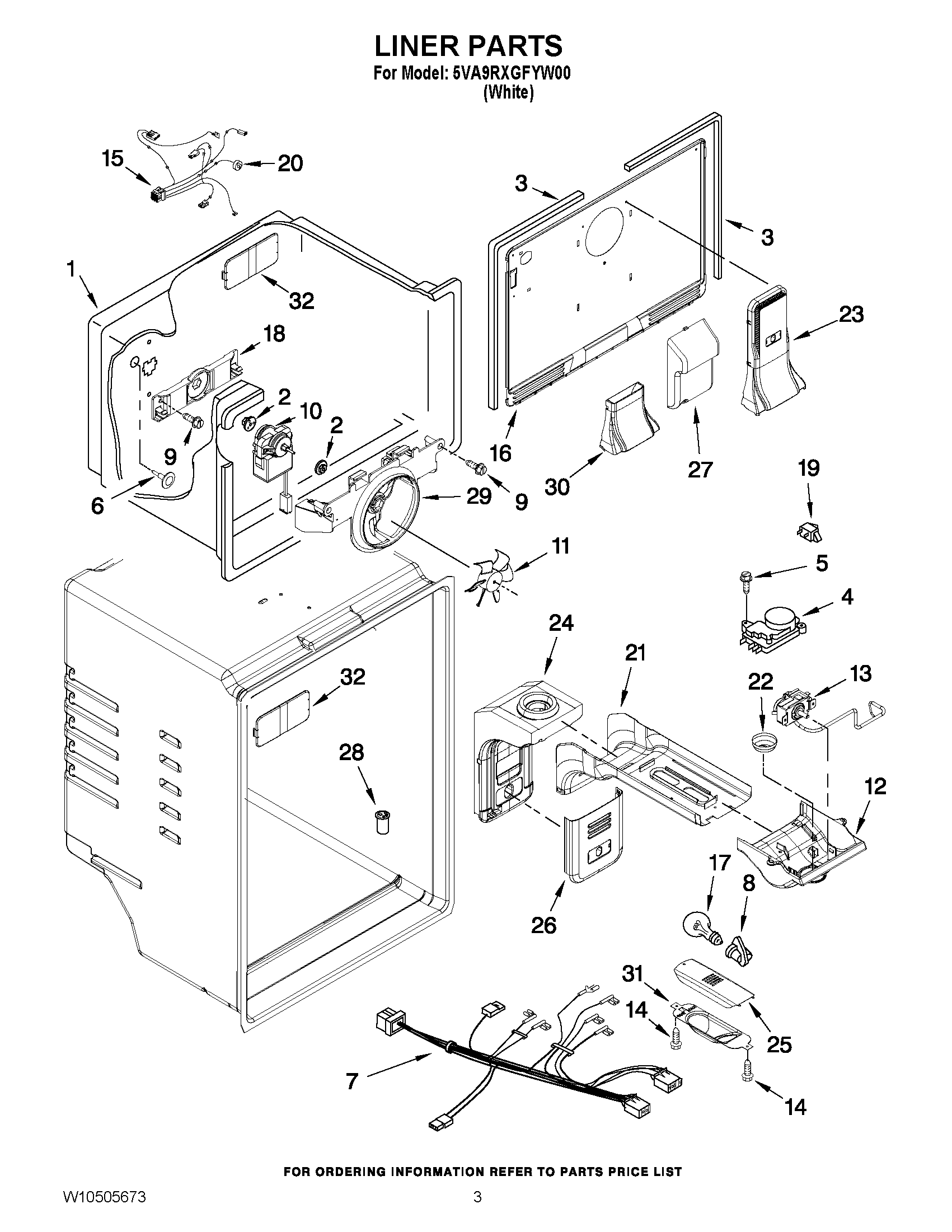

5VA9RXGFYW00 02 – LINER PARTS

5VA9RXGFYW00 02 – LINER PARTS

Written by

in

5VA9RXGFYW00 02 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2197380
3MAY 2254359
4MAY 2321259
5MAY 97787
6MAY 941839
7MAY W10403661
8MAY W10134764
9Screw
10MAY W10173141
11MAY 2200509
12MAY W10452658
13THERMOSTAT ASSEMBLY
14MAY 489174
15MAY W10495656
16COVER-EVAPORATOR
17BULB, LIGHT
18Bracket, Fan Back
19MAY 1118894
20DEFROST, BI-METAL
21MAY W10469933
22KNOB, THERMOSTAT
23MAY W10394363
24AIR DIFFUSER ASSEMBLY
25LIGHT COVER, RC
26MAY W10394911
27MAY W10339203
28MAY 2210509
29MAY W10321162
30ASSEMBLY, TOWER CONNECTION
31MAY W10300161
32MAY W10394364
