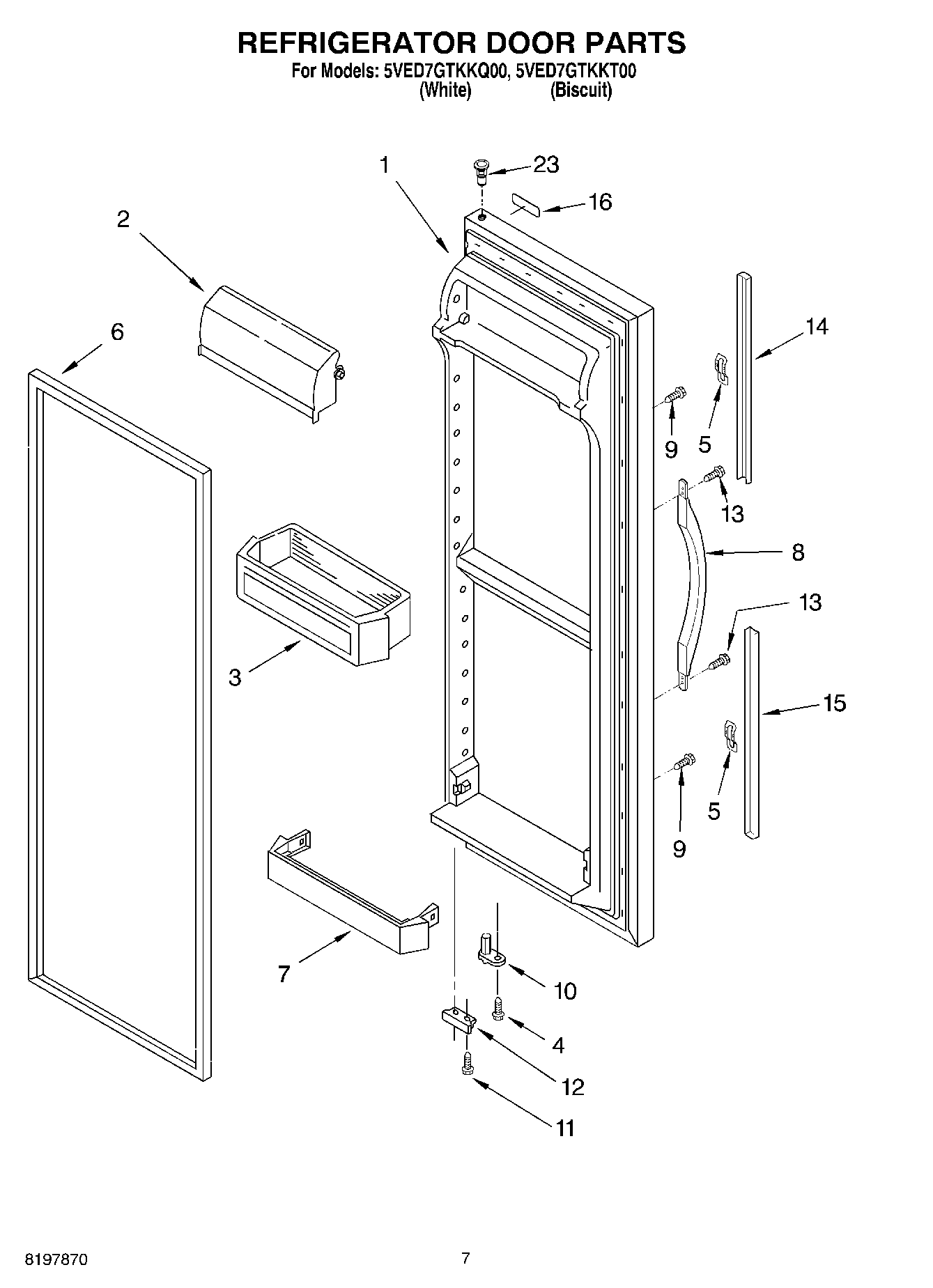

5VED7GTKKT00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
3	WP2187172 Whirlpool Refrigerator Door Shelf Bin
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	2159075 Whirlpool Door Gasket Seal
7	WP2177962K Whirlpool Refrigerator Door Trim
8	Handle, Center (White)
8	Handle, Center (Biscuit)
9	WP3400852 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	WP2206629B Whirlpool Refrigerator Bracket
13	WP489491 Whirlpool Refrigerator Screw
14	Extension, Top (Biscuit)
14	WP2194973W Whirlpool Door Trim
15	Extension, Bottom (Biscuit)
15	Extension, Bottom (White)
16	Nameplate (White)
16	Nameplate (Biscuit)
23	WP2182181 Whirlpool Refrigerator Thimble
