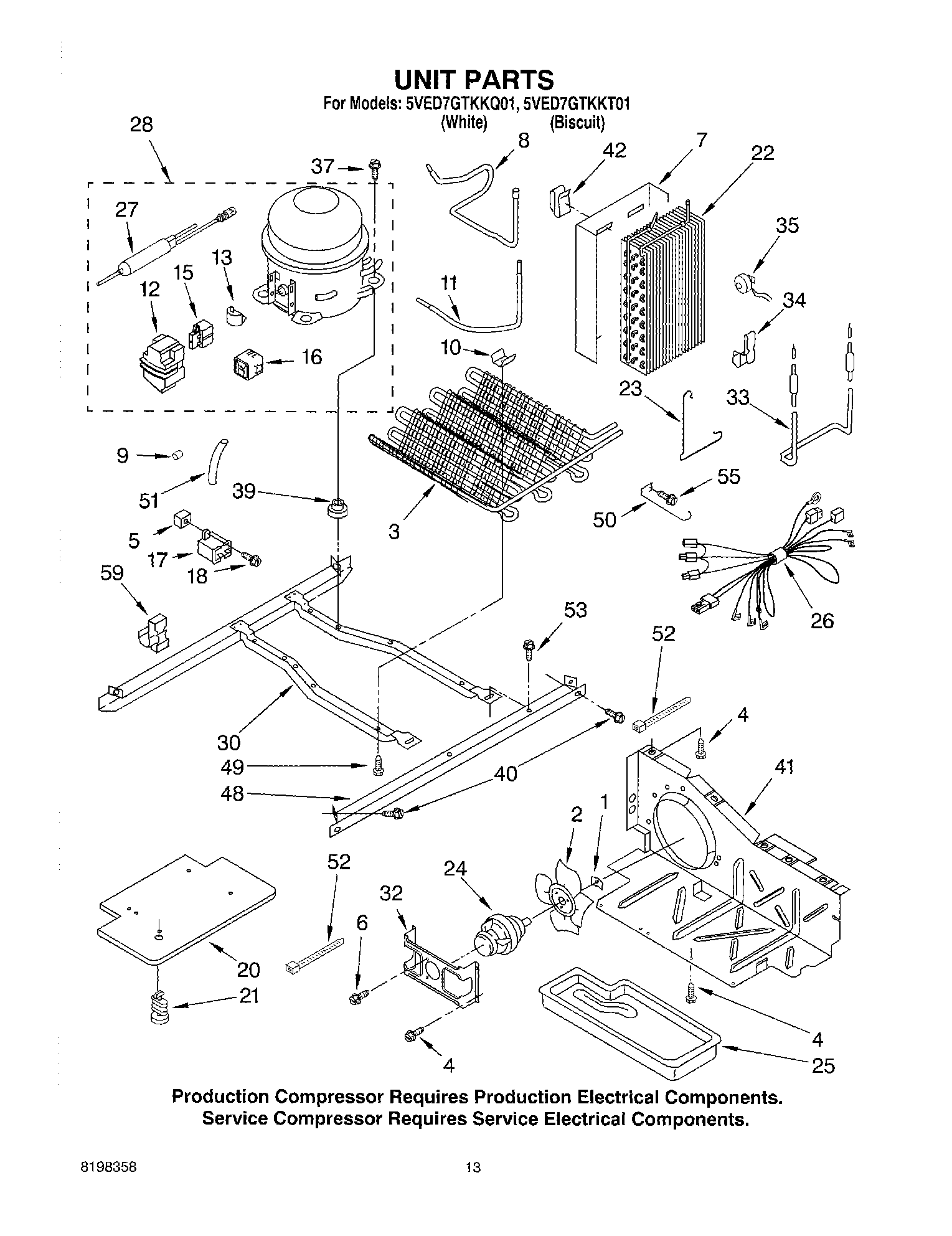

5VED7GTKKT01 08 – UNIT PARTS, PARTS NOT ILLUSTRATED

5VED7GTKKT01 08 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

5VED7GTKKT01 08 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
	72032 Whirlpool Touch Up Paint Black
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WPL ARI15422A5
	WPL ARI15421A1
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	WPW10190943 Whirlpool Refrigerator Icemaker
	Torx Key
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	WPL ARI15426A3
	WPL ARI15425A5
	WPL ARI15424A8
	212643 Whirlpool Refrigerator Permagum Sealer
	WPL ARI15423A9
	WP503695 Whirlpool Refrigerator Sealer
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Screw Grommet
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	WP2205765 Whirlpool Refrigerator Tube
9	WP2158826 Whirlpool Refrigerator Dampener
10	W10683556 Whirlpool Refrigerator Clip
11	Tube, Condenser to Heat Loop
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2176790 Whirlpool Refrigerator Overload
15	WP2262184 Whirlpool Refrigerator Start Relay
16	Start-Device, Combination (Start Relay and Overload) For Production Compressor Only)
17	WP2201147 Whirlpool Refrigerator Capacitor
18	W11693756 Whirlpool Screw Assembly
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309997 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
32	WP2181929 Whirlpool Refrigerator Bracket
33	WPW10123653 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	SCREW
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	2305374 Whirlpool Refrigerator Unit Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	WP489478 Whirlpool Refrigerator Screw
59	VALVE, ACCESS (5/8“)
59	876764 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	REFRIGERANT CHARGE 5.75 oz. (R-134A)
59	Following Parts Not Illustrated and Optional Parts Not Included
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	Clip, Wire & Tube
