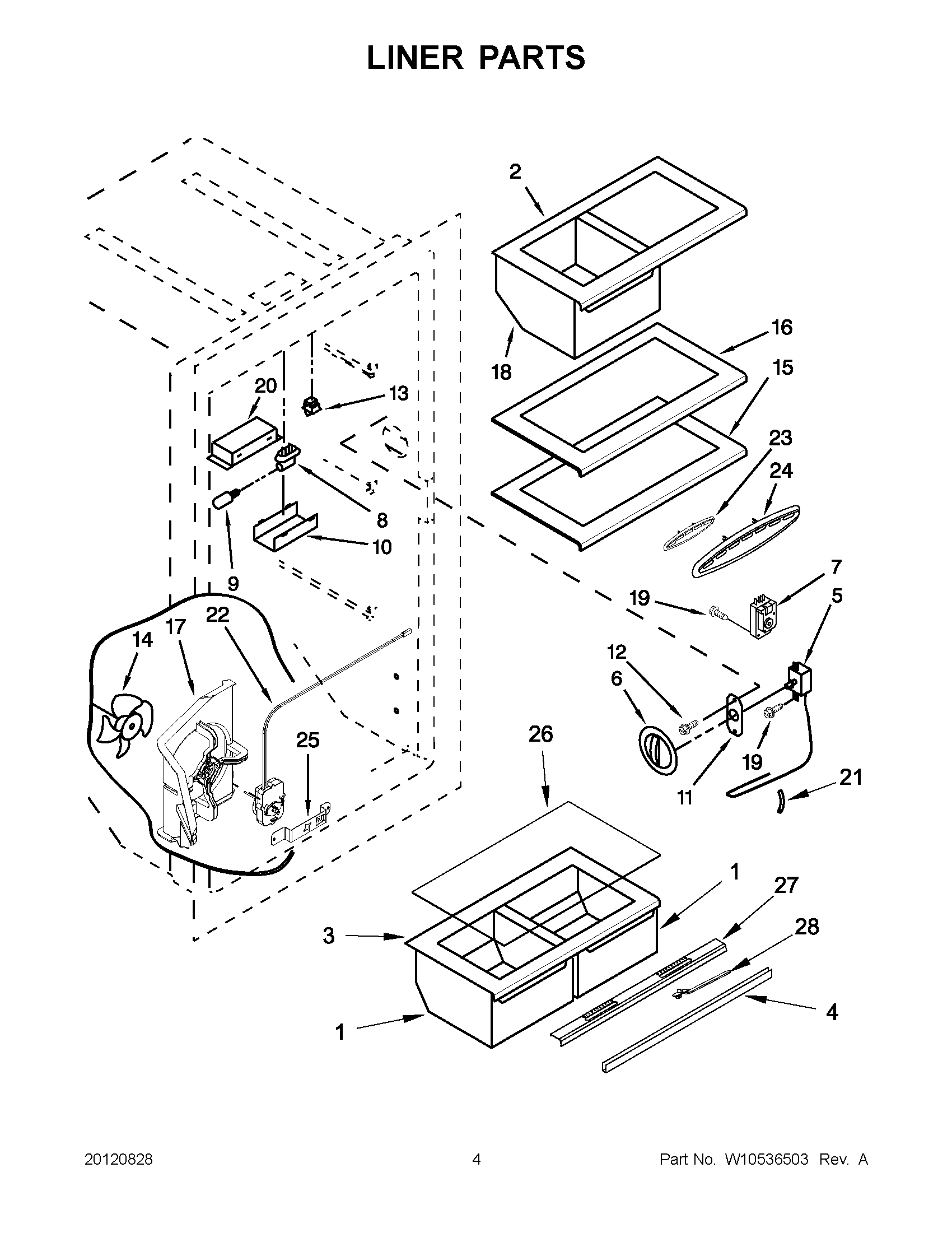

5VEL88TRAQ00 02 – LINER PARTS

Products

Position	Product
1	PAN, CRISPER
2	SHELF, UPPER MEAT KEEPER
3	SHELF, CRISPER (LOWER)
4	CHANNEL, CRISPER COVER SUPPORT
5	WPW10424991 Whirlpool Refrigerator Thermostat
6	KNOB, THERMOSTAT
7	TIMER, DEFROST
8	W11447232 Whirlpool Refrigerator Socket
9	WP67002552 Whirlpool Refrigerator Light Bulb
10	SHIELD, LIGHT
11	PLATE, THERMOSTAT
12	SCREW
13	SWITCH, LIGHT
14	BLADE, CONDENSER FAN
15	SHELF, MIDDLE
16	SHELF, TOP
17	SHROUD, CONDENSER MOTOR
18	PAN, UPPER CRISPER
19	SCREW
20	HOUSING, LIGHT SOCKET
21	TUBING, THERMOSTAT BARRIER
22	MOTOR, CONDENSER
23	AIR DIFFUSER, SHORT
24	AIR DIFFUSER, LONG
25	WPW10467271 Whirlpool Bracket
26	GLASS, SHELF
27	TRIM, COVER CRISPER
28	DAMPER, HUMIDITY CONTROL
