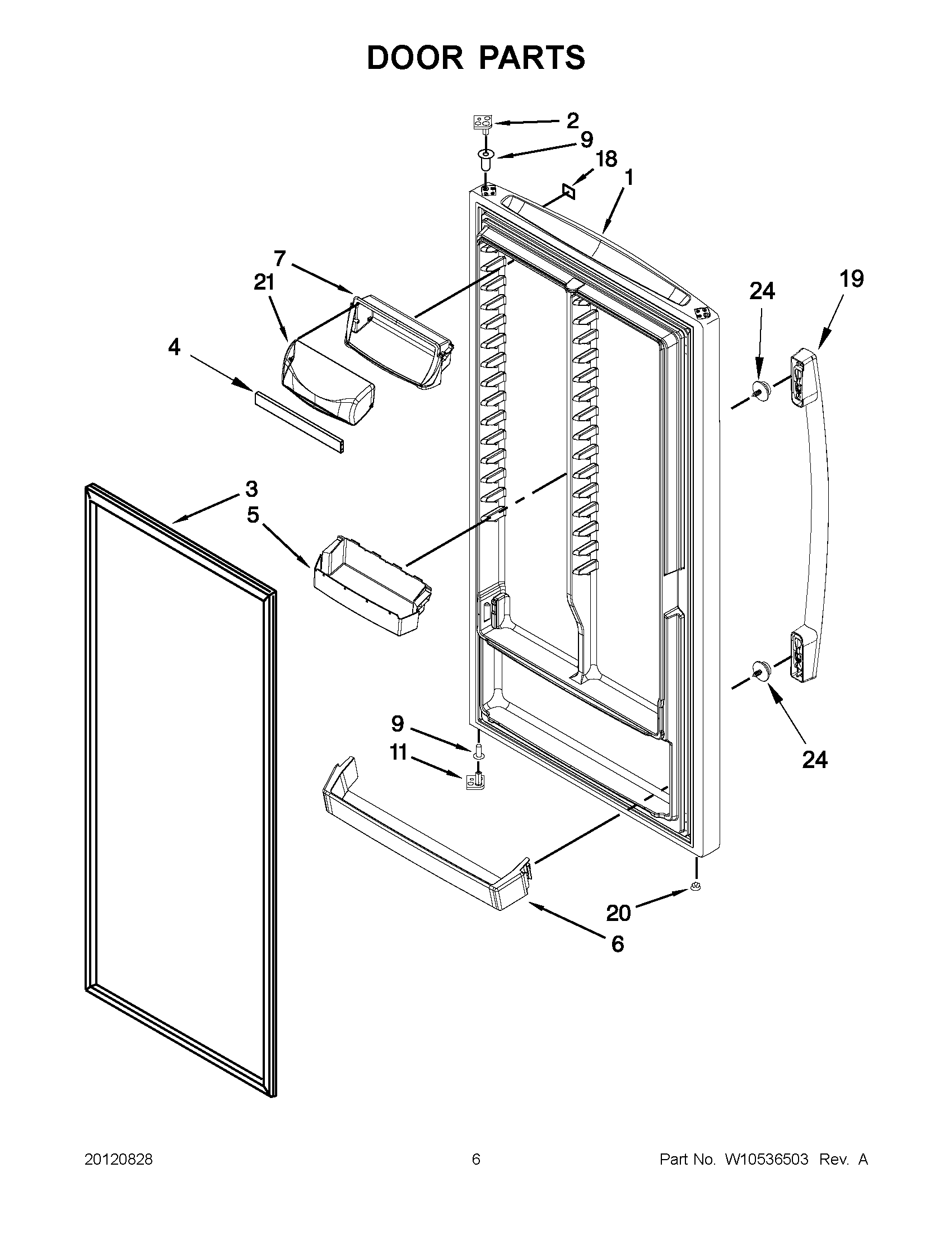

5VEL88TRAQ00 03 – DOOR PARTS

Products

PositionProduct
1EXTERIOR DOOR (INCLUDES GASKET) (WHITE)
1EXTERIOR DOOR (INCLUDES GASKET) (STAINLESS STEEL)
2STOP, DOOR (TOP) (NATURAL)
2STOP, DOOR (TOP) (SILVER)
3GASKET (SILVER)
3GASKET (WHITE)
4RAIL, DOOR SHELF
5BIN, DOOR
6RAIL, DOOR (LOWER)
7HOUSING, DAIRY COMPARTMENT
9BUSHING, HINGE (SILVER)
9BUSHING, HINGE (WHITE)
11STOP, DOOR (BOTTOM ) (NATURAL)
18W11178521 Whirlpool Dishwasher Nameplate
19WPW10257118K Whirlpool Refrigerator Handle
19HANDLE (WHITE)
20PLUG, VENT
21DOOR, COMPARTMENT
24WPW10288153 Whirlpool Refrigerator Screw
