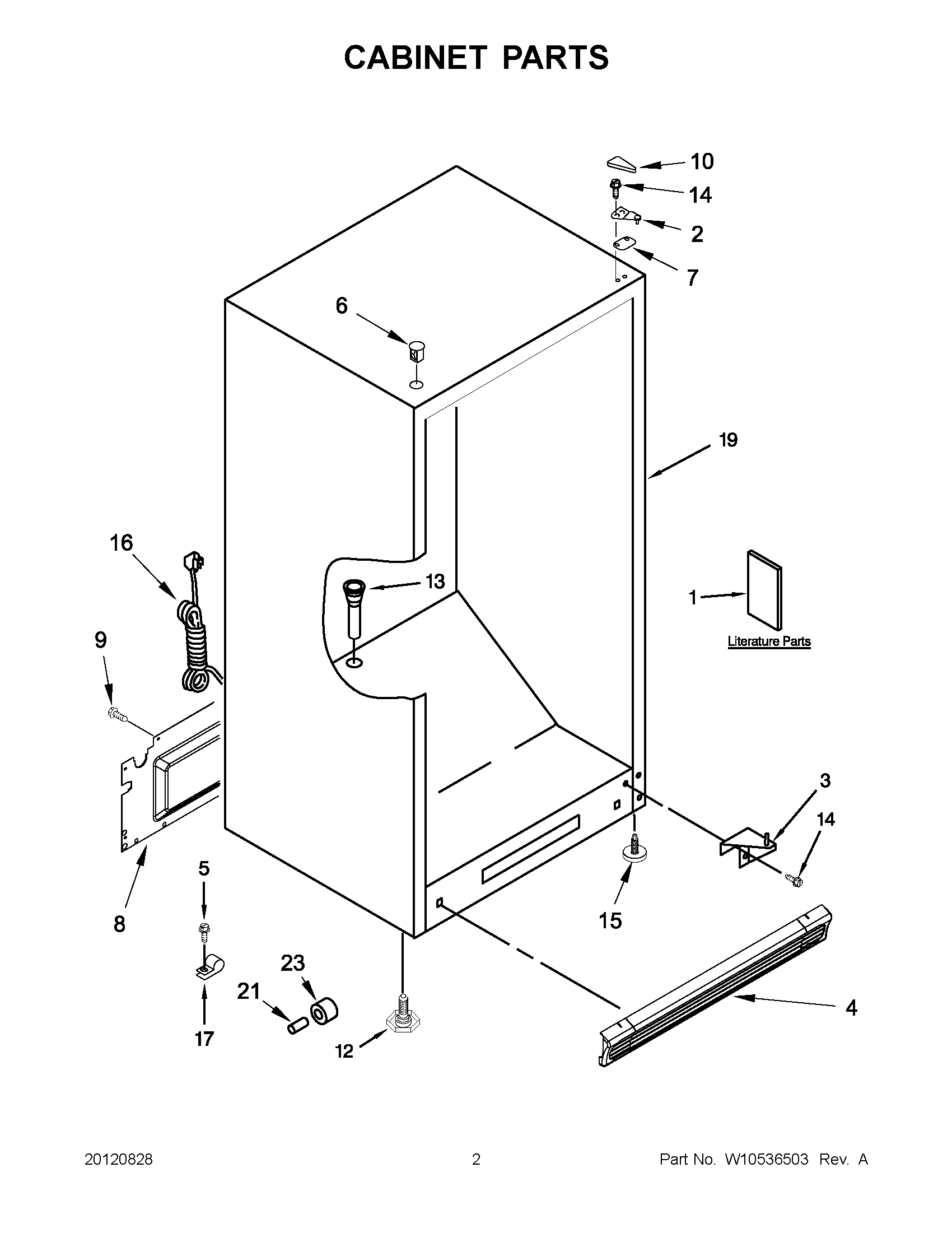

5VEL88TRAS00 01 – CABINET PARTS

Products

Position	Product
1	DIAGRAM, WIRING
1	OWNERS MANUAL
2	TOP HINGE (WHITE)
2	TOP HINGE (BLACK)
3	BOTTOM HINGE (WHITE)
3	BOTTOM HINGE (SILVER)
4	GRILLE (WHITE)
4	GRILLE (SILVER)
5	SCREW
6	PLASTIC, GROMMET
7	SHIM
8	COVER, UNIT
9	SCREW
10	COVER, HINGE (WHITE)
10	COVER, HINGE (SILVER)
12	LEG, LEVELER
13	GROMMET, DRAIN
14	SCREW
15	WPW10141622 Whirlpool Leveler
16	W10123575 Whirlpool Refrigerator Power Cord
17	CLAMP, TUBE
19	CABINET (NOT A SERVICEABLE PART)
21	AXLE
23	ROLLER, FRONT
