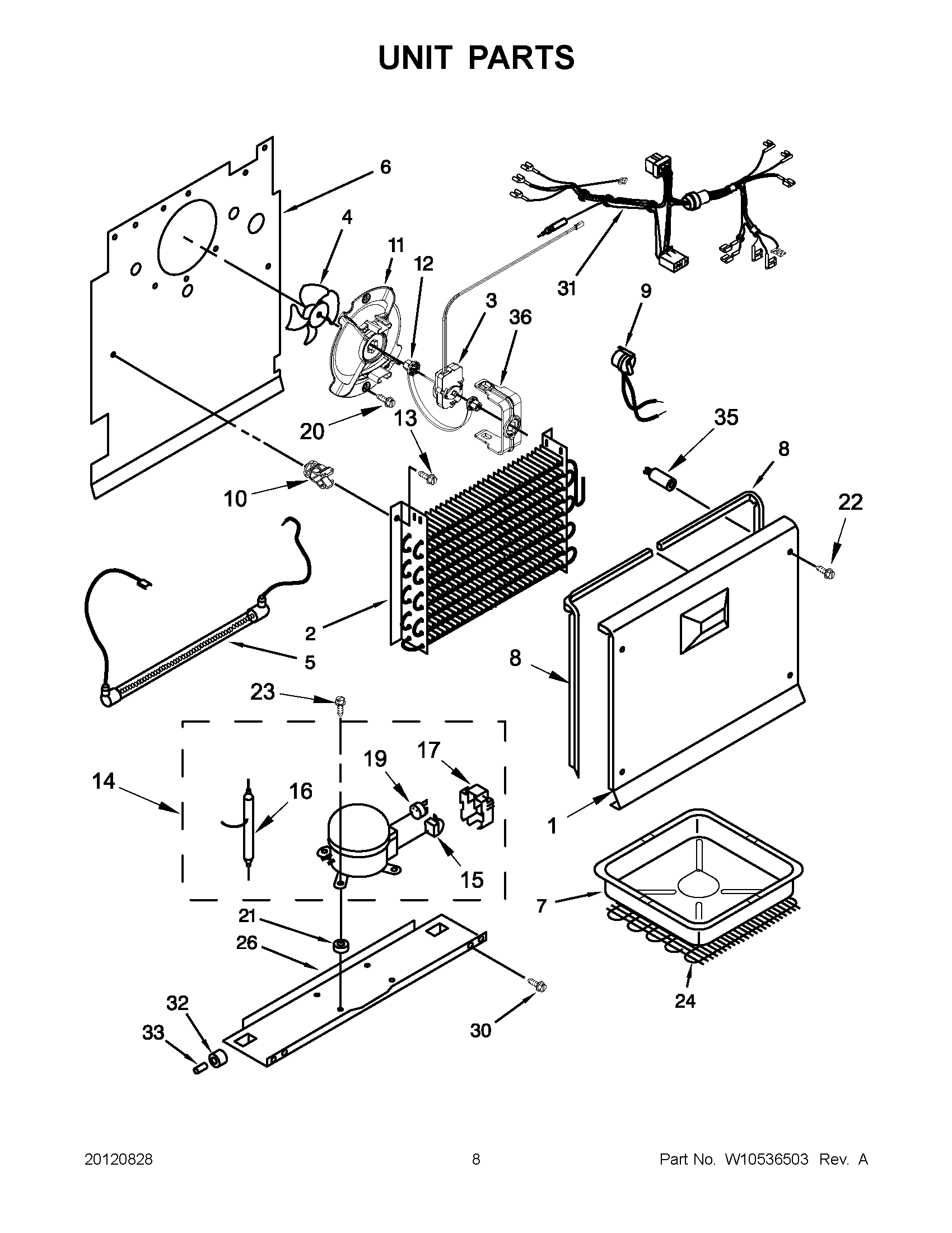

5VEL88TRAS00 04 – UNIT PARTSadmin2025-04-26T10:49:10+00:005VEL88TRAS00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1 | COVER, EVAPORATOR |
| 2 | EVAPORATOR |
| 3 | WPW10312014 Whirlpool Evaporator Motor |
| 4 | WP2169142 Whirlpool Fan Blade |
| 5 | W10426849 Whirlpool Refrigerator Heater |
| 6 | W10452115 Whirlpool Refrigerator Heat Shield |
| 7 | PAN, DRAIN |
| 8 | GASKET, COVER EVAPORATOR (RIGHT SIDE) |
| 8 | GASKET, COVER EVAPORATOR (LEFT SIDE) |
| 9 | W10491892 Whirlpool Refrigerator Defrost Bimetal |
| 10 | CLIP, EVAP (2) |
| 11 | W10457575 Whirlpool Refrigerator Evaporator Cover |
| 12 | W11690160 Whirlpool Grommet |
| 13 | SCREW |
| 14 | COMPRESSOR (INCLUDES ITEMS 15, 16, 17 AND 19) |
| 15 | RELAY |
| 16 | W10843121 Whirlpool Refrigerator Tube |
| 17 | WP61002138 Whirlpool Refrigerator Terminal Cover |
| 19 | OVERLOAD |
| 20 | SCREW |
| 21 | WP2163786 Whirlpool Refrigerator Grommet |
| 22 | SCREW |
| 23 | BOLT, COMPRESSOR |
| 24 | CONDENSER |
| 26 | PAN, COMPRESSOR |
| 30 | SCREW |
| 31 | HARNESS, UNIT |
| 32 | ROLLER, FRONT |
| 33 | AXLE |
| 35 | GROMMET |
| 36 | CLIP, EVAPORATOR MOTOR |
