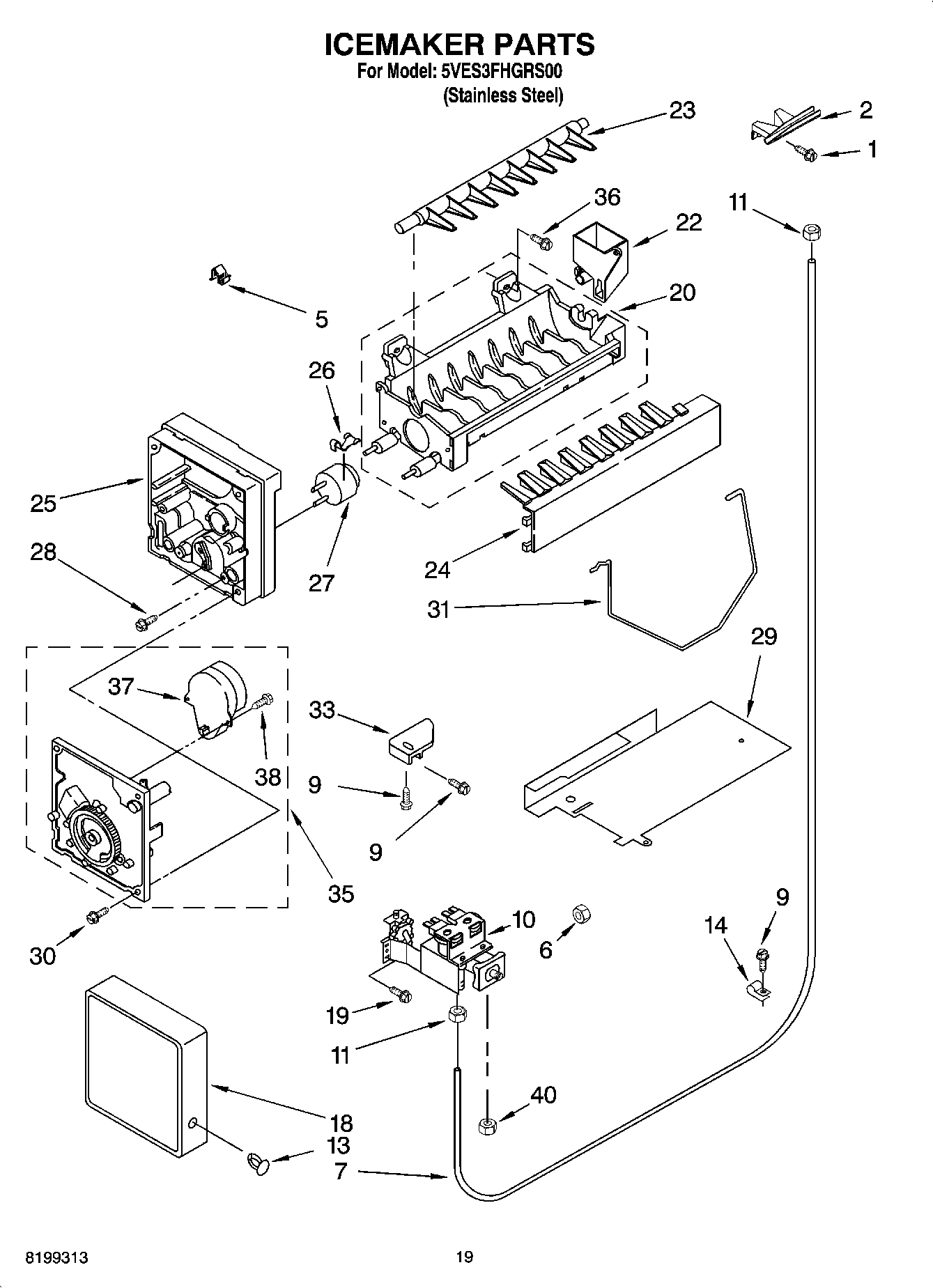

5VES3FHGRS00 12 – ICEMAKER PARTS, OPTIONAL PARTS

5VES3FHGRS00 12 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

5VES3FHGRS00 12 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 876029
	212643 Whirlpool Refrigerator Permagum Sealer
	WPL 799833
	Enamel, Black (1 Qt. Uncut)
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WP505587 Whirlpool Refrigerator Sealer
	TAPE, VINYL (3/4 X 108“)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	WPL ARI15442A7
	WP542638 Whirlpool Refrigerator Grease
	WPL ARI15441A2
	WPL ARI15440A6
	WPL ARI15439A5
	WPL ARI15438A1
	WPW10312301 Whirlpool Refrigerator Ice Container
	Torx Key
2	W11505385 Whirlpool Refrigerator Chute
5	WP628379 Whirlpool Refrigerator Clip
6	Nut, Compression
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
13	WP489115 Whirlpool Refrigerator Rivet
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10122523 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	2256178 Whirlpool Shield Assembly
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	W11500948 Whirlpool Refrigerator Bracket
35	W10190933 Whirlpool Refrigerator Motor Assembly
36	WP488163 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
