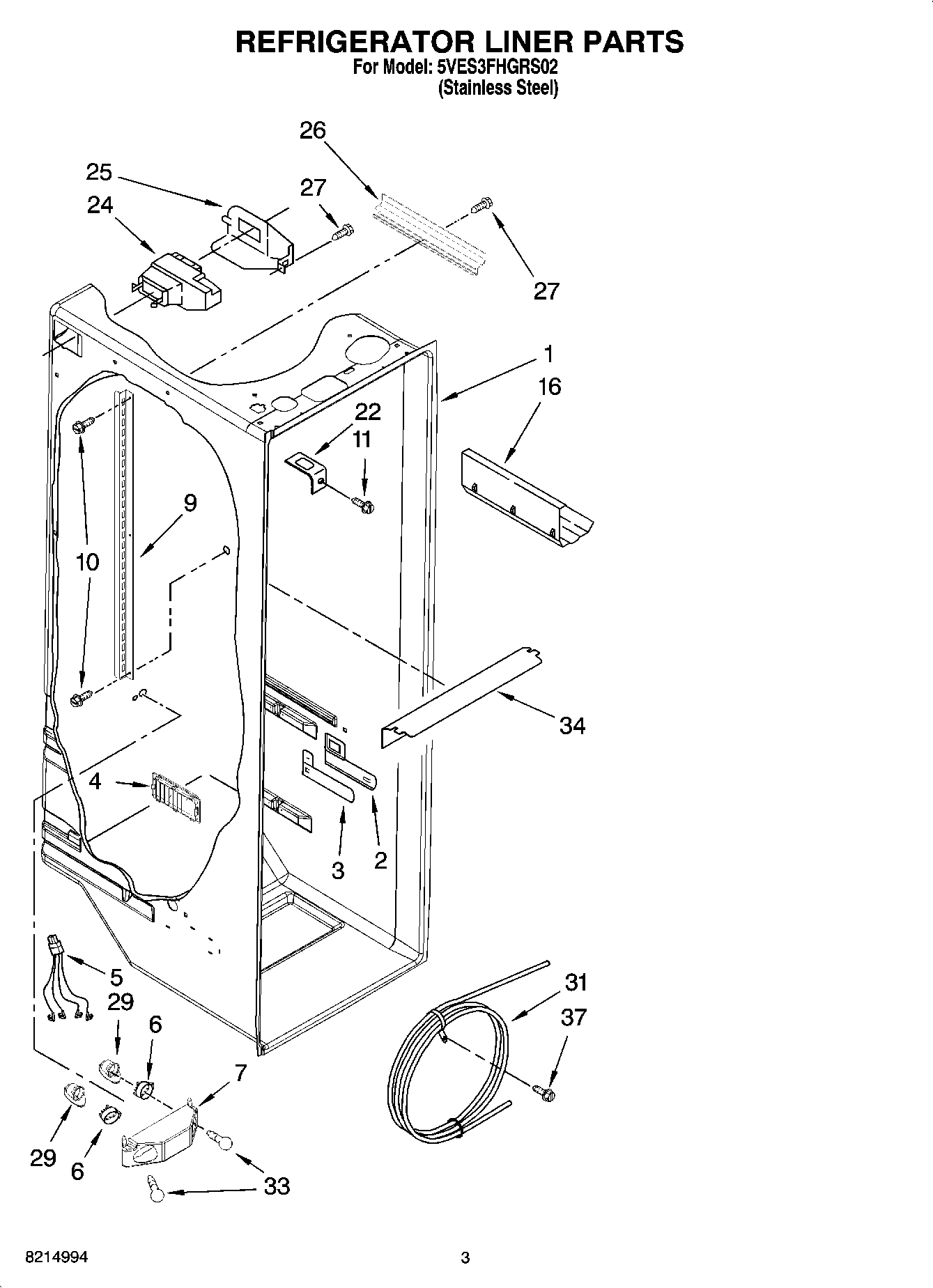

5VES3FHGRS02 02 – REFRIGERATOR LINER PARTS

5VES3FHGRS02 02 – REFRIGERATOR LINER PARTS

Written by

in

5VES3FHGRS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52311637 Whirlpool Refrigerator Wire Harness
6WP2175210 Whirlpool Refrigerator Shroud
7Bracket, Dual Crisper Light
9Shelf Ladder
10WP489478 Whirlpool Refrigerator Screw
11WP488488 Whirlpool Refrigerator Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
24WPW10129864 Whirlpool Refrigerator Diffuser
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33WP67002552 Whirlpool Refrigerator Light Bulb
34Light Lens
37Screw (2)
