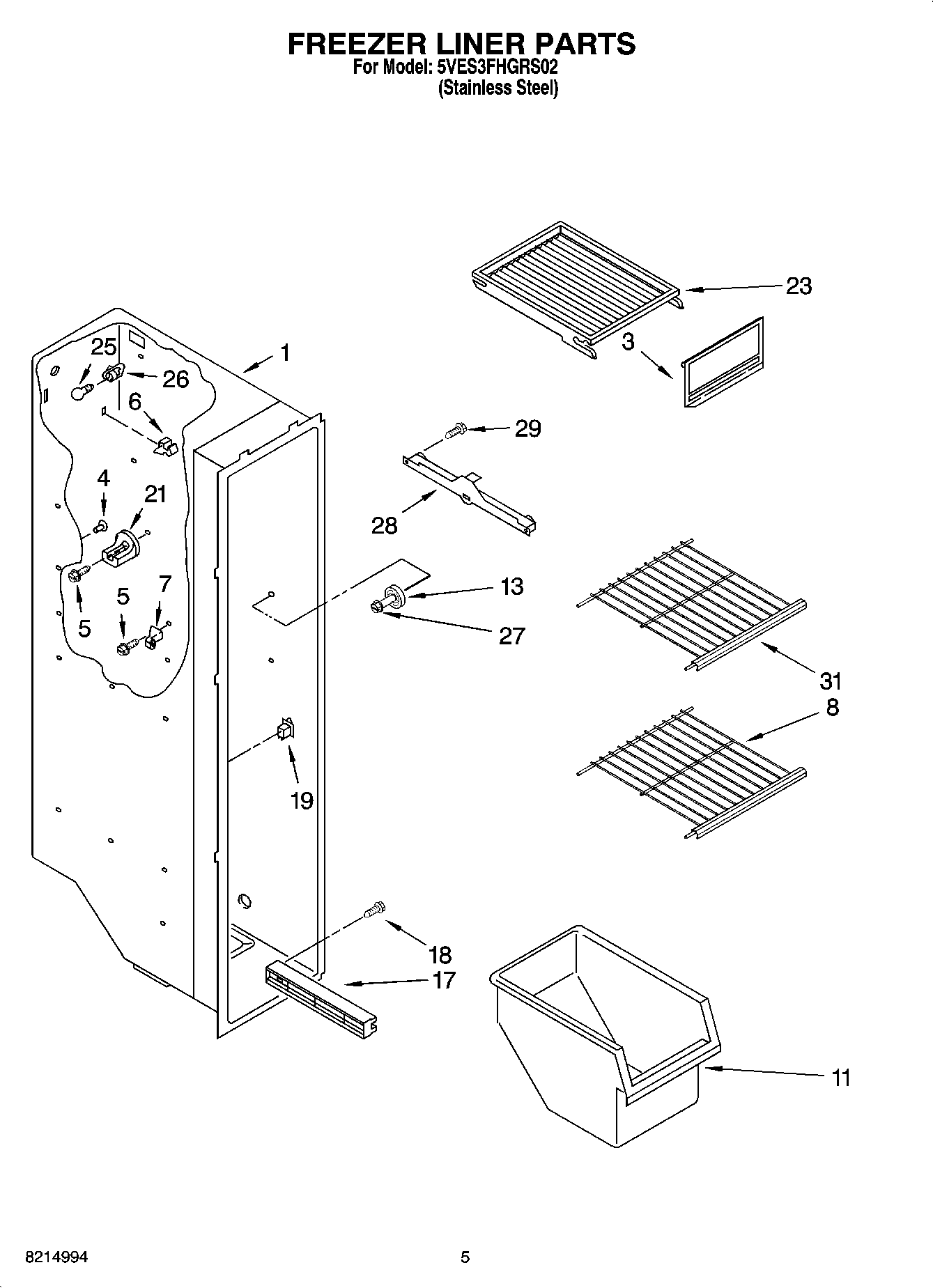

5VES3FHGRS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
3	2171712 Whirlpool Refrigerator Ice Door
4	Grommet
5	W10142289 Whirlpool Air Conditioner Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (2)
11	Bin, Freezer
13	WP2196483 Whirlpool Refrigerator Shelf Stud
17	Slide, Basket (Left Side)
17	WP2261449 Whirlpool Refrigerator Track
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
21	Stud, Rear
23	Slide, Ice Door
25	WP67002552 Whirlpool Refrigerator Light Bulb
26	4387478 Whirlpool Refrigerator Light Socket
27	WP3400806 Whirlpool Screw
28	W10845585 Whirlpool Refrigerator Track
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
31	WP2174249K Whirlpool Refrigerator Wire Shelf
