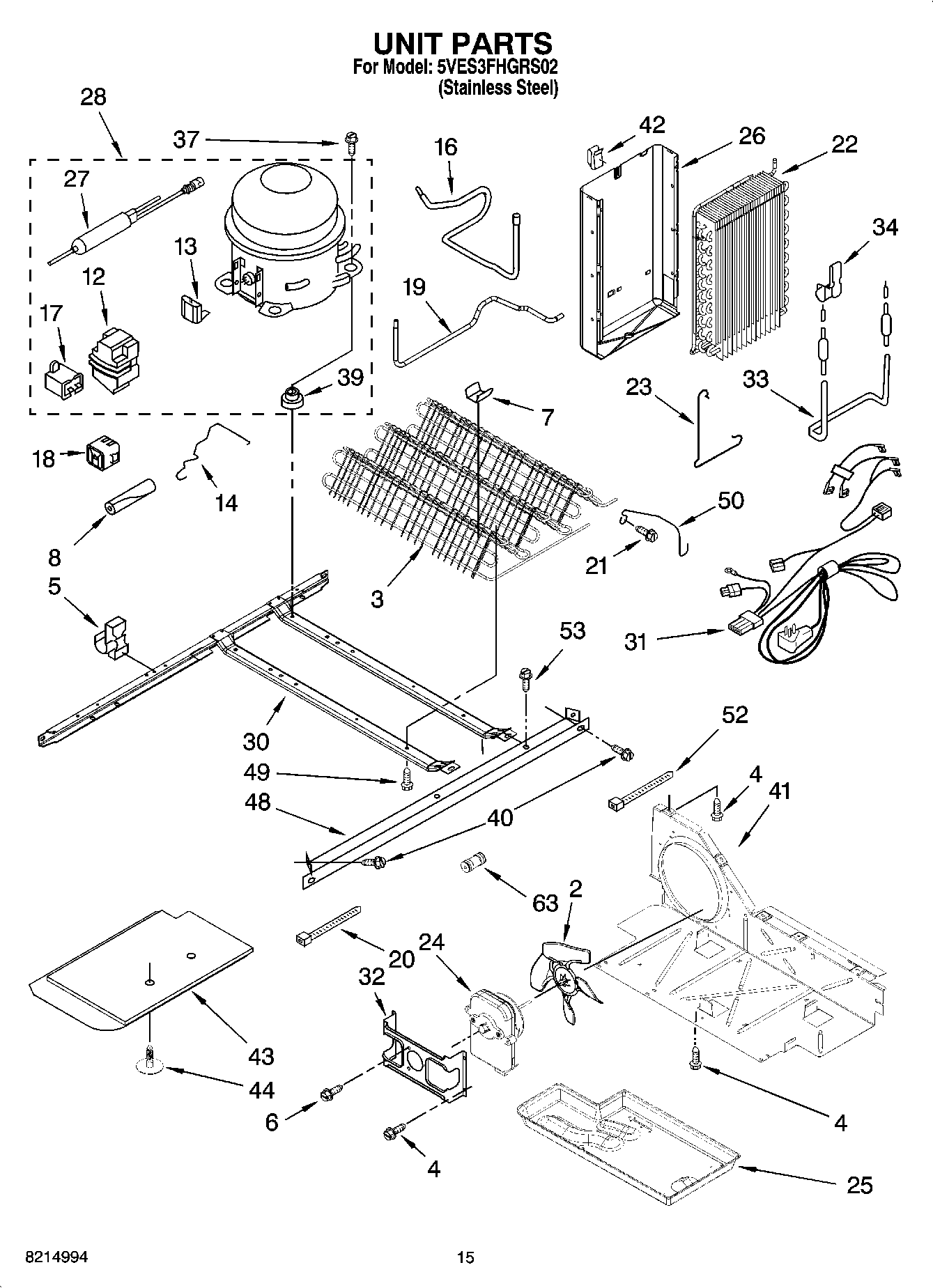

5VES3FHGRS02 09 – UNIT PARTS

5VES3FHGRS02 09 – UNIT PARTS

Written by

in

5VES3FHGRS02 09 – UNIT PARTS

Products

PositionProduct
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6WP8533993 Whirlpool Refrigerator Screw
7W10683556 Whirlpool Refrigerator Clip
8SLEEVE
12WP61002138 Whirlpool Refrigerator Terminal Cover
134388786 Whirlpool Refrigerator Overload
14Strap, Bale
162205764 Whirlpool Refrigerator Tube
172321245 Whirlpool Refrigerator Capacitor
18Start-Device, Combination (Start Relay and Overload) for Production
192261599 Whirlpool Refrigerator Tube
21WP489478 Whirlpool Refrigerator Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
24WP2321271 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27WPW10143759 Whirlpool Dryer Filter
28W10183407 Whirlpool Refrigerator Compressor
302304903 Whirlpool Refrigerator Frame
31Unit, Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2313330 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
39876811 Whirlpool Grommet
39W11661108 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
63978026 Whirlpool Refrigerator Primary Valve
63VALVE, ACCESS (5/8“)
63WP4373559 Whirlpool Fitting
63Following Parts Not Illustrated and Optional Parts Not Included
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63876764 Whirlpool Refrigerator Primary Valve
63REFRIGERANT CHARGE 5.00 oz. (R-134A)
