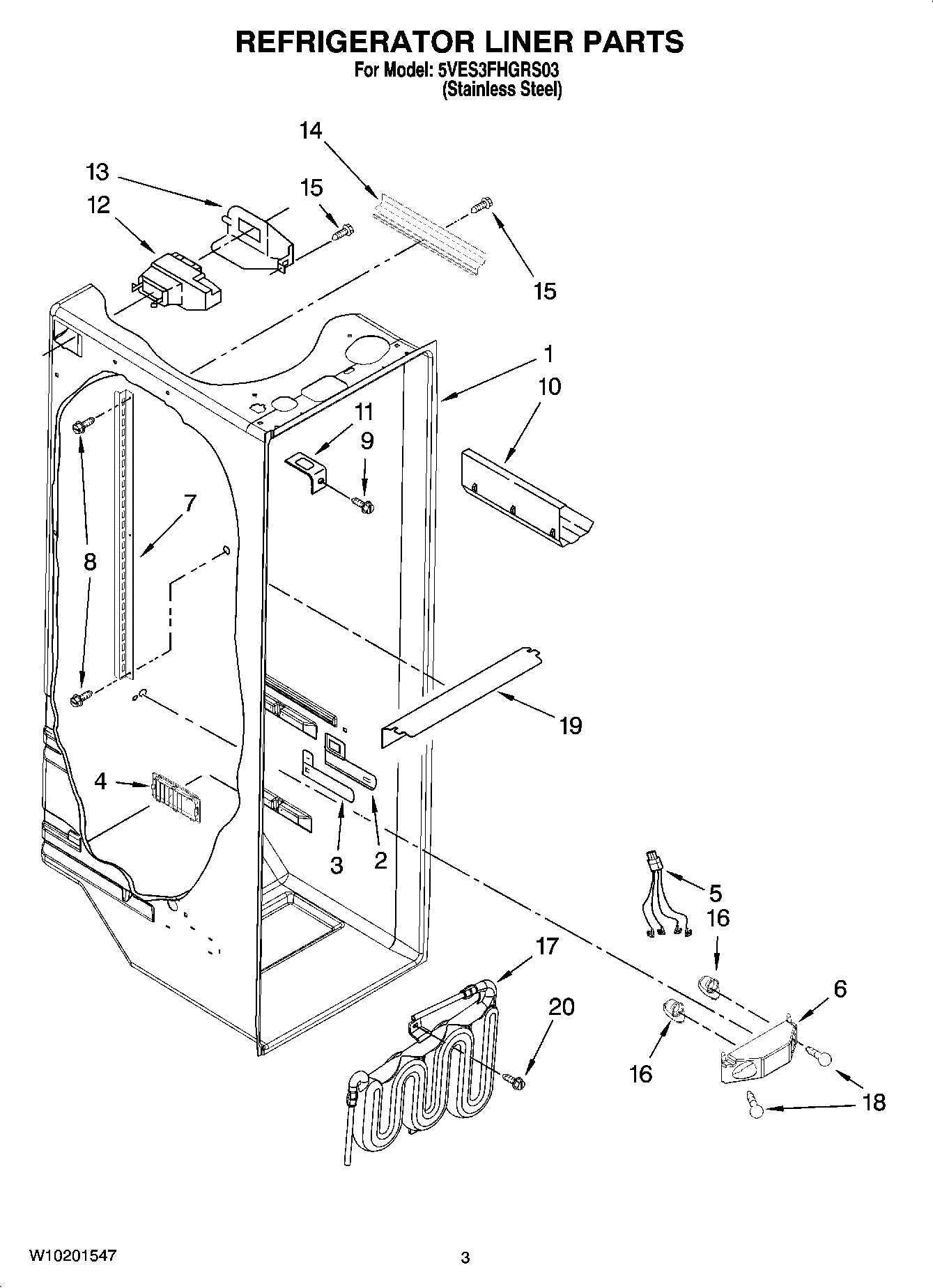

5VES3FHGRS03 02 – REFRIGERATOR LINER PARTS

5VES3FHGRS03 02 – REFRIGERATOR LINER PARTS

Written by

in

5VES3FHGRS03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Wire Harness, Dual Crisper
6Bracket, Dual Crisper Light
7Shelf Ladder
8WP489478 Whirlpool Refrigerator Screw
9WP488488 Whirlpool Refrigerator Screw
10W10777924 Whirlpool Refrigerator Wine Rack
11WP2256085 Whirlpool Refrigerator Retainer
12WPW10151378 Whirlpool Refrigerator Diffuser
13WP2212240 Whirlpool Refrigerator Cover
142150331 Whirlpool Refrigerator Wire Cover
15W10759522 Whirlpool Screw
16W11447232 Whirlpool Refrigerator Socket
17RESERVOIR
18WP67002552 Whirlpool Refrigerator Light Bulb
19Light Lens
20Screw (2)
