5VES3FHGRS03 04 – FREEZER LINER PARTS

5VES3FHGRS03 04 – FREEZER LINER PARTS

Written by

in

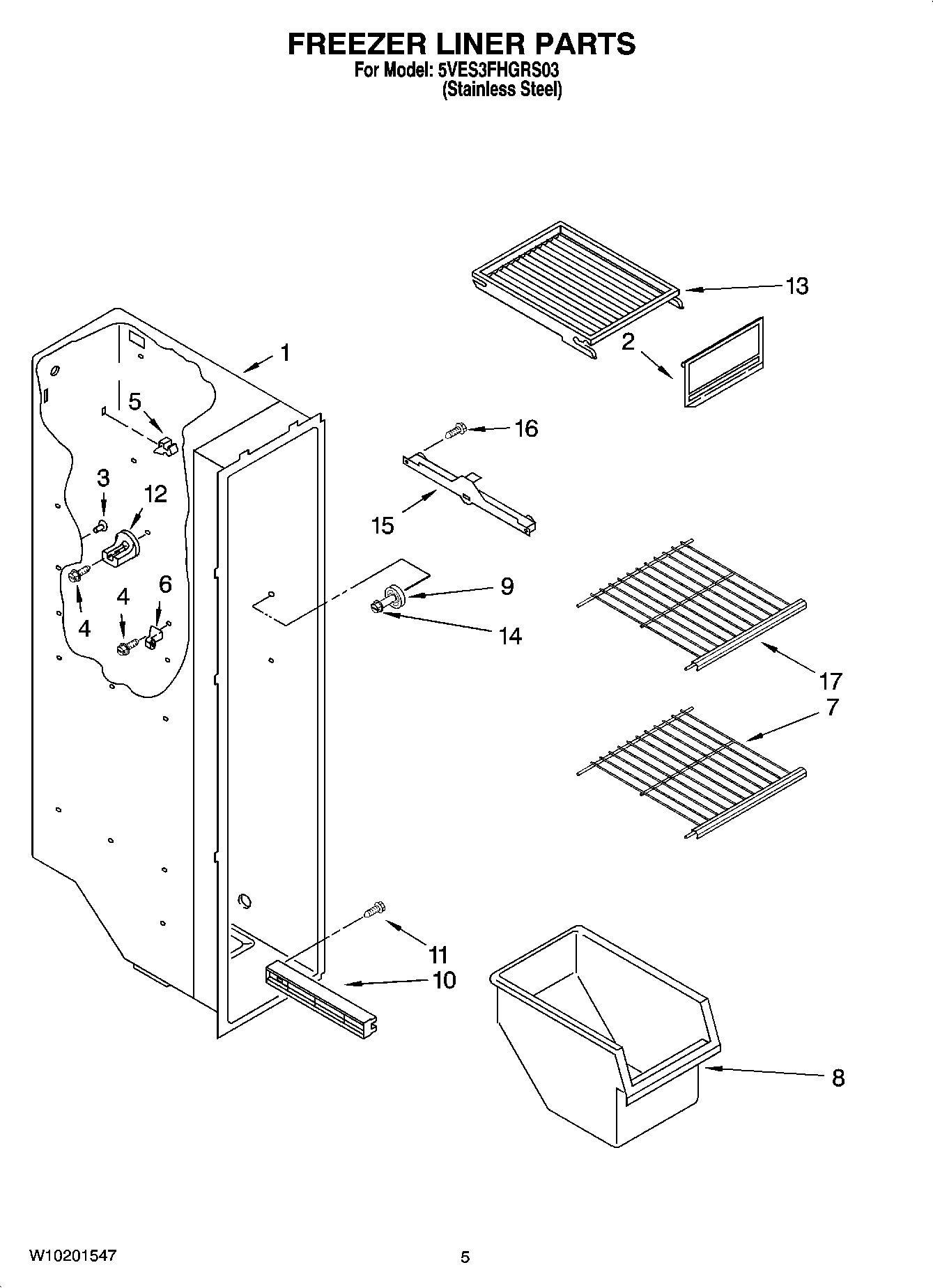

5VES3FHGRS03 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
22171712 Whirlpool Refrigerator Ice Door
3Grommet
4W10142289 Whirlpool Air Conditioner Screw
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7Shelf (2)
8Bin, Freezer
9WP2196483 Whirlpool Refrigerator Shelf Stud
10Slide, Basket (Left Side)
10WP2261449 Whirlpool Refrigerator Track
11W10759522 Whirlpool Screw
12Stud, Rear
13Slide, Ice Door
14WP3400806 Whirlpool Screw
15W10845583 Whirlpool Refrigerator Track
15W10845585 Whirlpool Refrigerator Track
16718257 Whirlpool Dishwasher Screw
17WP2174249K Whirlpool Refrigerator Wire Shelf
