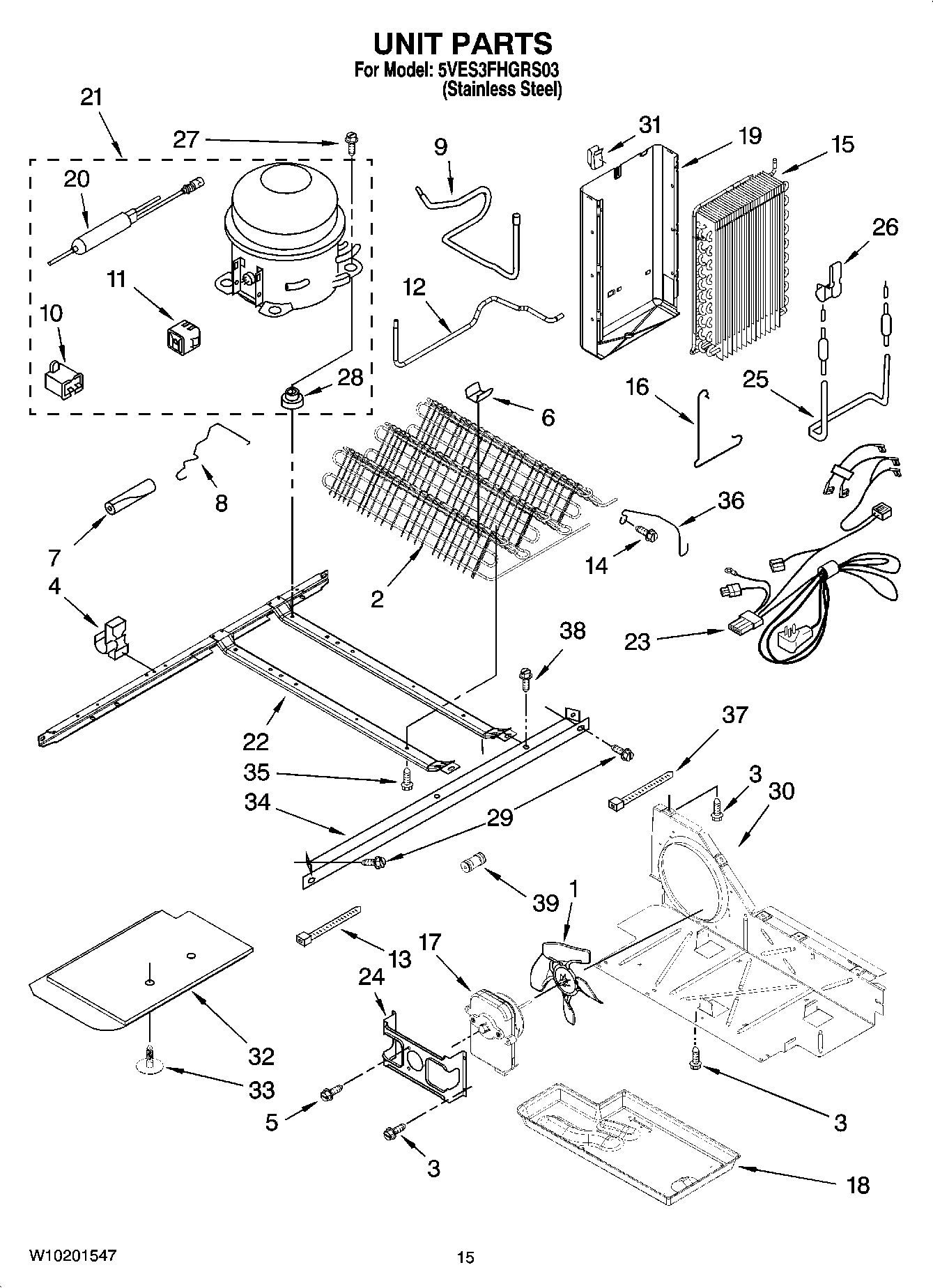

5VES3FHGRS03 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 5.00 oz. (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	Clip, Wire & Tube
5	WP8533993 Whirlpool Refrigerator Screw
6	W10683556 Whirlpool Refrigerator Clip
7	SLEEVE
8	Strap, Bale
9	2205764 Whirlpool Refrigerator Tube
10	2321245 Whirlpool Refrigerator Capacitor
11	WP2312007 Whirlpool Refrigerator Start Device
12	W10858105 Whirlpool Refrigerator Tube
14	WP489478 Whirlpool Refrigerator Screw
15	WP2188822 Whirlpool Refrigerator Evaporator
16	Clamp
17	WP2321271 Whirlpool Refrigerator Condenser Motor
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	Heat Shield
20	WPW10143759 Whirlpool Dryer Filter
21	W10183407 Whirlpool Refrigerator Compressor
22	2304903 Whirlpool Refrigerator Frame
23	Unit, Harness
24	WP2181929 Whirlpool Refrigerator Bracket
25	WPW10123612 Whirlpool Heater Assembly
26	W11623163 Whirlpool Refrigerator Clip
28	876811 Whirlpool Grommet
28	W11661108 Whirlpool Grommet
29	489340 Whirlpool Refrigerator Screw
30	W10896764 Whirlpool Refrigerator Air Baffle
31	Clip, Heat Shield
32	W11115203 Whirlpool Control Panel
33	489396 Whirlpool Refrigerator Clip
34	Unit Mounting Rail
35	W11544659 Whirlpool Refrigerator Screw
36	Guard, Fan
37	WPW10339879 Whirlpool Wire Tie
38	WP489427 Whirlpool Refrigerator Screw
39	WPW10334458 Whirlpool Refrigerator Connector
