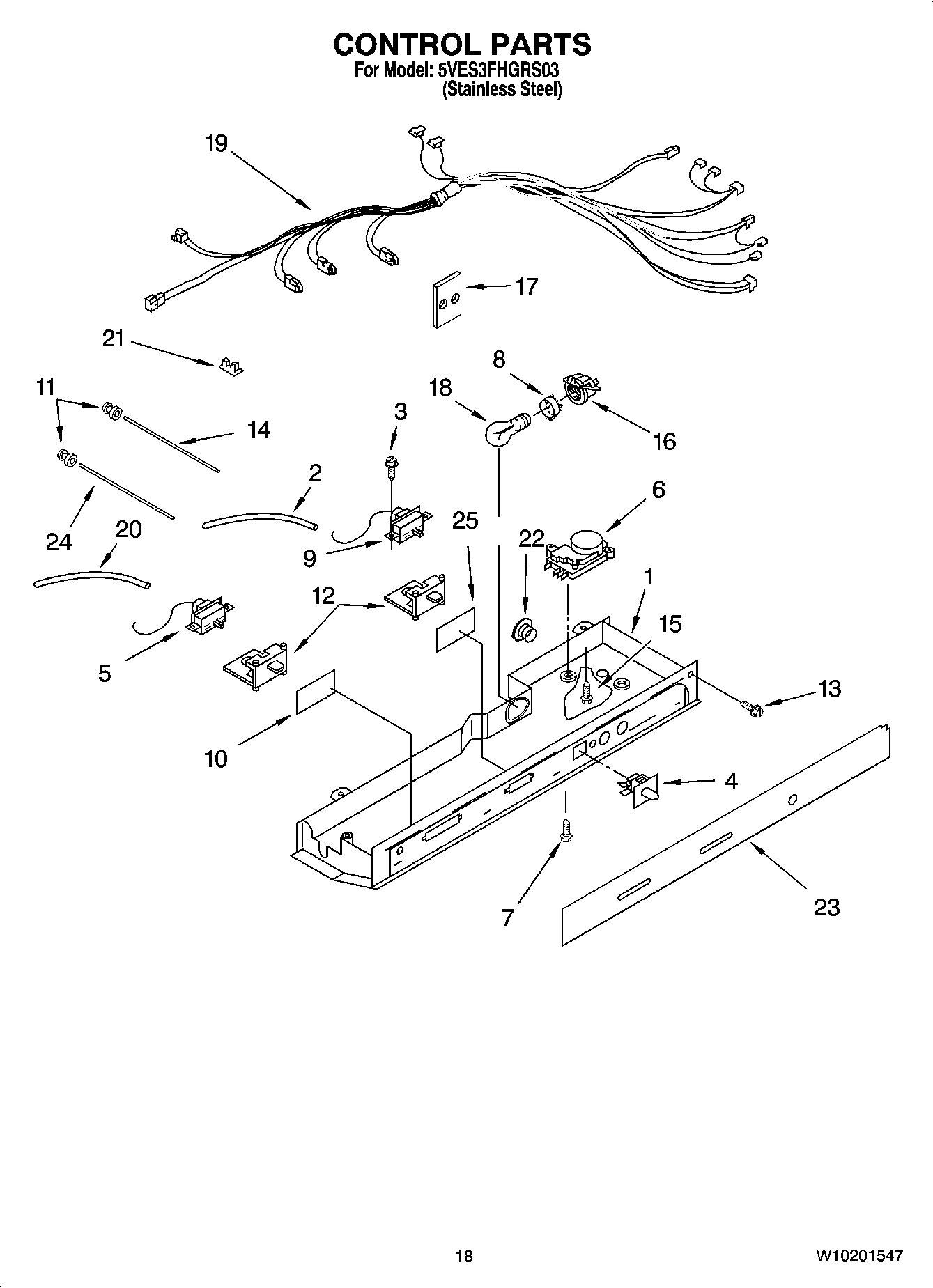

5VES3FHGRS03 11 – CONTROL PARTS

5VES3FHGRS03 11 – CONTROL PARTS

Written by

in

5VES3FHGRS03 11 – CONTROL PARTS

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2321289 Whirlpool Refrigerator Thermostat
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8SHROUD-LGHT SOCKET
9WP2321305 Whirlpool Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
15WP488488 Whirlpool Refrigerator Screw
16W11447232 Whirlpool Refrigerator Socket
17Heat Shield
18WP67002552 Whirlpool Refrigerator Light Bulb
19W10129766 Whirlpool Wire Harness
21CLIP, WIRING
22940014 Whirlpool Refrigerator Primary Button Plug
23Escutcheon, Control Box
24Light Bar (FC)
25Window
