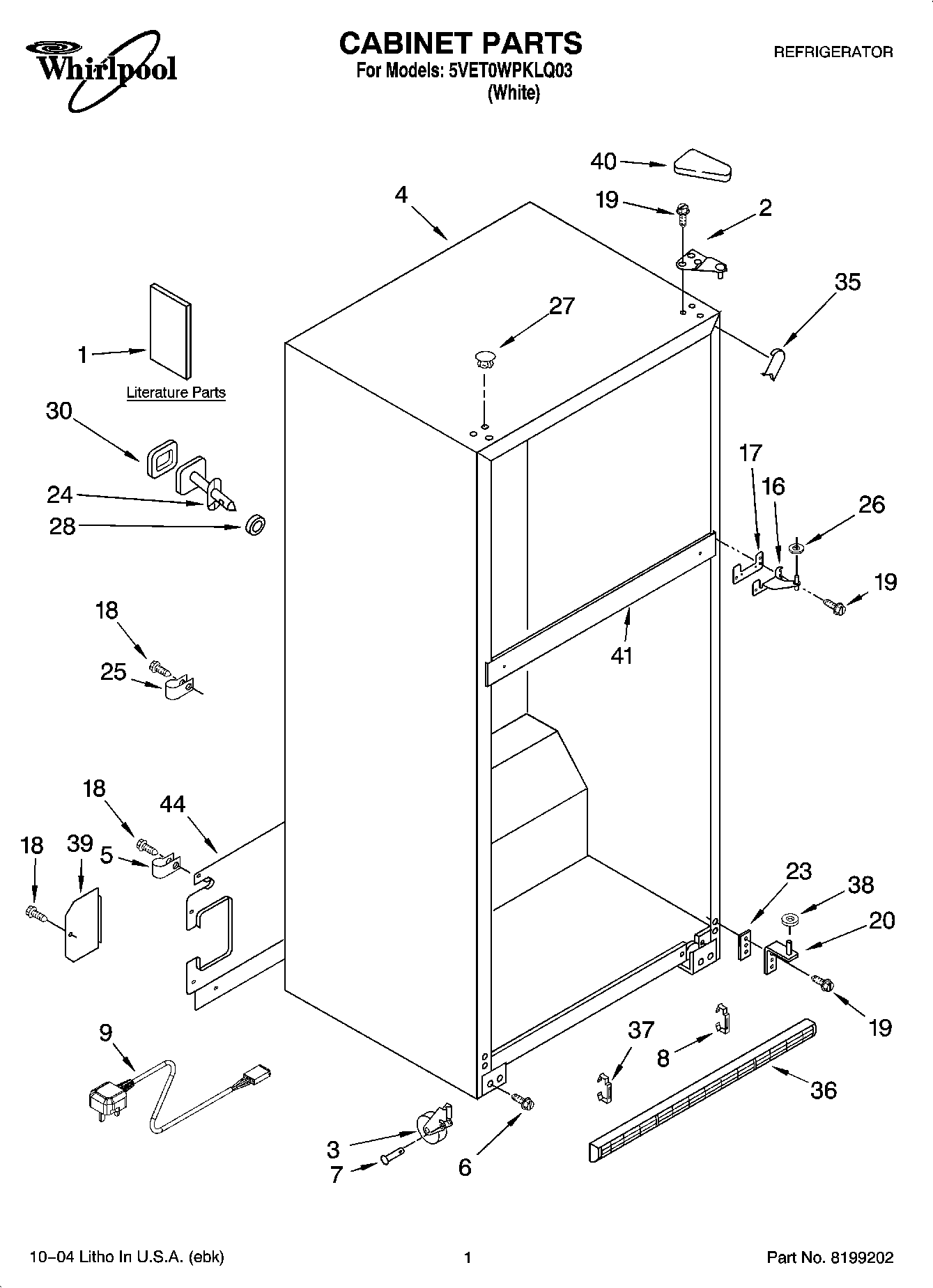

5VET0WPKLQ03 01 – CABINET PARTS

5VET0WPKLQ03 01 – CABINET PARTS

Written by

in

5VET0WPKLQ03 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677967
1Door Reversal Instructions
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Cabinet (Not A Serviceable Part)
5WP488366 Whirlpool Refrigerator Clamp
6WP3400504 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
82254385 Whirlpool Refrigerator Clip
9Cord, Service
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP489497 Whirlpool Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
25489348 Whirlpool Refrigerator Tube Clamp
26WP489467 Whirlpool Hinge Shim
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35WPW10283959 Whirlpool Refrigerator Filler
36WP2254386 Whirlpool Refrigerator Grille
37CLIP, GRILLE
38WP487576 Whirlpool Washer
39Cover, Water Valve
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44WP2189475 Whirlpool Refrigerator Unit Cover
