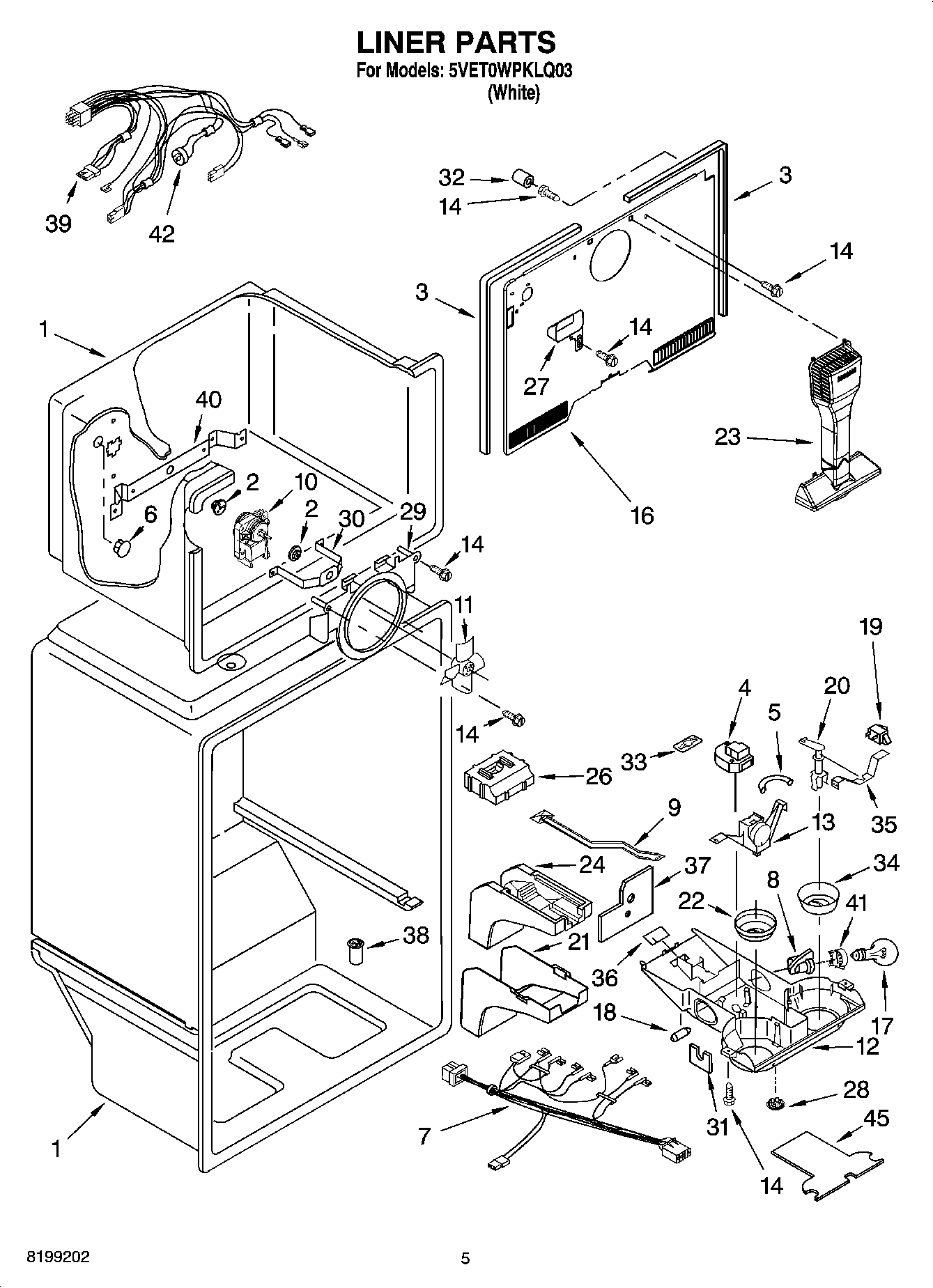

5VET0WPKLQ03 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2321259 Whirlpool Refrigerator Defrost Timer
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
72310174 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WP2321273 Whirlpool Refrigerator Evaporator Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14WP489478 Whirlpool Refrigerator Screw
16Cover-Evaporator
17WP67002552 Whirlpool Refrigerator Light Bulb
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Post, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Diffuser, Top
27Cover, Hole
28940014 Whirlpool Refrigerator Primary Button Plug
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31Foil, Control Box
32WP487996 Whirlpool Refrigerator Cap Tube
33Clip, Defrost Timer
34Knob, Damper
35Bracket, Damper Knob
36WP2205079 Whirlpool Refrigerator Seal
37Shield, heat
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment (Includes Illus. 35)
40Bracket, Evap. Fan, Rear
41WP2175210 Whirlpool Refrigerator Shroud
42WP2182381 Whirlpool Refrigerator Bimetallic Defrost
45Shield
