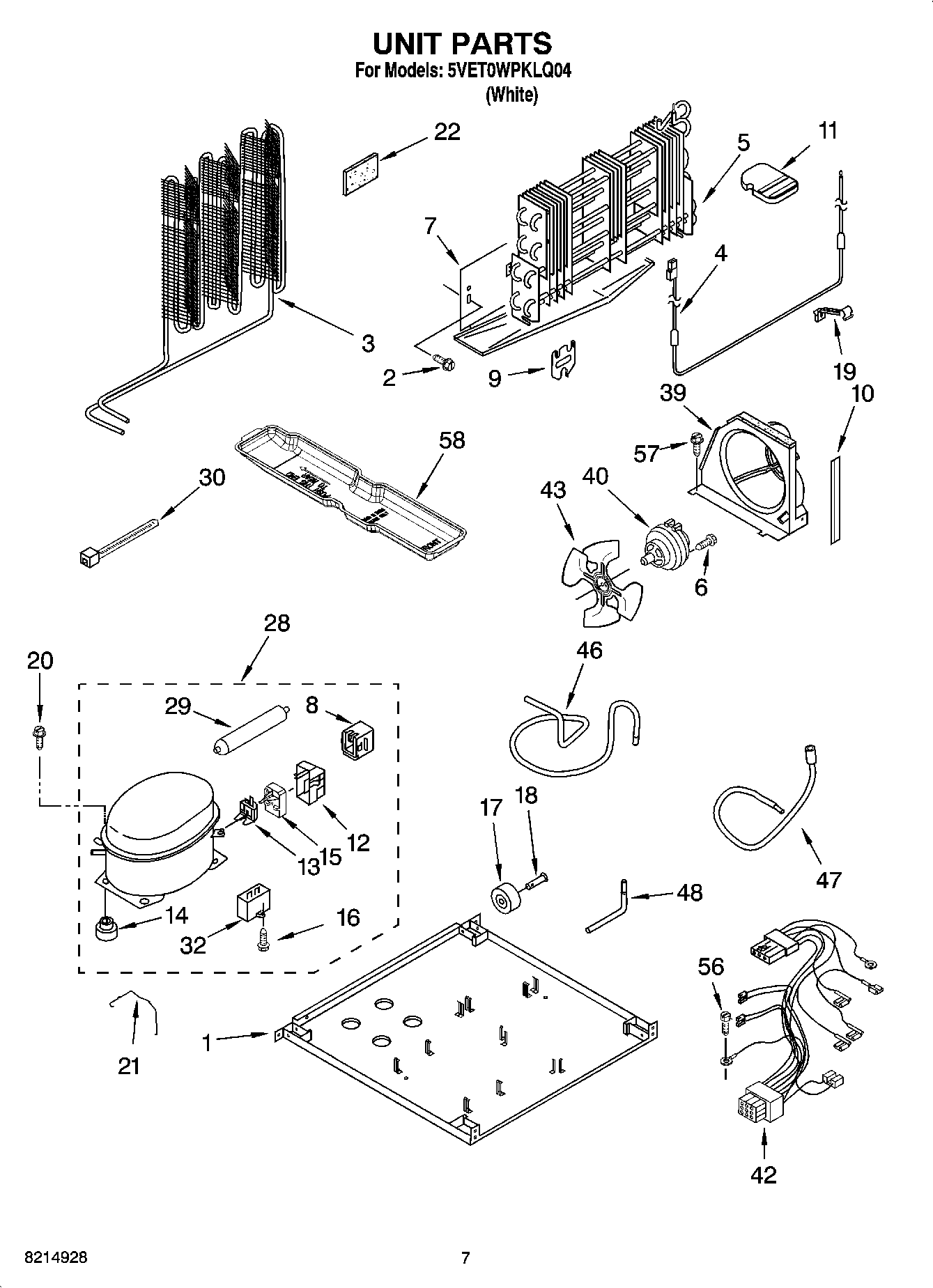

5VET0WPKLQ04 04 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3WP2214960 Whirlpool Refrigerator Condenser
4Heater, Defrost
5Evaporator Assy.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
8WP2262184 Whirlpool Refrigerator Start Relay
9Bracket, Heater
10Extension, Air Baffle
11Support Block
12WP61002138 Whirlpool Refrigerator Terminal Cover
132169410 Whirlpool Refrigerator Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15Start-Device, Combination (Start Relay and Overload for Production Compressor Only)
16W11693756 Whirlpool Screw Assembly
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21Strap, Bale
22W11553819 Whirlpool Refrigerator Insulation
28Compressor (Includes Items 12,13,14, 29 & 32) (Also Order
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
322321245 Whirlpool Refrigerator Capacitor
39Air Baffle
40WP2321271 Whirlpool Refrigerator Condenser Motor
42Wire Assembly, Unit
43W11458267 Whirlpool Refrigerator Fan Blade
462205533 Whirlpool Refrigerator Tube
472214924 Whirlpool Refrigerator Tube
482154109 Whirlpool Refrigerator Tube
56WP489128 Whirlpool Refrigerator Screw
573400518 Whirlpool Oven Foot Mount Screw
58VALVE, ACCESS (5/8“)
58Following Parts Not Illustrated and Optional Parts Not Included
588201826 Whirlpool Refrigerator Evaporator Tray
58VALVE, ACCESS (1/2“)
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58REFRIGERANT CHARGE 4.23 Ozs. (R134A)
