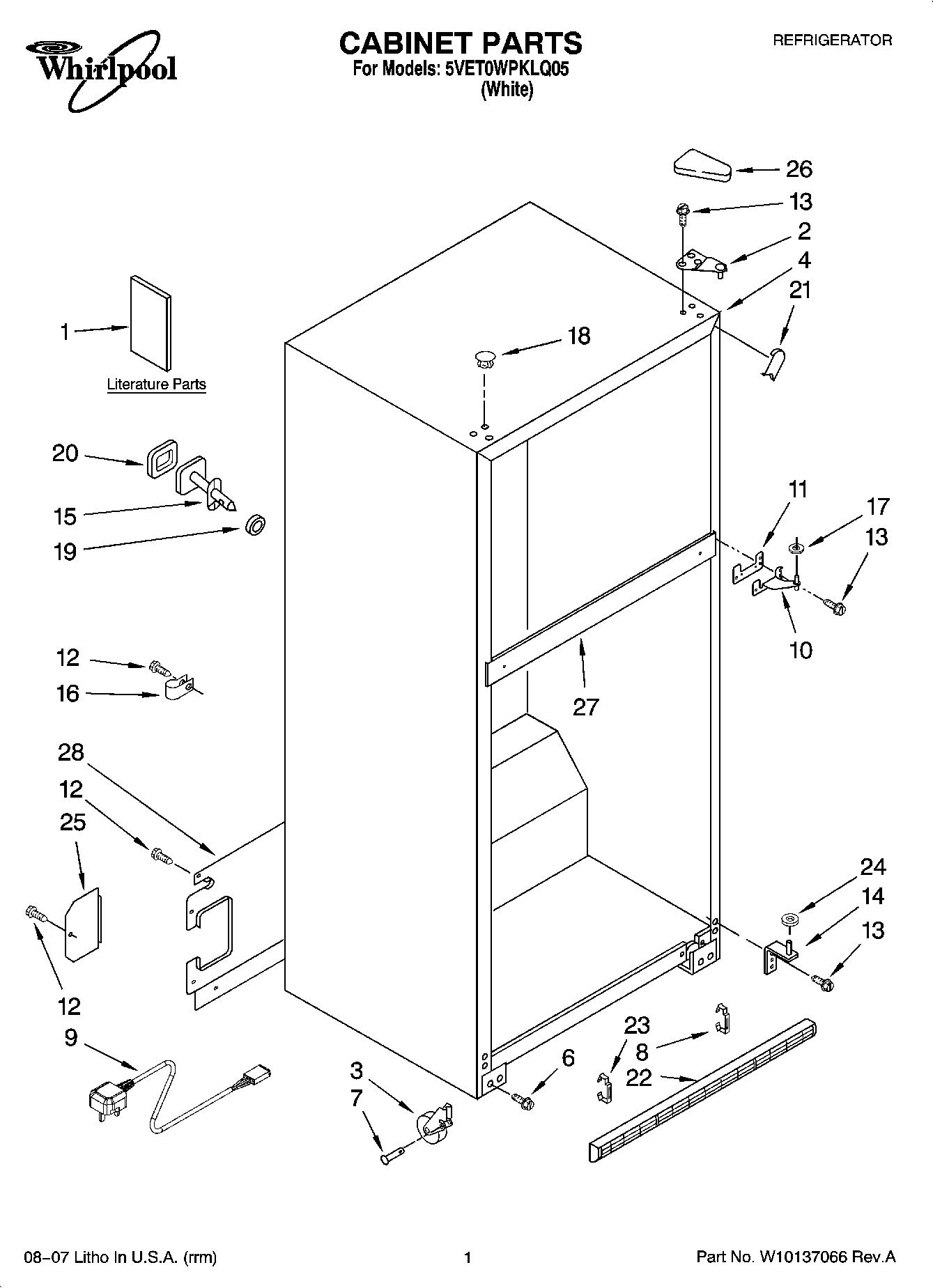

5VET0WPKLQ05 01 – CABINET PARTS

Products

Position	Product
1	WPL 677967
1	Serivce & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet (Not a Serviceable Part) (Water Supply Line)
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	2254385 Whirlpool Refrigerator Clip
9	W10123575 Whirlpool Refrigerator Power Cord
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183854 Whirlpool Refrigerator Shim
12	WP489464 Whirlpool Refrigerator Screw
13	WP489497 Whirlpool Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
15	Fitting, Water Tube (Not Serviced)
16	489348 Whirlpool Refrigerator Tube Clamp
17	WP489467 Whirlpool Hinge Shim
18	WP2151652 Whirlpool Refrigerator Button Plug
19	Seal, Front (Not Serviced)
20	Seal, Rear (Not Serviced)
21	WPW10283959 Whirlpool Refrigerator Filler
22	WP2254386 Whirlpool Refrigerator Grille
23	CLIP, GRILLE
24	WP487576 Whirlpool Washer
25	Cover, Water Valve
26	WP2213360 Whirlpool Refrigerator Cover
27	Rail, Center (Not Serviced)
28	WP2189475 Whirlpool Refrigerator Unit Cover
